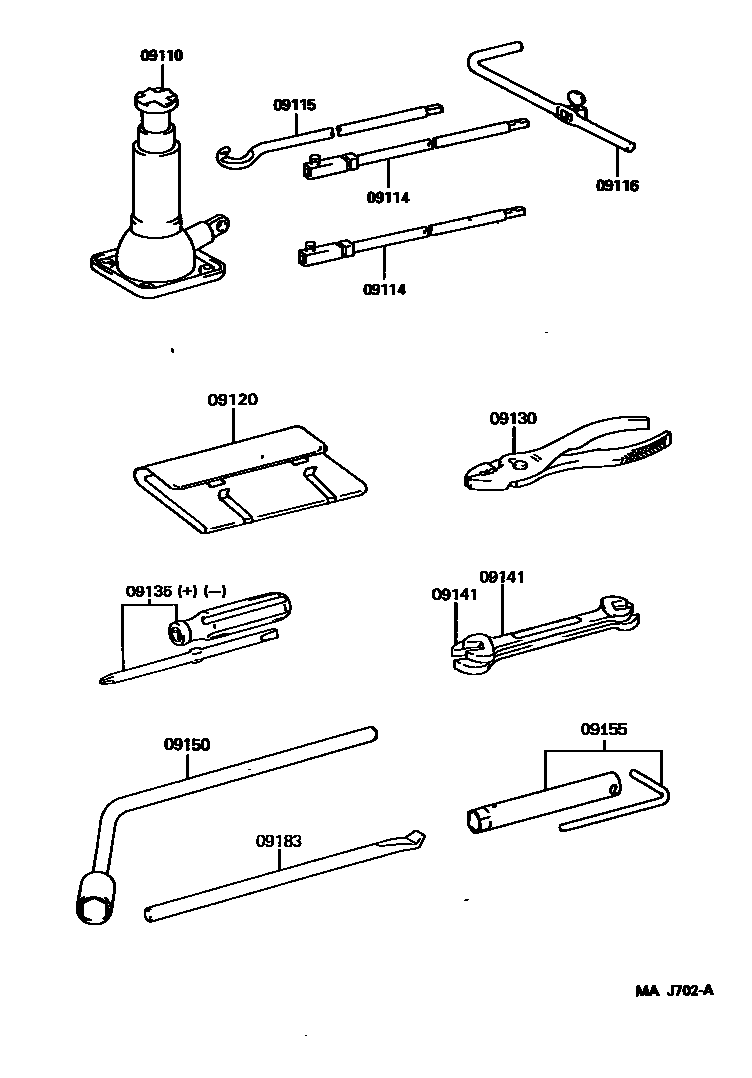

STANDARD TOOL

09110JACK ASSY

main09110-60100iFZJ80199511-199801

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-60070iFZJ80199511-199801

09115ROD SUB-ASSY, JACK HANDLE

main09115-60050iFZJ80199511-199801

09116LEVER, JACK HANDLE

main09116-60010iFZJ80199511-199801

09120BAG, TOOL

main09120-60120iFZJ80199511-199801

09130PLIERS

main09130-50030iFZJ80199511-199801

09135DRIVER, SCREW

main09135-50040iFZJ80199511-199801

09141SPANNER

main09141-50050iFZJ80199511-199801

8 X 10

main09141-50060iFZJ80199511-199801

12 X 14

09150WRENCH, HUB NUT BOX

main09150-60020iFZJ80199511-199801

09155WRENCH, SPARK PLUG

main09155-74010iFZJ80199511-199801

09183WRENCH, WHEEL CAP

main09183-00030iFZJ80199511-199801

11 parts on this diagram · 1 diagram in section
