E
EPC Data

RADIO RECEIVER & AMPLIFIER & CONDENSER

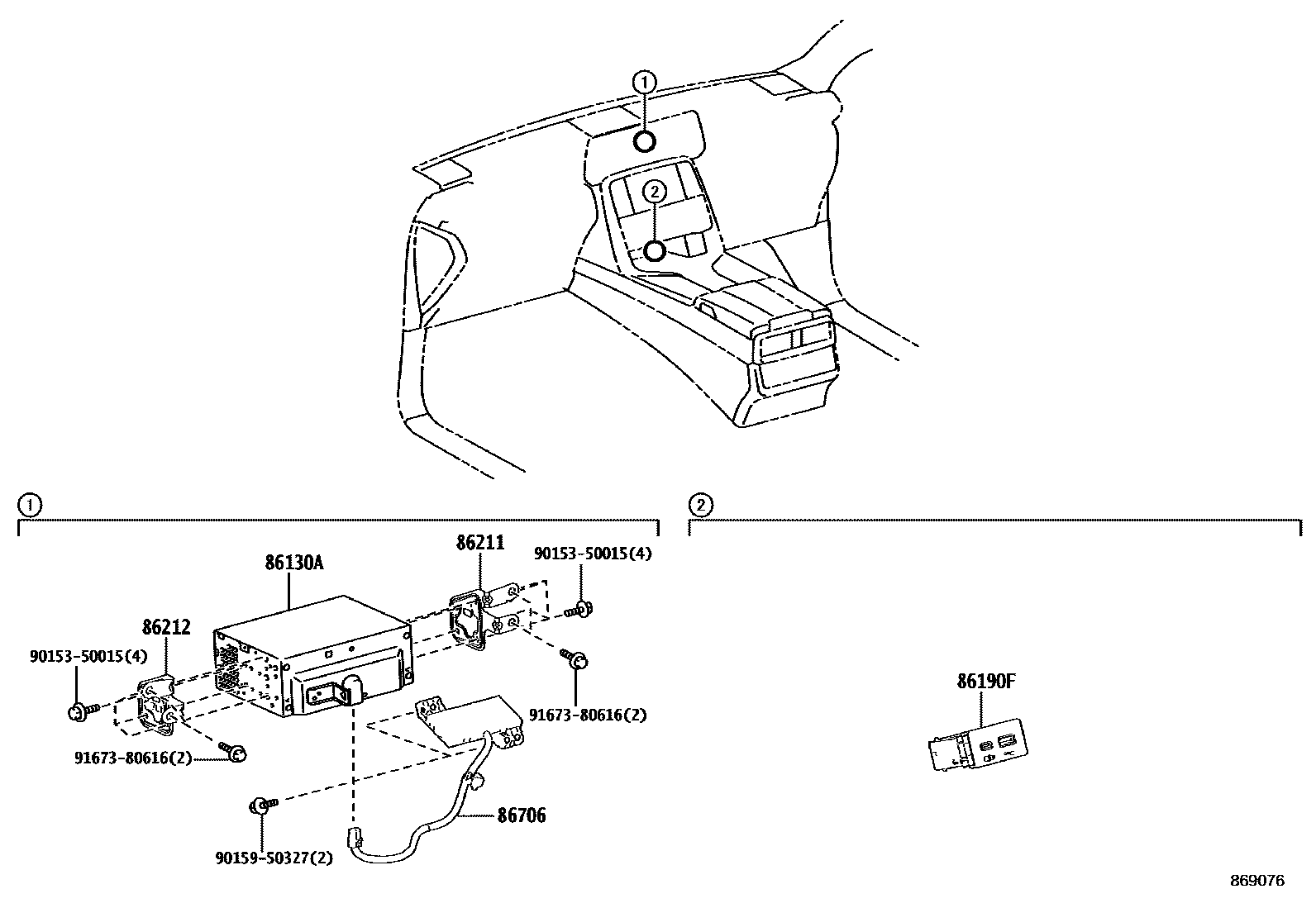

Parts diagram
86130ARECEIVER ASSY, MULTI-MEDIA MODULE
main86130-60872i202211-202411
DENSO TEN
main86130-60V00i202411
DENSO TEN
main86130-60730i202112-202411
DENSO TEN,MEXICO SPEC&WINDSHIELD DEICER-WITHOUT&DATA COMMUNICATION MODULE-WITH(LEXUS ENFORM)
main86130-60880supersedes 86130-60T60i202112-202205
PANASONIC,SOUTH AFRICA SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86130-60881supersedes 86130-60T60i202206-202209
PANASONIC,SOUTH AFRICA SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86130-60882supersedes 86130-60T60i202210-202411
PANASONIC,SOUTH AFRICA SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86130-60L10i202112-202205
PANASONIC,CAMBODIA SPEC; PANASONIC,MONGOLIA SPEC&WINDSHIELD DEICER-WITHOUT&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,PHILIPPINES SPEC; PANASONIC,VIETNAM SPEC&WINDSHIELD DEICER-WITHOUT&DATA COMMUNICATION MODULE-WITHOUT
main86130-60L11i202206-202209
PANASONIC,CAMBODIA SPEC; PANASONIC,MONGOLIA SPEC&WINDSHIELD DEICER-WITHOUT&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,PHILIPPINES SPEC; PANASONIC,VIETNAM SPEC&WINDSHIELD DEICER-WITHOUT&DATA COMMUNICATION MODULE-WITHOUT
main86130-60L12i202210-202411
PANASONIC,CAMBODIA SPEC; PANASONIC,MONGOLIA SPEC&WINDSHIELD DEICER-WITHOUT&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,PHILIPPINES SPEC; PANASONIC,VIETNAM SPEC&WINDSHIELD DEICER-WITHOUT&DATA COMMUNICATION MODULE-WITHOUT
main86130-60Q80i202112-202204
DENSO TEN,INDIA SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86130-60Q81i202205-202208
DENSO TEN,INDIA SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86130-60Q82i202209-202411
DENSO TEN,INDIA SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86130-60R00i202112-202205
PANASONIC; PANASONIC,CHILE SPEC&WINDSHIELD DEICER-WITHOUT&DATA COMMUNICATION MODULE-WITHOUT
main86130-60R01i202206-202209
PANASONIC; PANASONIC,CHILE SPEC&WINDSHIELD DEICER-WITHOUT&DATA COMMUNICATION MODULE-WITHOUT
main86130-60R02i202210-202411
PANASONIC; PANASONIC,CHILE SPEC&WINDSHIELD DEICER-WITHOUT&DATA COMMUNICATION MODULE-WITHOUT
main86130-60R20supersedes 86130-60R02i202112-202205
PANASONIC,EGYPT SPEC; PANASONIC,IRAQ SPEC; PANASONIC,JORDAN SPEC; PANASONIC,KUWAIT SPEC; PANASONIC,LEBANON SPEC; PANASONIC,OMAN SPEC; PANASONIC,QATAR SPEC; PANASONIC,YEMEN SPEC
main86130-60R21i202206-202209
PANASONIC,EGYPT SPEC; PANASONIC,IRAQ SPEC; PANASONIC,JORDAN SPEC; PANASONIC,KUWAIT SPEC; PANASONIC,LEBANON SPEC; PANASONIC,OMAN SPEC; PANASONIC,QATAR SPEC; PANASONIC,YEMEN SPEC
main86130-60R22supersedes 86130-60R02i202210-202411
PANASONIC,EGYPT SPEC; PANASONIC,IRAQ SPEC; PANASONIC,JORDAN SPEC; PANASONIC,LEBANON SPEC; PANASONIC,OMAN SPEC; PANASONIC,QATAR SPEC; PANASONIC,YEMEN SPEC
main86130-60R30supersedes 86130-60R02i202112-202205
PANASONIC,SAUDI ARABIA SPEC; PANASONIC,UAE SPEC&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))
main86130-60R31supersedes 86130-60R02i202206-202209
PANASONIC,SAUDI ARABIA SPEC; PANASONIC,UAE SPEC&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))
main86130-60R32supersedes 86130-60R02i202210-202411
PANASONIC,SAUDI ARABIA SPEC; PANASONIC,UAE SPEC&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))
main86130-60R80i202501
PANASONIC,MEXICO SPEC&WINDSHIELD DEICER-WITHOUT&DATA COMMUNICATION MODULE-WITH(LEXUS ENFORM)
main86130-60S00i202112-202205
PANASONIC,ARGENTINA SPEC; PANASONIC,BOLIVIA SPEC
main86130-60S01i202206-202209
PANASONIC,ARGENTINA SPEC; PANASONIC,BOLIVIA SPEC
main86130-60S02i202210-202411
PANASONIC,ARGENTINA SPEC; PANASONIC,BOLIVIA SPEC
main86130-60S20supersedes 86130-60U30i202112-202203
PANASONIC,ARMENIA SPEC; PANASONIC,AZER, GEORGIA SPEC&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,BELARUS SPEC; PANASONIC,KAZAKHSTAN SPEC; PANASONIC,KYRGYZ SPEC; PANASONIC,MOLDOVA SPEC&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,UKRAINE SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86130-60S21supersedes 86130-60U30i202204-202206
PANASONIC,ARMENIA SPEC; PANASONIC,AZER, GEORGIA SPEC&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,BELARUS SPEC; PANASONIC,KAZAKHSTAN SPEC; PANASONIC,KYRGYZ SPEC; PANASONIC,MOLDOVA SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86130-60S22supersedes 86130-60U30i202210-202411
PANASONIC,ARMENIA SPEC; PANASONIC,AZER, GEORGIA SPEC&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,BELARUS SPEC; PANASONIC,KAZAKHSTAN SPEC; PANASONIC,KYRGYZ SPEC; PANASONIC,MOLDOVA SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86130-60S80i202112-202205
PANASONIC,BRUNEI SPEC&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,INDONESIA SPEC&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,MALAYSIA SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86130-60S81i202206-202209
PANASONIC,BRUNEI SPEC&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,INDONESIA SPEC&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,MALAYSIA SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86130-60S82i202210-202304
PANASONIC,BRUNEI SPEC&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,INDONESIA SPEC&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,MALAYSIA SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86130-60S83i202305-202411
PANASONIC,BRUNEI SPEC&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,INDONESIA SPEC&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,MALAYSIA SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86130-60T40supersedes 86130-60U30i202205-202209
PANASONIC,UKRAINE SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86130-60T41supersedes 86130-60U30i202210-202411
PANASONIC,UKRAINE SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86130-60T70supersedes 86130-60T60i202501
PANASONIC,SOUTH AFRICA SPEC; PANASONIC,SOUTH AFRICA SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86130-60T80i202411
PANASONIC,CAMBODIA SPEC; PANASONIC,MONGOLIA SPEC&WINDSHIELD DEICER-WITHOUT&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,PHILIPPINES SPEC; PANASONIC,VIETNAM SPEC&WINDSHIELD DEICER-WITHOUT&DATA COMMUNICATION MODULE-WITHOUT
main86130-60U00i202411
PANASONIC; PANASONIC,CHILE SPEC&WINDSHIELD DEICER-WITHOUT&DATA COMMUNICATION MODULE-WITHOUT
main86130-60U10supersedes 86130-60U00i202411
PANASONIC,EGYPT SPEC; PANASONIC,IRAQ SPEC; PANASONIC,JORDAN SPEC; PANASONIC,LEBANON SPEC; PANASONIC,OMAN SPEC; PANASONIC,QATAR SPEC; PANASONIC,YEMEN SPEC
main86130-60U20supersedes 86130-60U00i202411
PANASONIC,BAHRAIN SPEC; PANASONIC,KUWAIT SPEC; PANASONIC,SAUDI ARABIA SPEC; PANASONIC,UAE SPEC&DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))
main86130-60U40i202501
PANASONIC,ARGENTINA SPEC; PANASONIC,BOLIVIA SPEC
main86130-60U50supersedes 86130-60U30i202411
PANASONIC,ARMENIA SPEC; PANASONIC,AZERBAIJAN, GEORGEA SPEC&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,BELARUS SPEC; PANASONIC,KAZAKHSTAN SPEC; PANASONIC,KYRGYZ SPEC; PANASONIC,MOLDOVA SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86130-60U60i202411
PANASONIC; PANASONIC,BRUNEI SPEC&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,INDONESIA SPEC&DATA COMMUNICATION MODULE-WITHOUT; PANASONIC,THAI SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86130-60U70supersedes 86130-60U30i202411
PANASONIC,UKRAINE SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86130-60U90i202411
DENSO TEN,INDIA SPEC&DATA COMMUNICATION MODULE-WITH(TELEMATICS(INDIA))
86190FADAPTER ASSY, STEREO JACK
main86190-48130i202411
main86190-78020i202112-202411
86211BRACKET, RADIO, NO.1
main86211-60640i202411
86212BRACKET, RADIO, NO.2
main86212-60630i202112-202411
86706BASE SUB-ASSY, TRANSCEIVER ANTENNA
main86706-60010supersedes 86706-60020i202411
BRUNEI SPEC&DATA COMMUNICATION MODULE-WITHOUT; INDONESIA SPEC&DATA COMMUNICATION MODULE-WITHOUT; THAI SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86706-60020i202411
9015350015
main90153-50015
9015950327
main90159-50327
9167380616
main91673-80616

8 parts on this diagram · 4 diagrams in section

RADIO RECEIVER & AMPLIFIER & CONDENSER — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
