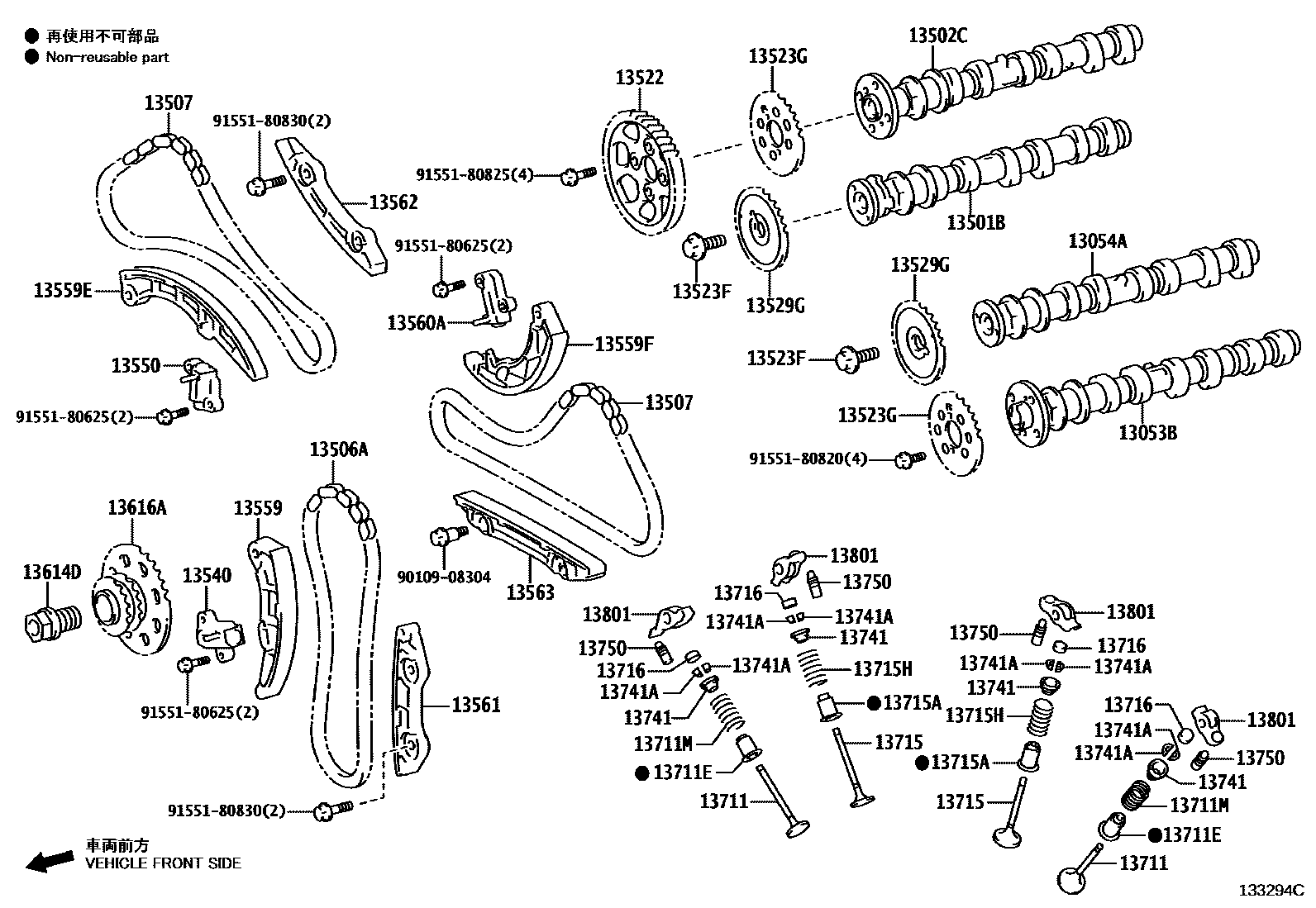

CAMSHAFT & VALVE
13053BCAMSHAFT SUB-ASSY, INTAKE, LH
13054ACAMSHAFT SUB-ASSY, EXHAUST, LH
13501BCAMSHAFT SUB-ASSY, INTAKE, RH
13502CCAMSHAFT SUB-ASSY, EXHAUST, RH
13506ACHAIN SUB-ASSY, NO.1
13507CHAIN SUB-ASSY, NO.2
13522GEAR, PUMP DRIVE SHAFT
13523FBOLT(FOR CAMSHAFT TIMING GEAR)
13523GSPROCKET, CAMSHAFT TIMING
13529GSPROCKET ASSY, CAMSHAFT TIMING, NO.2
13540TENSIONER ASSY, CHAIN, NO.1
13550TENSIONER ASSY, CHAIN, NO.2
13559SLIPPER, CHAIN TENSIONER
13559ESLIPPER, CHAIN TENSIONER, RH
13559FSLIPPER, CHAIN TENSIONER, LH
13560ATENSIONER ASSY, CHAIN, NO.3
13561DAMPER, CHAIN VIBRATION, NO.1
13562DAMPER, CHAIN VIBRATION, NO.2
13563DAMPER, CHAIN VIBRATION, NO.3
13614DCOUPLING, SUPPLY PUMP DRIVE
13616ASPROCKET, SUPPLY PUMP SHAFT
13711VALVE, INTAKE
13711ESEAL, INTAKE VALVE STEM OIL
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
13716CAP, VALVE STEM
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
9010908304
main90109-08304
9155180625
main91551-80625
9155180820
main91551-80820
9155180825
main91551-80825
9155180830
main91551-80830
37 parts on this diagram · 2 diagrams in section
