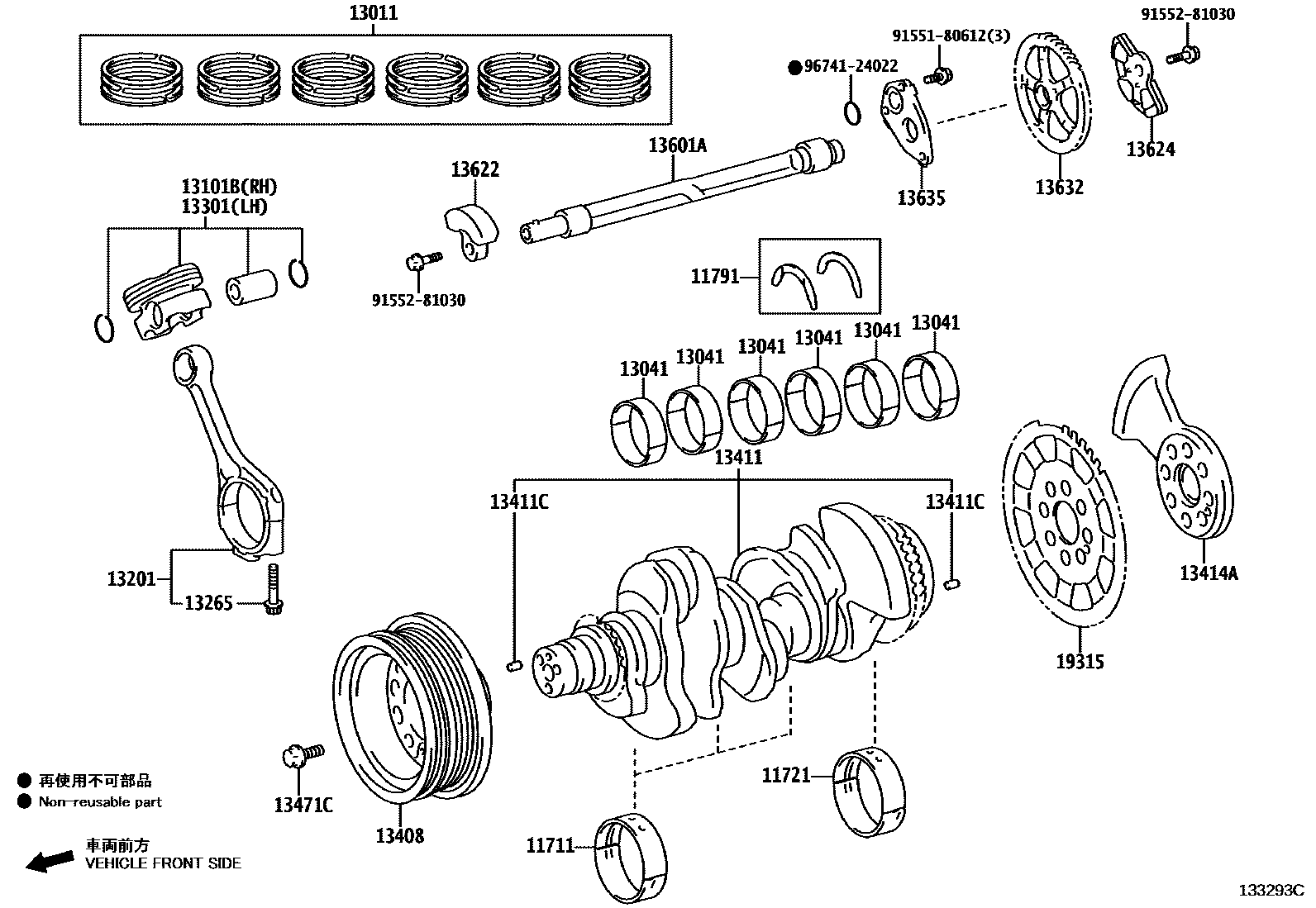

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 5,NO.2,REFER R/M
MARK UPPER 1 LOWER 2,NO.2,REFER R/M
MARK UPPER 2 LOWER 3,NO.2,REFER R/M
MARK UPPER 3 LOWER 4,NO.2,REFER R/M
MARK UPPER 4 LOWER 5,NO.2,REFER R/M
MARK UPPER 1 LOWER 1,NO.3,REFER R/M
MARK UPPER 2 LOWER 2,NO.3,REFER R/M
MARK UPPER 3 LOWER 3,NO.3,REFER R/M
MARK UPPER 4 LOWER 4,NO.3,REFER R/M
MARK UPPER 5 LOWER 5,NO.3,REFER R/M
MARK UPPER 1 LOWER 2,NO.3,REFER R/M
MARK UPPER 2 LOWER 3,NO.3,REFER R/M
MARK UPPER 3 LOWER 4,NO.3,REFER R/M
MARK UPPER 4 LOWER 5,NO.3,REFER R/M
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
MARK 5,NO.1,REFER R/M
MARK UPPER 1 LOWER 2,NO.1,REFER R/M
MARK UPPER 2 LOWER 3,NO.1,REFER R/M
MARK UPPER 3 LOWER 4,NO.1,REFER R/M
MARK UPPER 4 LOWER 5,NO.1,REFER R/M
11721BEARING, CRANKSHAFT, NO.2
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
13011RING SET, PISTON
STD
STD
13041BEARING, CONNECTING ROD
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
13101BPISTON SUB-ASSY, W/PIN, RH
STD
STD
13201ROD SUB-ASSY, CONNECTING
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
13265BOLT, CONNECTING ROD
13301PISTON SUB-ASSY, W/PIN, LH
STD
STD
13408PULLEY SUB-ASSY, CRANKSHAFT
WITHOUT(COLD AREA SPEC)&HEATER-*673(2LAYER BLOWER)
13411CRANKSHAFT
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
13414AWEIGHT, CRANKSHAFT BALANCER, REAR
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13601ABALANCESHAFT SUB-ASSY, NO.1
13622BALANCESHAFT, NO.2
13624WEIGHT, BALANCESHAFT, REAR
13632GEAR, BALANCESHAFT DRIVEN, NO.1
13635SPACER, BALANCESHAFT THRUST
19315PLATE, CRANK ANGLE SENSOR, NO.1
9155180612
main91551-80612
9155281030
main91552-81030
9674124022
main96741-24022
24 parts on this diagram · 3 diagrams in section
