Toyota LEXUS LX SERIES — VENTILATION HOSE

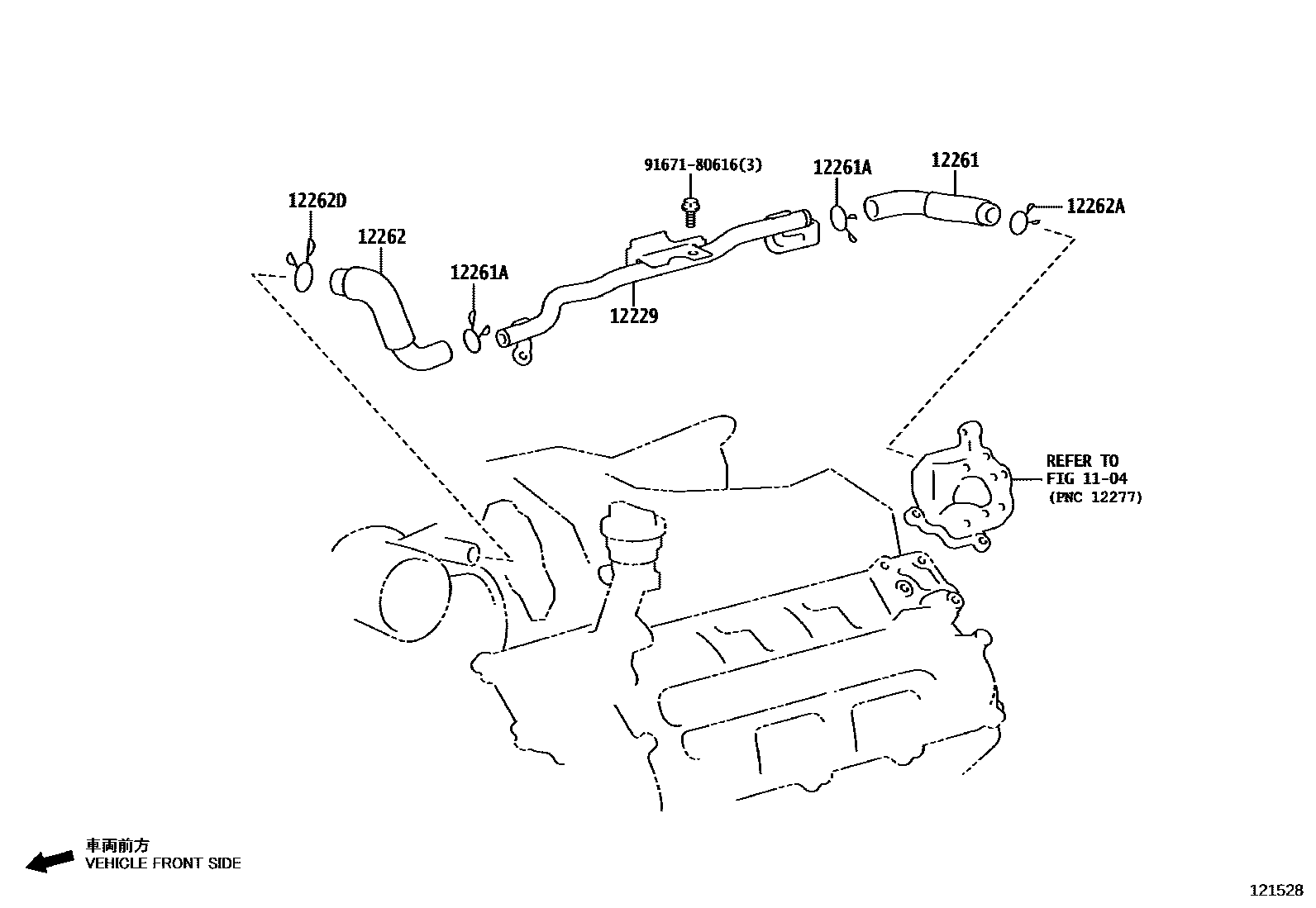

Parts diagram

1104CYLINDER HEAD

→ Go to FIG 11-04

12229PIPE, VENTILATION

12261HOSE, VENTILATION

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

12262HOSE, VENTILATION, NO.2

12262ACLIP(FOR VENTILATION HOSE NO.2)

12262DCLIP(FOR VENTILATION HOSE NO.2)

9167180616

8 parts on this diagram · 2 diagrams in section

VENTILATION HOSE for Toyota LEXUS LX SERIES

This section contains 16 genuine Toyota parts for the VENTILATION HOSE system of the Toyota LEXUS LX SERIES. Key components include: CYLINDER HEAD, VALVE SUB-ASSY, VENTILATION, CASE, VENTILATION, NO.1, PIPE, VENTILATION, HOSE, VENTILATION.
