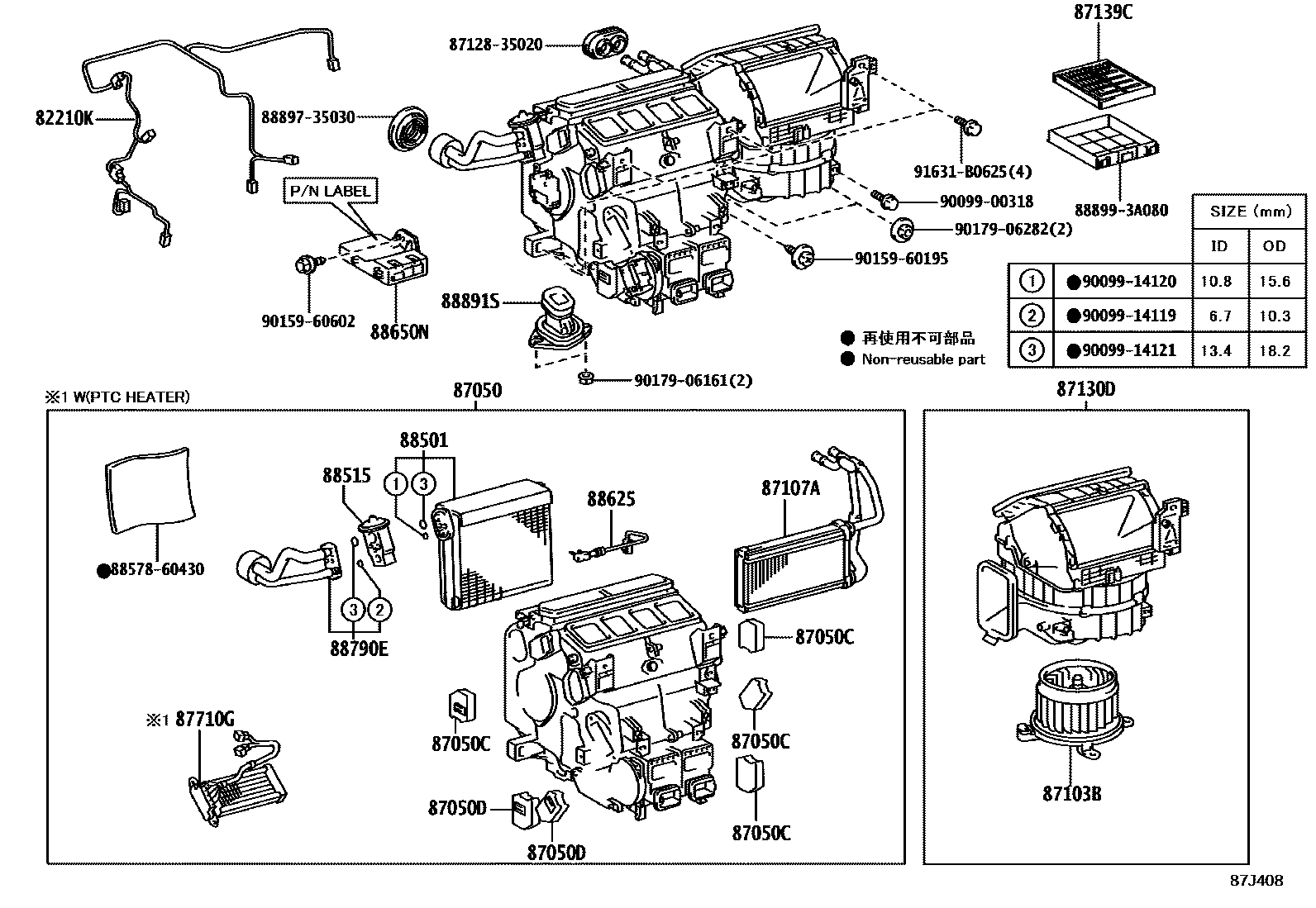

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT,W/O(COOL BOX) 0002 1FRONT,W(COOL BOX) 0003 1FRONT,W/O(COOL BOX) 0004 1FRONT,W(COOL BOX) 0005 1FRONT,W/O(COOL BOX) 0006 1FRONT,W(COOL BOX) 0007 1REAR 0008 1COOL BOX

82210KHARNESS ASSY, AIR CONDITIONER

main82212-60100iURJ200200709-201201

main82212-60101iURJ200201301-201508

main82212-60200iURJ200201508-202006

87050RADIATOR ASSY, AIR CONDITIONER

main87050-60470supersedes 87050-60500iURJ200200709-201201

WITHOUT(COLD AREA SPEC)&WITH(COOL BOX)

main87050-60471supersedes 87050-60501iURJ200201301-201312

WITHOUT(COLD AREA SPEC)&WITH(COOL BOX)

main87050-60480supersedes 87050-60500iURJ200200709-201201

WITHOUT(COLD AREA SPEC)

main87050-60481supersedes 87050-60501iURJ200201301-201312

WITHOUT(COLD AREA SPEC)

main87050-60490supersedes 87050-60500iURJ200200709-201201

WITH(COOL BOX)

main87050-60491supersedes 87050-60501iURJ200201301-201312

WITH(COOL BOX)

main87050-60860supersedes 87050-60870iURJ200201312-201508

WITH(COOL BOX); WITHOUT(COLD AREA SPEC)&WITH(COOL BOX)

main87050-60A80supersedes 87050-60A90iURJ200201508-201708

WITH(COOL BOX); WITHOUT(COLD AREA SPEC)&WITH(COOL BOX)

main87050-60A90iURJ200201708-202006

WITHOUT(COLD AREA SPEC)&WITHOUT(COOL BOX); WITHOUT(COOL BOX)

main87050-60M20supersedes 87050-60M10iURJ200202008-202104

WITHOUT(COOL BOX)

main87050-60N00supersedes 87050-60M10iURJ200202008-202104

MEXICO SPEC

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-50550×6iURJ200202008-202104

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-60260×2iURJ200200709-201201

main87106-60270×2iURJ200201301-201508

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-60390iURJ200200709-201007

main87103-60480iURJ200201007-201201

main87103-60481iURJ200201412-201508

main87103-60560iURJ200202008-202104

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-60410iURJ200200709-201201

main87107-60411iURJ200201301-201508

87130DBLOWER ASSY

main87130-60670iURJ200201508-202006

main87130-60530supersedes 87130-60534iURJ200200808-200809

WITH(COOL BOX)

87139CFILTER, CLEAN AIR

main87139-30040iURJ200200709-201201

MICRO DUST FILTER, MICRO DUST FILTER

main87139-50060iURJ200201201-201204

DEODORANT FILTER,DEODORANT FILTER

main87139-50100iURJ200201508-202104

main87139-52040iURJ200201508-202104

POLLEN FILTER,OE PART

main87139-76010iURJ200201508-202104

MICRO DUST FILTER,OE PART

87710GQUICK HEATER ASSY

main87710-50020iURJ200200709-201201

main87710-60060iURJ200201508-202104

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-60360iURJ200200709-200710

main88501-60361iURJ200200711-201102

main88501-60362iURJ200201201-201508

main88501-60600supersedes 88501-60560iURJ200202008-202104

MEXICO SPEC

88515VALVE, COOLER EXPANSION

main88515-50190iURJ200200709-201201

main88515-60270iURJ200202008-202104

WITHOUT(COOL BOX)

88625THERMISTOR, COOLER, NO.1

main88620-60020iURJ200202008-202104

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-60Q10iURJ200201508-201612

main88650-60Q11iURJ200201701-201908

main88650-60Q12iURJ200201908-202008

main88650-60Z60iURJ200202008-202104

main88650-60D00supersedes 88650-60J42iURJ200200709-200711

WITHOUT(COLD AREA SPEC)

main88650-60D90supersedes 88650-60J42iURJ200200709-200711

WITHOUT(COLD AREA SPEC)&WINDSHIELD DEICER-WITHOUT

main88650-60E30supersedes 88650-60E50iURJ200200709-200907

WINDSHIELD DEICER-WITHOUT

main88650-60E32supersedes 88650-60E52iURJ200200907-201201

WINDSHIELD DEICER-WITHOUT

main88650-60E40supersedes 88650-60E50iURJ200200711-200907

WITHOUT(COLD AREA SPEC)

main88650-60E42supersedes 88650-60E52iURJ200200907-201201

WITHOUT(COLD AREA SPEC)

main88650-60E70supersedes 88650-60E50iURJ200200711-200907

WITHOUT(COLD AREA SPEC)&WINDSHIELD DEICER-WITHOUT

main88650-60E72supersedes 88650-60E52iURJ200200907-201201

WITHOUT(COLD AREA SPEC)&WINDSHIELD DEICER-WITHOUT

main88650-60J20supersedes 88650-60J42iURJ200201201-201208

WITHOUT(COLD AREA SPEC)&WINDSHIELD DEICER-WITHOUT,P/N LABEL=8865060J20

main88650-60J21supersedes 88650-60J42iURJ200201208-201301

WITHOUT(COLD AREA SPEC)&WINDSHIELD DEICER-WITHOUT,P/N LABEL=8865060J21

main88650-60J22supersedes 88650-60J42iURJ200201301-201508

WITHOUT(COLD AREA SPEC)&WINDSHIELD DEICER-WITHOUT

main88650-60J30supersedes 88650-60J42iURJ200201201-201301

WITHOUT(COLD AREA SPEC),P/N LABEL=8865060J30

main88650-60J31supersedes 88650-60J42iURJ200201301-201307

WITHOUT(COLD AREA SPEC),P/N LABEL=8865060J31

main88650-60J32supersedes 88650-60J42iURJ200201308-201508

WITHOUT(COLD AREA SPEC)

main88650-60J50supersedes 88650-60J42iURJ200201201-201301

WINDSHIELD DEICER-WITHOUT,P/N LABEL=8865060J50

main88650-60J51supersedes 88650-60J42iURJ200201301-201508

WINDSHIELD DEICER-WITHOUT,P/N LABEL=8865060J51

88790ETUBE & ACCESSORY ASSY, AIRCONDITIONER

main88710-60A00supersedes 88710-60M80iURJ200202008-202104

WITHOUT(COOL BOX)

main88710-60A10supersedes 88710-60A00iURJ200201201-201508

WITH(COOL BOX); WITHOUT(COLD AREA SPEC)&WITH(COOL BOX)

main88710-60A11iURJ200201508-201708

WITH(COOL BOX); WITHOUT(COLD AREA SPEC)&WITH(COOL BOX)

88891SCOVER, COOLER, NO.1

main88891-60090iURJ200200709-201201

8712835020GROMMET, HEATER

main87128-35020

8857860430PAKING, COOLER AIR DUCT

main88578-60430

8889735030VALVE, COOLER MAGNET

main88897-35030

888993A080COVER, EVAPORATOR

main88899-3A080

9009900318

main90099-00318

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9015960195

main90159-60195

9015960602

main90159-60602

9017906161

main90179-06161

9017906282

main90179-06282

91631B0625

main91631-B0625

28 parts on this diagram · 8 diagrams in section
