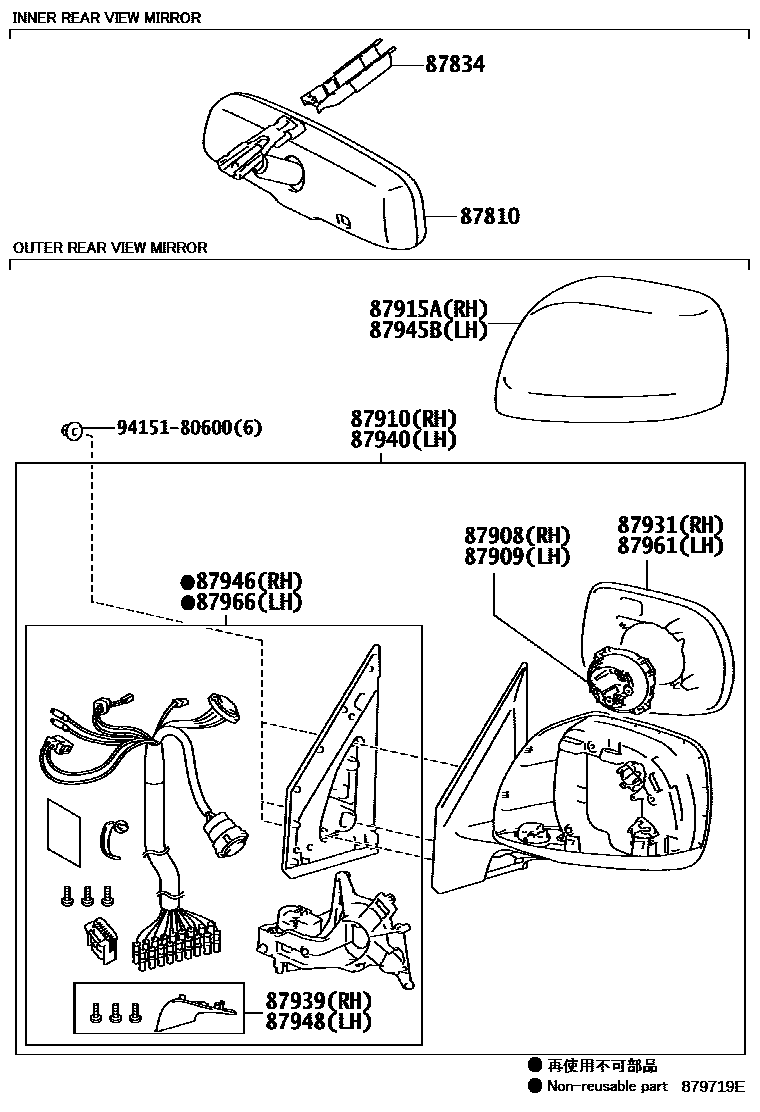

MIRROR
87810MIRROR ASSY, INNER REAR VIEW
PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.,BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE)
NO PAINT REQ.,LANE CHANGE ASSIST-WITH & WITH(REAR CROSS TRAFFIC ALERT)
NO PAINT REQ.,LANE CHANGE ASSIST-WITH & WITH(REAR CROSS TRAFFIC ALERT)
LANE CHANGE ASSIST-WITH & WITH(REAR CROSS TRAFFIC ALERT)
87915ACOVER, OUTER MIRROR, RH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
DK. RED M.M.,3Q3
BEIGE M.M.,4R3
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202; OUTER REAR VIEW MIRROR COVER(ACCESSORY),BLACK,040 ,070 ,1F7 ,1G3 ,202 ,218 ,220 ,3Q3 ,4R3 ,8P8
ATTITUDE BLACK MC.,218
DK. RED M.M.,3Q3
BEIGE M.M.,4R3
COPPER BROWN MC.,4S6
GREEN M.M.,6V2
LT.BLUE M.M.,8S1
DARK BLUE MC.,8P8
URBAN STYLE/TRD-PACKAGE(20INCH)&OUTSIDE REAR VIEW MIRROR-DOP(*273&*RIF&*MIH&*AGM&MEMORY&CAMERA),BLACK,040 ,070 ,1F7 ,1G3 ,202 ,218 ,220 ,3Q3 ,4R3 ,8P8
URBAN STYLE/TRD-PACKAGE(20INCH)&OUTSIDE REAR VIEW MIRROR-DOP(*273&*RIF&*MIH&*AGM&MEMORY&CAMERA),ATTITUDE BLACK MC.,218
URBAN STYLE/TRD-PACKAGE(20INCH)&OUTSIDE REAR VIEW MIRROR-DOP(*273&*RIF&*MIH&*AGM&MEMORY&CAMERA),SPARKLING BLACK PEARL CS.,220
87931OUTER MIRROR, RH
LANE CHANGE ASSIST-WITH & WITH(REAR CROSS TRAFFIC ALERT)
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.,BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE)
NO PAINT REQ.,LANE CHANGE ASSIST-WITH & WITH(REAR CROSS TRAFFIC ALERT)
NO PAINT REQ.,LANE CHANGE ASSIST-WITH & WITH(REAR CROSS TRAFFIC ALERT)
URBAN STYLE/TRD-PACKAGE(20INCH)&OUTSIDE REAR VIEW MIRROR-DOP(*273&*RIF&*MIH&*AGM&MEMORY&CAMERA)&LANE CHANGE ASSIST-WITH & WITH(REAR CROSS TRAFFIC ALERT)
87945BCOVER, OUTER MIRROR, LH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
DK. RED M.M.,3Q3
BEIGE M.M.,4R3
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202; OUTER REAR VIEW MIRROR COVER(ACCESSORY),BLACK,040 ,070 ,1F7 ,1G3 ,202 ,218 ,220 ,3Q3 ,4R3 ,8P8
ATTITUDE BLACK MC.,218
DK. RED M.M.,3Q3
BEIGE M.M.,4R3
COPPER BROWN MC.,4S6
GREEN M.M.,6V2
LT.BLUE M.M.,8S1
DARK BLUE MC.,8P8
URBAN STYLE/TRD-PACKAGE(20INCH)&OUTSIDE REAR VIEW MIRROR-DOP(*273&*RIF&*MIH&*AGM&MEMORY&CAMERA),BLACK,040 ,070 ,1F7 ,1G3 ,202 ,218 ,220 ,3Q3 ,4R3 ,8P8
URBAN STYLE/TRD-PACKAGE(20INCH)&OUTSIDE REAR VIEW MIRROR-DOP(*273&*RIF&*MIH&*AGM&MEMORY&CAMERA),ATTITUDE BLACK MC.,218
URBAN STYLE/TRD-PACKAGE(20INCH)&OUTSIDE REAR VIEW MIRROR-DOP(*273&*RIF&*MIH&*AGM&MEMORY&CAMERA),SPARKLING BLACK PEARL CS.,220
87946RETRACTOR, OUTER MIRROR, RH
BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE)
LANE CHANGE ASSIST-WITH & WITH(REAR CROSS TRAFFIC ALERT)
87948COVER, OUTER MIRROR HOLE, LH
87961MIRROR OUTER, LH
URBAN STYLE/TRD-PACKAGE(20INCH)&OUTSIDE REAR VIEW MIRROR-DOP(*273&*RIF&*MIH&*AGM&MEMORY&CAMERA)&LANE CHANGE ASSIST-WITH & WITH(REAR CROSS TRAFFIC ALERT)
87966RETRACTOR, OUTER MIRROR, LH
BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE)
URBAN STYLE/TRD-PACKAGE(20INCH)&OUTSIDE REAR VIEW MIRROR-DOP(*273&*RIF&*MIH&*AGM&MEMORY&CAMERA)&LANE CHANGE ASSIST-WITH & WITH(REAR CROSS TRAFFIC ALERT)
9415180600
main94151-80600
15 parts on this diagram · 2 diagrams in section
