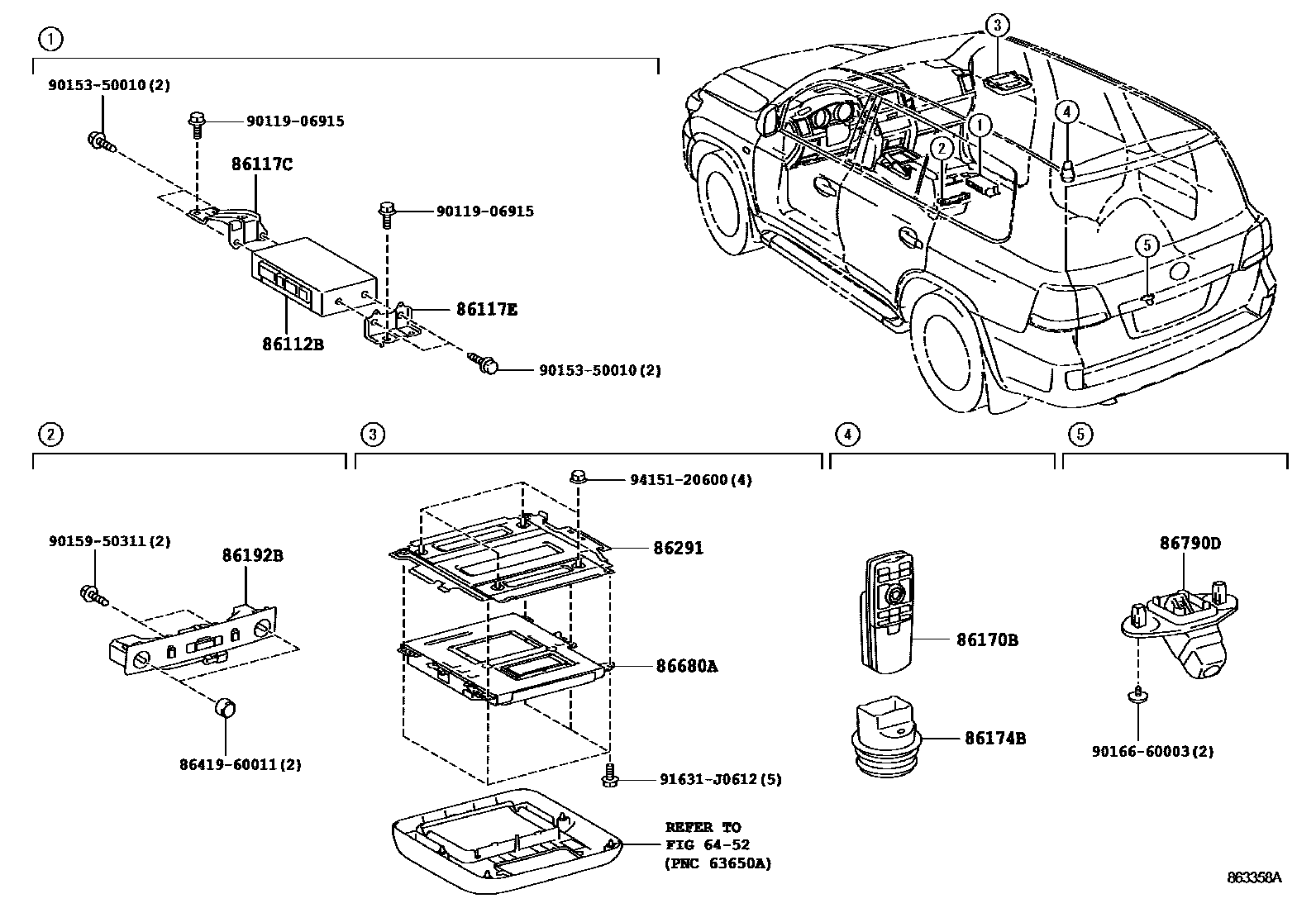

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1 0003 1 0004 1 0005 1REAR MONITOR DISPLAY

6452ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-52

86112BSELECTOR, MULTI-DISPLAY

86117CBRACKET, MULTI-DISPLAY CONTROLLER, NO.2

main86117-60160iURJ200201608-201708

86117EBRACKET, MULTI-DISPLAY CONTROLLER, NO.3

main86118-60160iURJ200201608-201708

86170BSWITCH & VOLUME ASSY, TELEVISION

main86170-60150iURJ200201608-201708

86174BCASE, SWITCH & VOLUME

86192BTERMINAL, HEADPHONE

main86192-60100iURJ200201608-201708

86291BRACKET, TELEVISION

main86117-60080

main86117-60120

86680ADISPLAY ASSY, TELEVISION

main86680-60370-C0iURJ200201608-201708

PANASONIC,BLACK,TRIM0#,2#,4#

86790DCAMERA ASSY, TELEVISION, RR

main867B0-60040iURJ200201508-201606

main867B0-60041iURJ200201606-201707

main867B0-60042iURJ200201707-202104

8641960011KNOB, AUDIO MODULE, NO.1

main86419-60011

9011906915

main90119-06915

9015350010

main90153-50010

9015950311

main90159-50311

9016660003

main90166-60003

91631J0612

main91631-J0612

9415120600

main94151-20600

17 parts on this diagram · 5 diagrams in section
