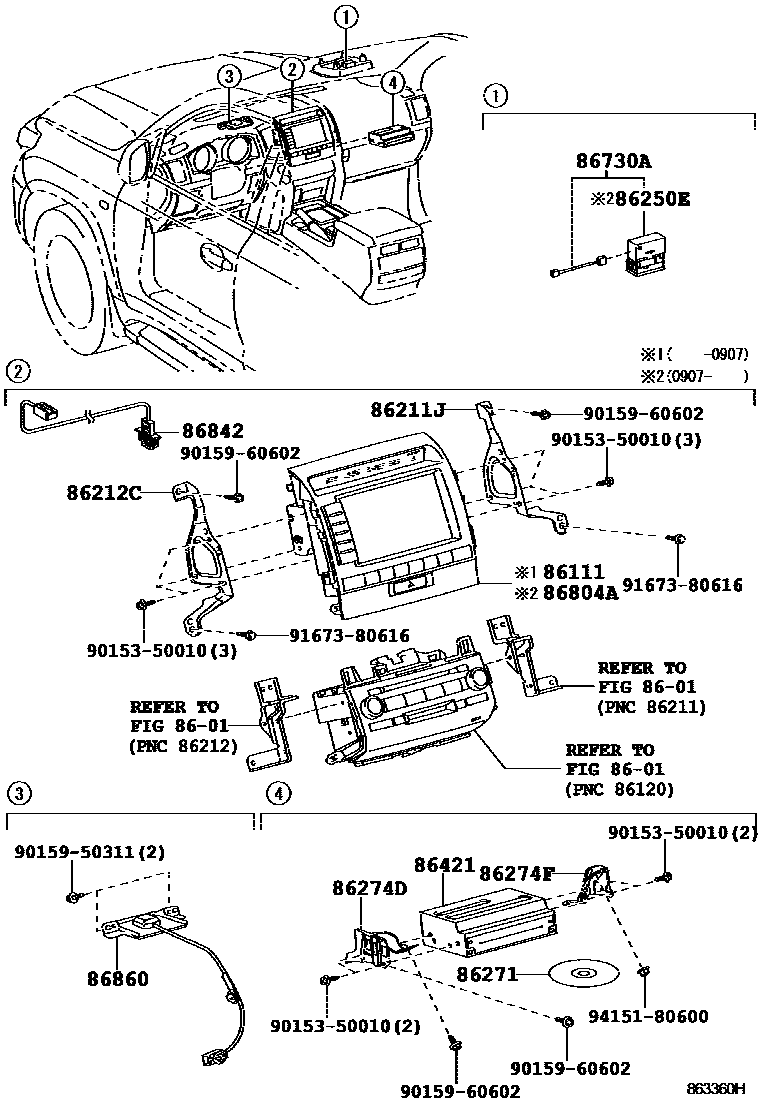

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86111MULTI-DISPLAY

main86111-60400iURJ200200709-200907

FUJITSU TEN,AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-60220iURJ200200709-200907

AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER

main86211-60350iURJ200201201-201508

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-60220iURJ200200709-200907

AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER

86250EMICROPHONE ASSY, AMPLIFIER

main86250-52030iURJ200200907-201201

86271DISC, DISC PLAYER

main86271-60420iURJ200201508-201606

main86271-60421iURJ200201607-201707

main86271-60422iURJ200201708-201807

main86271-60423iURJ200201808-201907

main86271-60424iURJ200201908-202006

main86271-60425iURJ200202007-202104

main86271-53022iURJ200200709-200807

AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER

main86271-53023iURJ200200808-200907

AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER

main86271-60090iURJ200200907-200908

EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)

main86271-60091iURJ200200908-201007

EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)

main86271-73012iURJ200201008-201106

EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)

main86271-73013iURJ200201107-201201

EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)

86274DBRACKET, DISC PLAYER

main86274-60320iURJ200200907-201201

EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)

86274FBRACKET, DISC PLAYER, NO.2

main86274-60310iURJ200200907-201201

EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)

86421BOARD, NAVIGATION MODULE

main86421-48010iURJ200200907-201201

EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)

main86421-60040iURJ200200709-200907

AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER

86730AMICROPHONE ASSY, TELEPHONE

main86730-48040iURJ200201508-202104

main86730-50060iURJ200200709-200907

EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)

86804ASUB-ASSY, NAVIGATION COMPUTER

main86431-60250iURJ200200907-201201

EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)

86842WIRE, NAVIGATION, NO.1

main86842-60500iURJ200200907-201201

REAR SEAT ENTERTAINMENT-WITH&EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)

86860ANTENNA ASSY, NAVIGATION

main86860-60340supersedes 868A0-60010iURJ200201508-201708

main86860-60120iURJ200200709-200907

AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER

main86860-60200iURJ200200907-201201

EMV & NAVIGATION SYSTEM-WITH(DVD GPS VOICE BLUETOOTH)

main86860-60230iURJ200201201-201401

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)

main86860-60300iURJ200201402-201508

EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)

9015350010

main90153-50010

9015950311

main90159-50311

9015960602

main90159-60602

9167380616

main91673-80616

9415180600

main94151-80600

18 parts on this diagram · 3 diagrams in section
