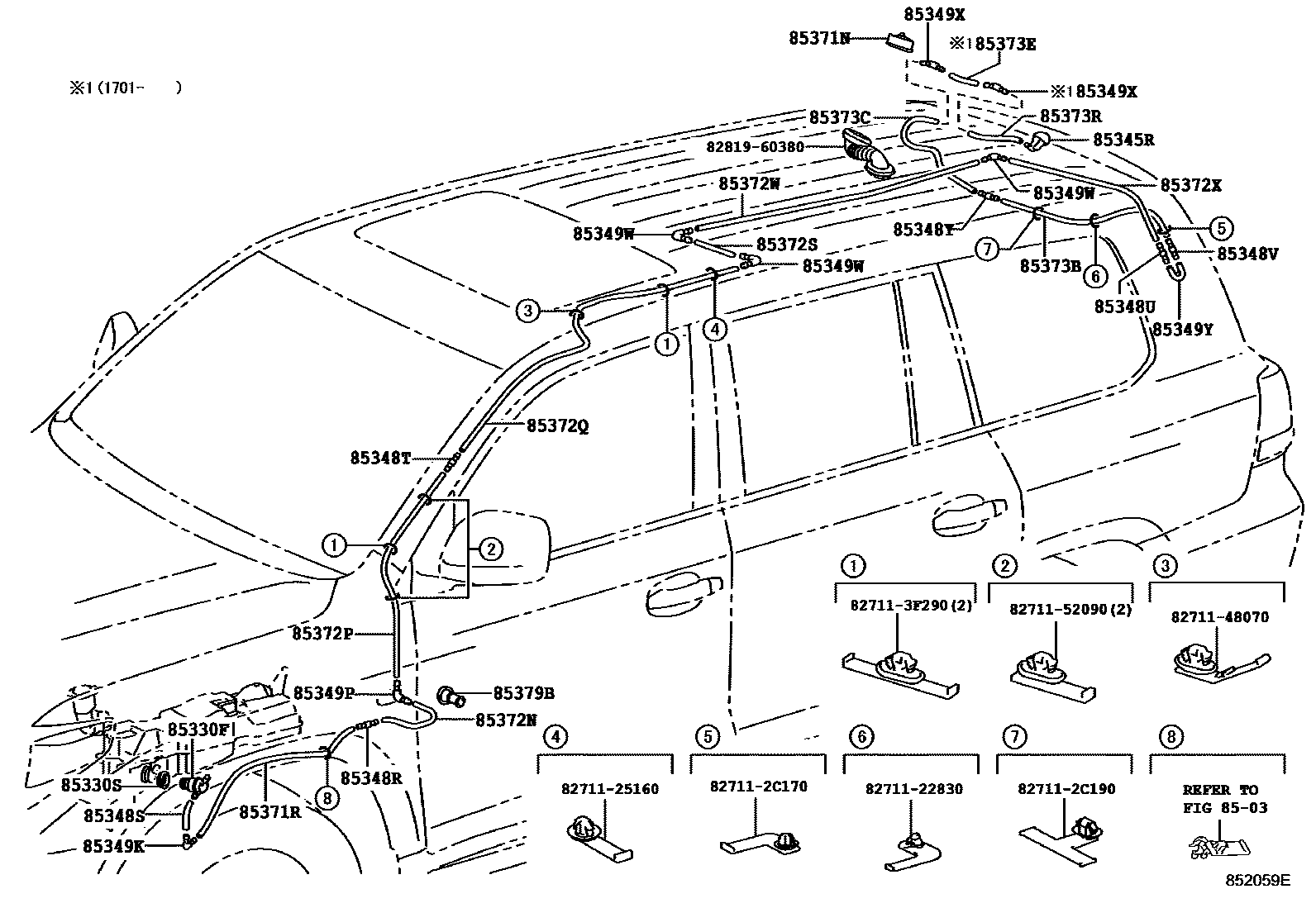

REAR WASHER
8503WINDSHIELD WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
85330SBUSH, REAR WASHER JAR
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85349WJOINT, REAR WASHER ELBOW, NO.4
85349XJOINT, REAR WASHER ELBOW, NO.6
85349YJOINT, REAR WASHER ELBOW, NO.5
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=610); L=1450(*H,L=610),HEADLAMP CLEANER-WITH
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=220)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=700)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=1270)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=100)
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=1550
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
L=1450(*H,L=340)
85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
L=1450(*H,L=490)
85373CTUBE, REAR WASHER RUBBER
L=1450(*H,L=420)
85373ETUBE, REAR WASHER RUBBER
L=1450(*H,L=40)
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=130)
85379BGROMMET, WASHER, A
8271122830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22830
8271125160WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-25160
827112C170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C170
827112C190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C190
827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F290
8271148070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-48070
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
8281960380GROMMET, WIRING HARNESS
main82819-60380
36 parts on this diagram · 1 diagram in section
