REAR WIPER

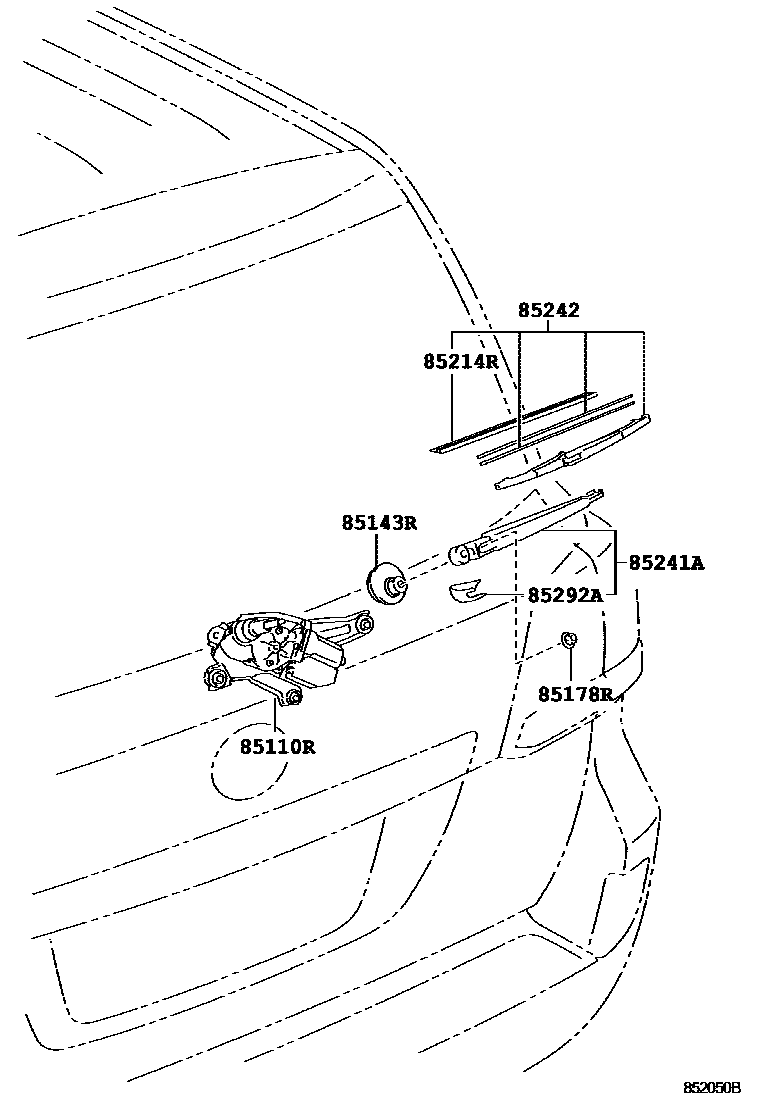

Parts diagram

85110RMOTOR ASSY, REAR WIPER

main85130-60190i200709-201201

main85130-60290i201308-201506

main85130-60291i201507-201508

85143RGROMMET, REAR WIPER MOTOR

main85143-60130i200709-200907

main85143-60140i200907-201007

main85143-60150i201008-201201

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158i200709-201201

85214RRUBBER, REAR WIPER

main85214-31010i200709-201004

main85214-42040i201005-201201

85241AARM, REAR WIPER

main85241-60140i200709-201201

main85241-60200i201508-202104

85242BLADE, RR WIPER

main85242-42030i200709-201201

main85242-60130i201508-202104

85292ACAP, REAR WIPER ARM HEAD

main85292-42020i200709-201201

main85292-47050i201508-202104

7 parts on this diagram · 1 diagram in section
