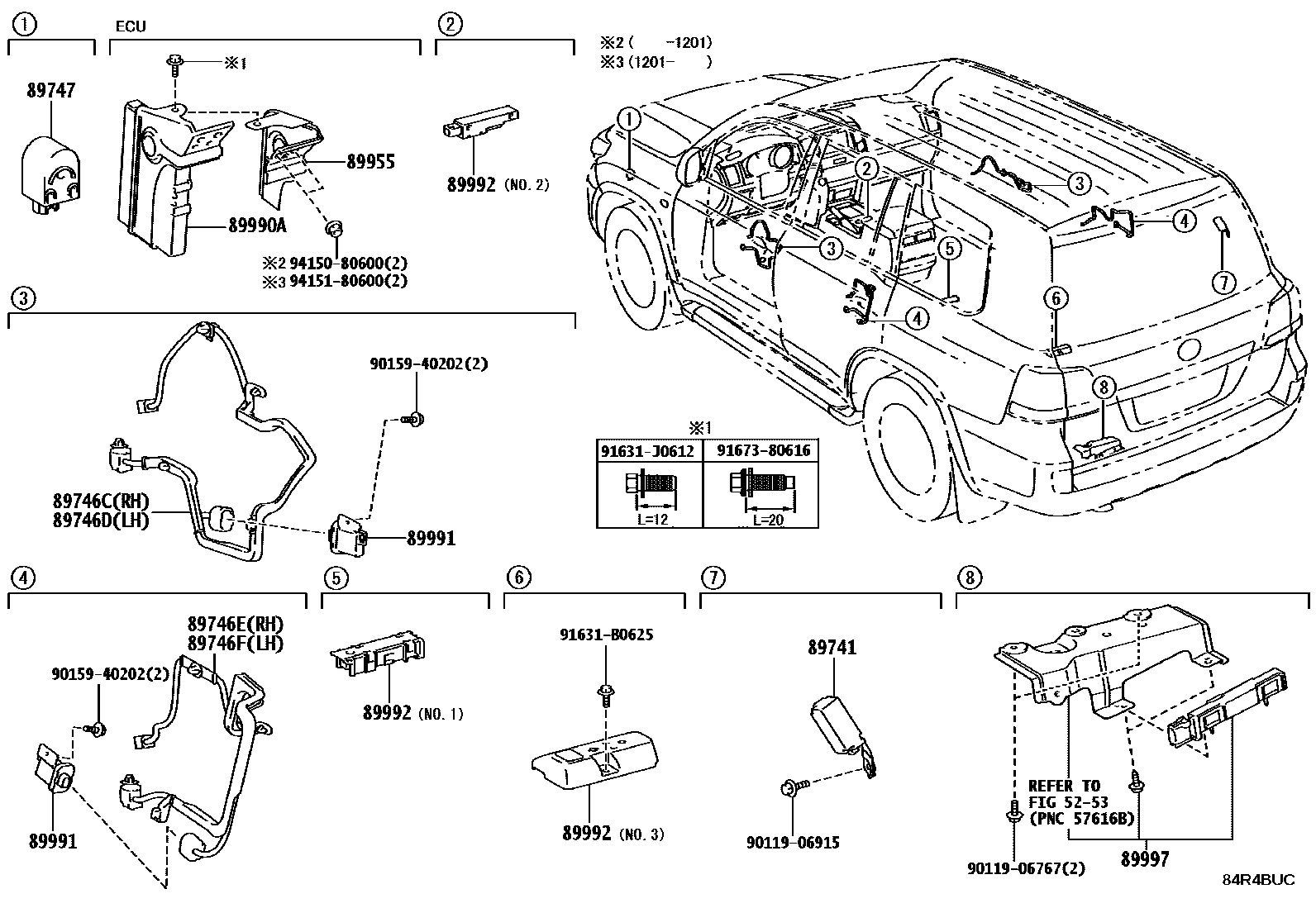

WIRELESS DOOR LOCK

5253REAR BUMPER & BUMPER STAY

→ Go to FIG 52-53

89741RECEIVER, DOOR CONTROL

main89740-60022i201201-201508

main89740-60220i201508-202104

MEXICO SPEC

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-60010i200709-201201

main89746-60050i201508-202104

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-60020i200709-201201

main89746-60060i201508-202104

89746EHARNESS, ELECTRICAL KEY WIRE, NO.3

main89746-60030i200709-201201

main89746-60070i201508-202104

89746FHARNESS, ELECTRICAL KEY WIRE, NO.4

main89746-60040i201201-201508

main89746-60080i201508-202104

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040i201508-202104

main89747-52010i201201-201508

89955BRACKET, SMART KEY COMPUTER

main85999-60140i200709-201201

89990ACOMPUTER ASSY, SMART KEY

main89990-60160i200709-200805

main89990-60161i200805-200906

main89990-60470i201508-201707

main89990-60471i201708-201808

main89990-60690i201808-201908

main89990-60770i201908-202104

main89990-60167i201410-201412

PRE-COLLISION SYSTEM-INTERLOCKING BRAKE,P/N LABEL=8999060167; PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR,P/N LABEL=8999060167

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-30040×2i200709-201201

FRONT RH,REAR LH

main89991-30050×2i201201-201508

FRONT LH,REAR RH

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-28010i201201-201508

NO.1

main89992-60010i200709-201201

NO.2

main89992-60020i200709-201201

NO.3

89997ANTENNA, ELECTRICAL KEY

main89997-30100i201508-202104

main89997-60030i200709-201201

9011906767

main90119-06767

9011906915

main90119-06915

9015940202

main90159-40202

91631B0625

main91631-B0625

91631J0612

main91631-J0612

9167380616

main91673-80616

9415080600

main94150-80600

9415180600

main94151-80600

20 parts on this diagram · 2 diagrams in section
