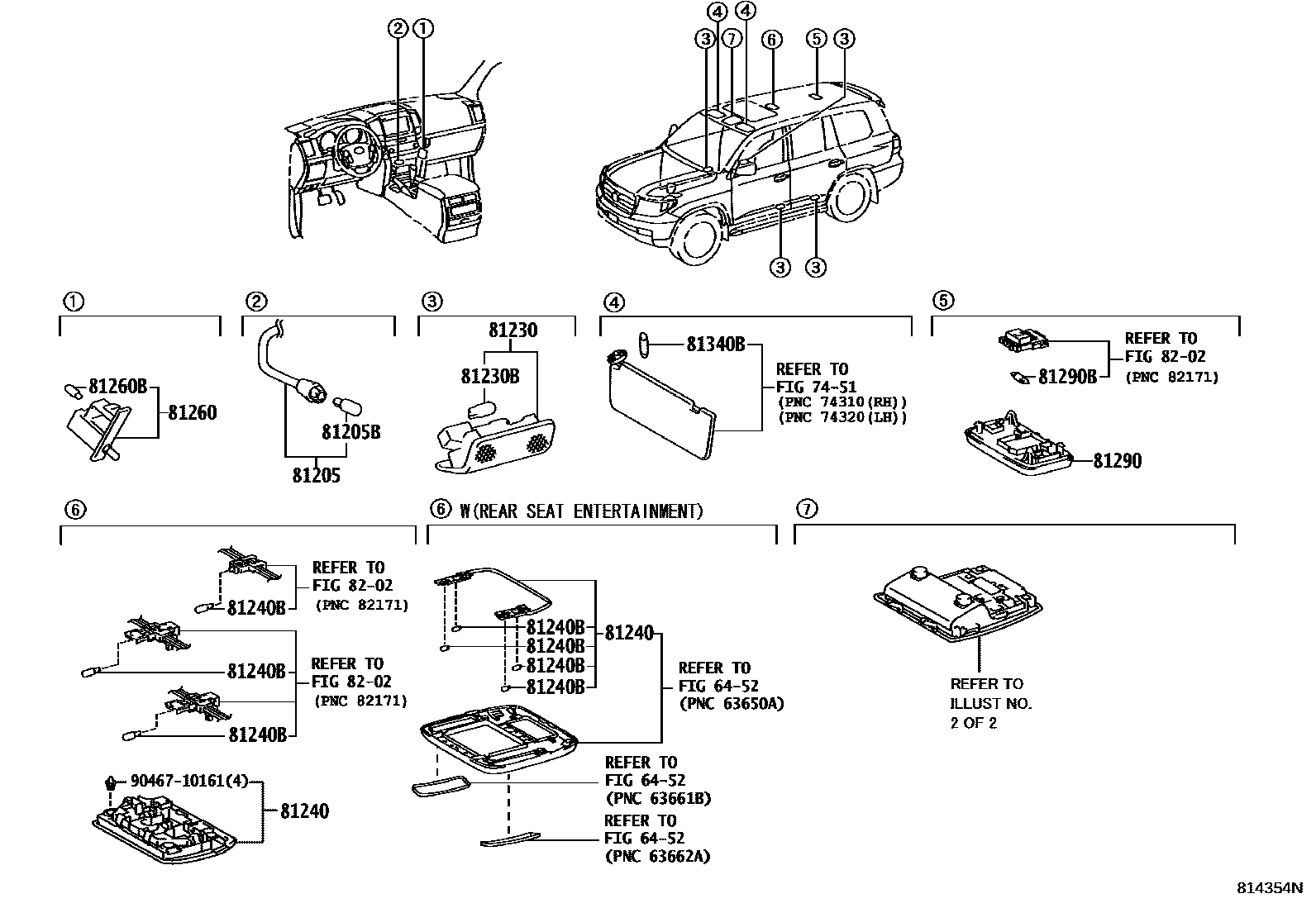

INTERIOR LAMP
6452ROOF HEADLINING & SILENCER PAD
7451ARMREST & VISOR
81205LAMP SUB-ASSY, ASH RECEPTACLE
81205BBULB, ASH RECEPTACLE LAMP
12V 1.2W W/O SOCKET
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
81240LAMP ASSY, ROOM, NO.1
LT.GRAY,TRIM1#
SAND BEIGE,TRIM4#
FLAXEN,TRIM0#
LT.GRAY,TRIM23,46
BLACK,TRIM25,42
NEUTRAL BEIGE,TRIM47
REAR SEAT ENTERTAINMENT-WITH,LT.GRAY,TRIM1#
REAR SEAT ENTERTAINMENT-WITH,SAND BEIGE,TRIM4#
REAR SEAT ENTERTAINMENT-WITH(SINGLE MONITOR),SHELL,TRIM0#
REAR SEAT ENTERTAINMENT-WITH,LT.GRAY,TRIM1#
REAR SEAT ENTERTAINMENT-WITH,SAND BEIGE,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 8W; 12V 8W,REAR SEAT ENTERTAINMENT-WITH(SINGLE MONITOR)
81260LAMP ASSY, GLOVE BOX
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81290LAMP ASSY, ROOM, NO.3
SHELL,TRIM0#
LT.GRAY,TRIM1#
SAND BEIGE,TRIM4#
FLAXEN,TRIM0#
LT.GRAY,TRIM23,46
BLACK,TRIM25,42
NEUTRAL BEIGE,TRIM47
81290BBULB, ROOM LAMP, NO.3
12V 8W
81340BBULB (FOR VANITY LAMP)
12V 2W
8202WIRING & CLAMP
9046710161
main90467-10161
15 parts on this diagram · 4 diagrams in section
