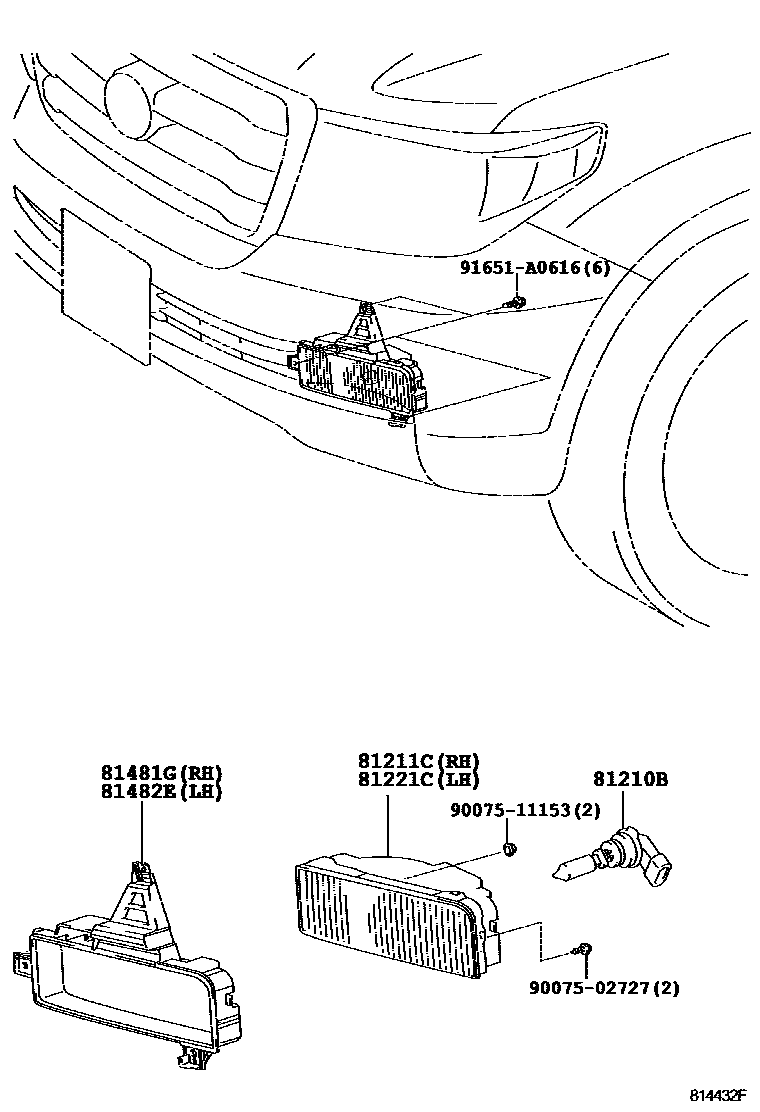

FOG LAMP

0001 1 0002 1 0003 1

81210BBULB, FOG LAMP

main90981-13047×2iURJ200200709-201201

12V 51W,HALOGEN

main90981-13090×2iURJ200201201-201508

12V 19W

81211CLAMP UNIT, FOG LAMP, RH

main81211-60230iURJ200200709-200806

main81211-60231iURJ200200806-201201

81221CLAMP UNIT, FOG LAMP, LH

main81221-60150iURJ200200709-200806

main81221-60151iURJ200200806-201201

81481GBRACKET, FOG LAMP, RH

main81481-60070iURJ200200709-200805

main81481-60071iURJ200200806-200908

main81481-60072iURJ200200909-201201

81482EBRACKET, FOG LAMP, LH

main81482-60060iURJ200200709-200805

main81482-60061iURJ200200806-200908

main81482-60062iURJ200200909-201201

9007502727

main90075-02727

9007511153

main90075-11153

91651A0616

main91651-A0616

8 parts on this diagram · 3 diagrams in section
