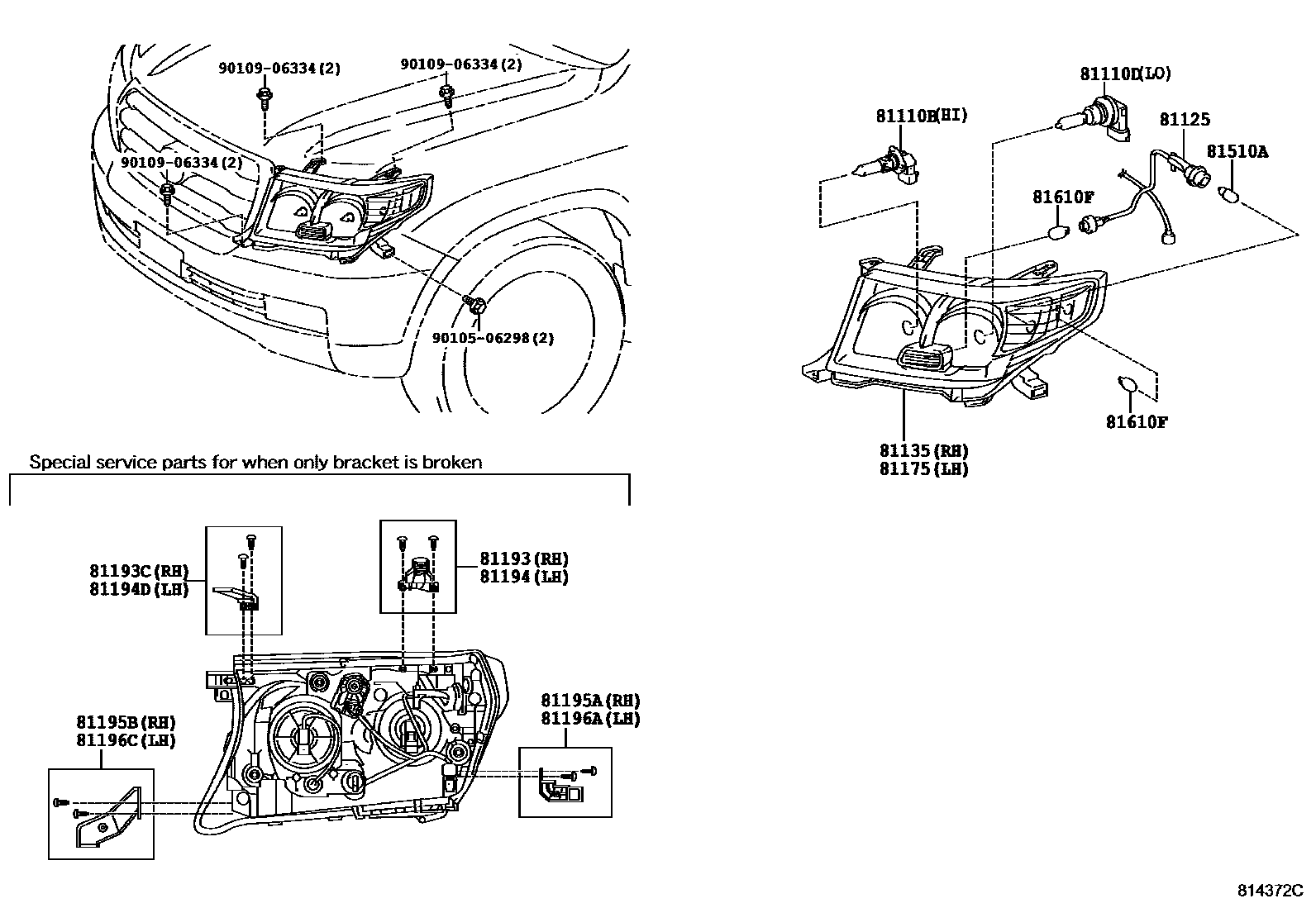

HEADLAMP

0001 1 0002 1 0003 1

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2iURJ200200709-200806

12V 65W

main90981-13046×2iURJ200200806-201201

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075×2iURJ200200709-201201

12V 55W,HALOGEN

81125CORD, HEADLAMP

main81125-60D30×2iURJ200200709-201201

81135UNIT ASSY, HEADLAMP, RH

main81130-60D30iURJ200200709-200801

main81130-60D31iURJ200200801-200806

main81130-60D32iURJ200200806-201001

main81130-60D33iURJ200201001-201201

main81140-60K60iURJ200201508-201612

main81140-60K61iURJ200201612-201708

main81140-60K62iURJ200201708-202104

main81145-60F50iURJ200201201-201508

main81140-60N50iURJ200201908-202104

URBAN STYLE/TRD-PACKAGE(20INCH)

81175UNIT ASSY, HEADLAMP, LH

main81070-60K60iURJ200201508-201612

main81070-60K61iURJ200201612-201708

main81070-60K62iURJ200201708-202104

main81170-60D00iURJ200200709-200801

main81170-60D01iURJ200200801-200806

main81170-60D02iURJ200200806-201001

main81170-60D03iURJ200201001-201201

main81185-60F50iURJ200201201-201508

main81070-60N50iURJ200201908-202104

URBAN STYLE/TRD-PACKAGE(20INCH)

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-60050iURJ200200709-201201

main81193-60160iURJ200201508-202104

81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH

main81193-60060iURJ200200709-201201

main81193-60130iURJ200201201-201508

main81193-60170iURJ200201508-202104

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-60050iURJ200200709-201201

main81194-60160iURJ200201508-202104

81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH

main81194-60060iURJ200200709-201201

main81194-60130iURJ200201201-201508

main81194-60170iURJ200201508-202104

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-60050iURJ200200709-201201

main81195-60140iURJ200201508-202104

81195BRETAINER, RH HEADLAMP PROTECTOR, LOWER RH

main81195-60060iURJ200200709-201201

main81195-60120iURJ200201201-201508

main81195-60150iURJ200201508-202104

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-60040iURJ200200709-201201

main81196-60130iURJ200201508-202104

81196CRETAINER, LH HEADLAMP PROTECTOR, LOWER LH

main81196-60050iURJ200200709-201201

main81196-60110iURJ200201201-201508

main81196-60140iURJ200201508-202104

81510ABULB, FRONT TURN SIGNAL & PARKING LAMP

main90981-15024×2iURJ200201201-201508

12V 28/8W

main90981-AF003×2iURJ200200709-200805

12V 30/8W

main90981-AF004×2iURJ200200806-201201

12V 30/8W

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×4iURJ200200709-201201

12V 5W

9010506298

main90105-06298

9010906334

main90109-06334

17 parts on this diagram · 3 diagrams in section
