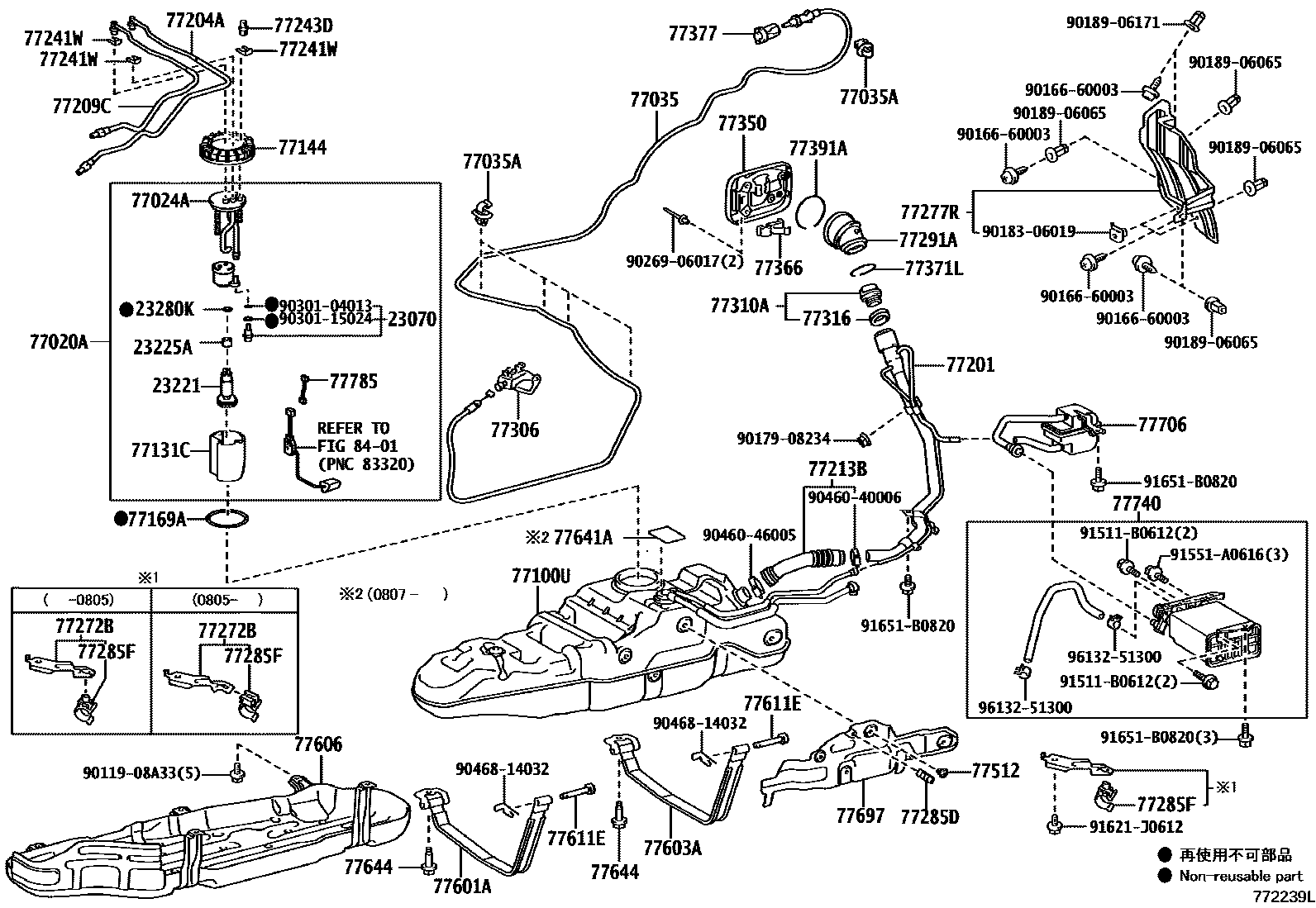

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE

23070VALVE ASSY, FUEL MAIN

main23070-38010i3URFE..URJ200201201-201508

23221PUMP, FUEL

main23220-50270i3URFE..URJ200200709-200711

main23220-50271i3URFE..URJ200200712-201201

23225ASPACER, FUEL PUMP

main23225-23010i3URFE..URJ200200709-201201

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-08019i3URFE..URJ200200709-201201

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-60340iURJ200200709-200711

main77020-60341iURJ200200712-200811

main77020-60342iURJ200200812-201201

main77020-60530iURJ200201508-202104

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-60200iURJ200200709-201201

main77024-60201iURJ200201508-202104

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-60140iURJ200200709-201201

77035ACLAMP (FOR FUEL LID LOCK CONTROL CABLE)

main90469-06005×5iURJ200200709-201201

77100UTANK SUB-ASSY, FUEL

main77001-60790iURJ200200709-200805

main77001-60791iURJ200200805-201201

77131CSUB-TANK, FUEL, NO.1

main77131-60120iURJ200200709-201201

main77131-60170iURJ200201508-202104

77144RETAINER, FUEL PUMP GAUGE

main77144-47020iURJ200200709-201201

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47030iURJ200200709-201201

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-60A40iURJ200200709-201201

main77201-60C40iURJ200201408-201508

77204ATUBE, FUEL TANK RETURN

main77204-60060iURJ200200709-201201

77209CTUBE SUB-ASSY, FUEL TANK MAIN

main77209-60460iURJ200201508-202104

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-60300iURJ200200709-201201

77241WCLIP, TUBE JOINT

main77241-33011×3iURJ200201508-202104

main77241-60320×3iURJ200200709-200912

77243DJOINT, FUEL TUBE, NO.1

main77243-60060iURJ200200709-201201

77272BSUPPORT, BREATHER TUBE, NO.1

main77205-60B90iURJ200200709-200805

main77205-60B91iURJ200200805-201201

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-60130iURJ200200709-201201

77285BRACKET, FUEL TUBE

main77281-60400iURJ200200709-201201

77285DCLAMP, FUEL TUBE, NO.1

main77285-60840iURJ200200709-201201

77285FCLAMP, FUEL TUBE, NO.1

main77285-60860iURJ200200709-200805

main77285-60861iURJ200200805-201201

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-60120iURJ200200709-201201

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-28060-C0iURJ200200709-201201

BLACK,TRIM1#

main77306-28060-E0iURJ200200709-201201

DK. BROWN,TRIM4#

main77306-58020-A0iURJ200201201-201508

SHELL,TRIM0#

main77306-58020-A2iURJ200201508-201708

FLAXEN,TRIM0#

main77306-58020-C0iURJ200201201-201508

BLACK,TRIM2#

main77306-58020-E0iURJ200201708-202104

NEUTRAL BEIGE,TRIM47

77310ACAP ASSY, FUEL TANK

main77300-52040iURJ200200709-201201

main77300-53020iURJ200201408-201508

77316GASKET, FUEL TANK CAP

main77316-52040iURJ200201201-201508

77350LID ASSY, FUEL FILLER OPENING

main77350-60090iURJ200200709-201201

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-35040iURJ200200709-201201

77371LRING, FUEL TANK FILLER PIPE SHIELD

main77371-35010iURJ200200709-201201

main77371-60040iURJ200202102-202104

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-35010iURJ200202103-202104

77391ARING, FUEL INLET BOX

main77391-35020iURJ200200709-201201

main77391-60070iURJ200201508-202104

77512BRACKET, FUEL TANK, REAR

main77512-35140×4iURJ200200709-201201

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-60310iURJ200200709-201201

main77601-60390iURJ200201508-202104

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77602-60110iURJ200200709-201201

main77602-60140iURJ200201508-202104

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-60170iURJ200200709-201201

77611EPIN, FUEL TANK BAND

main77653-35040×2iURJ200200709-201201

77641APROTECTOR, FUEL TANK, NO.1

main77641-60120iURJ200200807-201201

77644BOLT, FUEL TANK

main77644-35030×2iURJ200200709-201201

77697INSULATOR, FUEL TANK HEAT, NO.1

main77697-60010iURJ200200709-201201

77706FILTER SUB-ASSY, CHARCOAL CANISTER

main77706-60040iURJ200200709-201201

main77706-60050iURJ200201508-202104

77740CANISTER ASSY, CHARCOAL

main77740-60470iURJ200200709-201008

main77740-60471iURJ200201008-201201

main77740-60520iURJ200201308-201508

77785HARNESS, FUEL PUMP

main77785-60010iURJ200200709-201201

main77785-60011iURJ200201804-202104

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908A33

main90119-08A33

9016660003

main90166-60003

9017908234

main90179-08234

9018306019

main90183-06019

9018906065

main90189-06065

9018906171

main90189-06171

9026906017

main90269-06017

9030104013

main90301-04013

9030115024

main90301-15024

9046040006

main90460-40006

9046046005

main90460-46005

9046814032

main90468-14032

91511B0612

main91511-B0612

91551A0616

main91551-A0616

91621J0612

main91621-J0612

91651B0820

main91651-B0820

9613251300

main96132-51300

61 parts on this diagram · 3 diagrams in section
