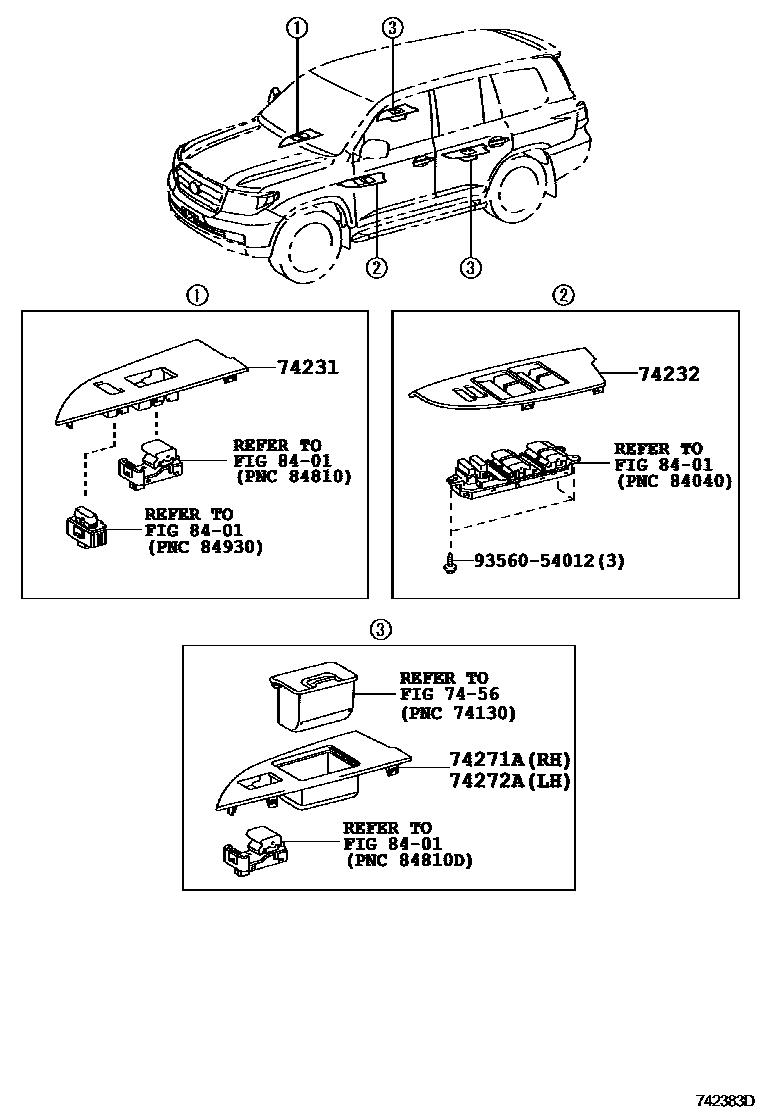

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-60560iURJ200200709-201201

main74231-60730iURJ200201201-201508

main74231-60890iURJ200201508-202104

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-60530iURJ200200709-201201

main74232-60690iURJ200201201-201508

main74232-60820iURJ200201508-202104

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-60190iURJ200200709-201201

main74271-60290iURJ200201201-201508

main74271-60420iURJ200201508-202104

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-60190iURJ200200709-201201

main74272-60290iURJ200201201-201508

main74272-60420iURJ200201508-202104

7456ASH RECEPTACLE

→ Go to FIG 74-56

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9356054012

main93560-54012

7 parts on this diagram · 2 diagrams in section
