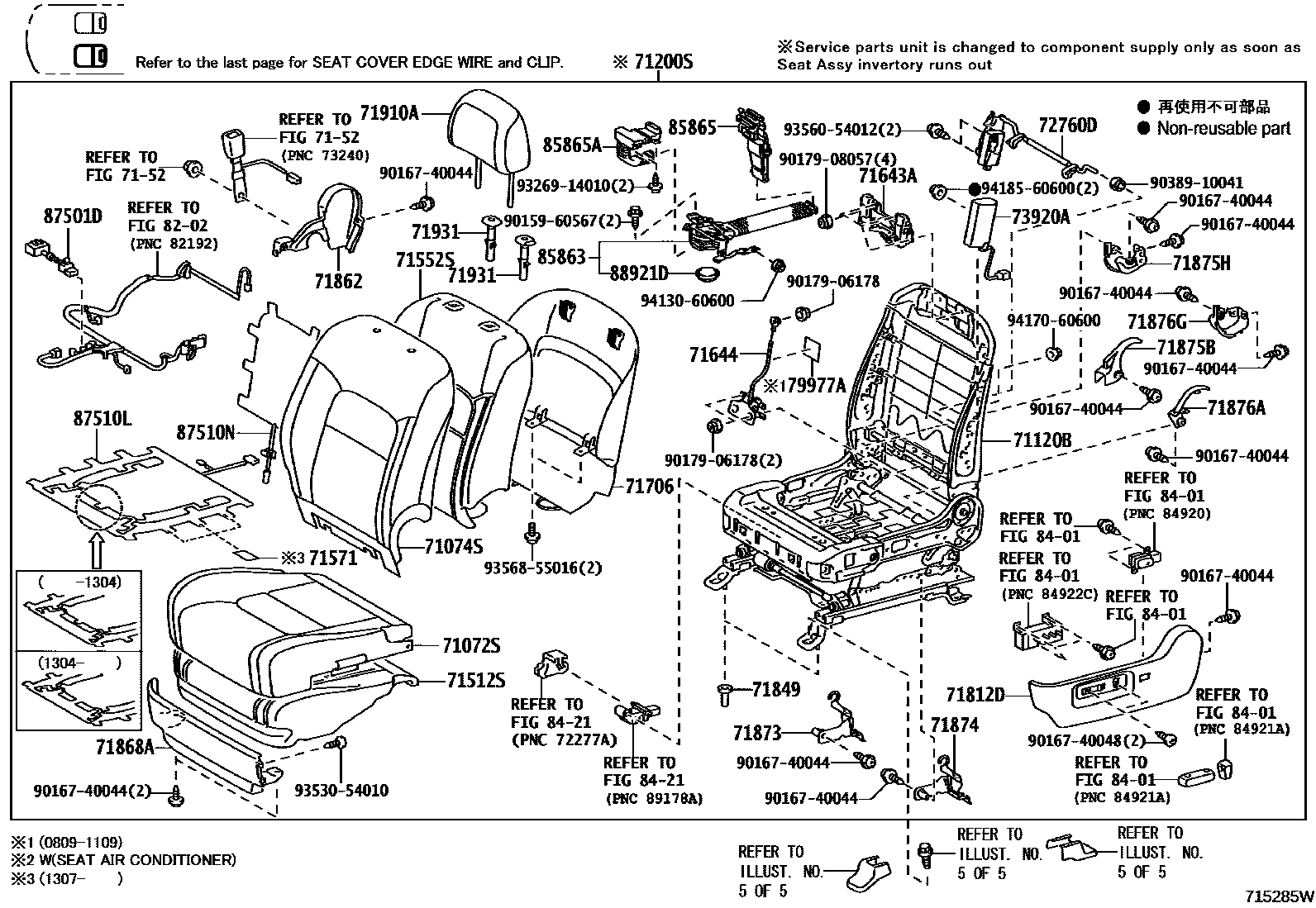

SEAT & SEAT TRACK

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-60A90-B0i200709-201008

MD.GRAY,TRIM1#

main71072-60A90-E0i200709-201008

SAND BEIGE,TRIM4#

main71072-60A91-B1i201008-201201

MD.GRAY,TRIM1#

main71072-60A91-E1i201008-201201

SAND BEIGE,TRIM4#

main71072-60F00-A1i201201-201303

SHELL,TRIM0#

main71072-60F00-C1i201201-201303

BLACK,TRIM2#

main71072-60F01-A1i201304-201508

SHELL,TRIM0#

main71072-60F01-C1i201304-201508

BLACK,TRIM2#

main71072-60M40-C1i201508-201812

BLACK,TRIM2#

main71072-60M40-E0i201708-201812

CHOCOLATE BROWN,TRIM42,46

main71072-60M40-E1i201708-201812

NEUTRAL BEIGE,TRIM47

main71072-60M41-C1i201901-202104

BLACK,TRIM2#

main71072-60M41-E0i201901-201908

CHOCOLATE BROWN,TRIM42,46

main71072-60M41-E1i201901-201908

NEUTRAL BEIGE,TRIM47

main71072-60M60-A2supersedes 71072-60M40-A1i201508-201608

SEAT COVER MATERIAL-NATURAL LEATHER&REAR SEAT ENTERTAINMENT-WITH,FLAXEN,TRIM0#

main71072-60M60-C2i201908-202104

SEAT COVER MATERIAL-NATURAL LEATHER&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM23,25

main71072-60M60-C3i201908-202104

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1),BLACK/BROWN,TRIM25

main71072-60M60-E0supersedes 71072-60M41-E0i201908-202104

SEAT COVER MATERIAL-NATURAL LEATHER&REAR SEAT ENTERTAINMENT-WITH,CHOCOLATE BROWN,TRIM4#

main71072-60M60-E1i201708-201908

SEAT COVER MATERIAL-NATURAL LEATHER,NEUTRAL BEIGE,TRIM47

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-60A00-B1i200709-200907

MD.GRAY,TRIM1#

main71074-60A00-E1i200709-200907

SAND BEIGE,TRIM4#

main71074-60A01-B1i200907-201008

MD.GRAY,TRIM1#

main71074-60A01-E1i200907-201008

SAND BEIGE,TRIM4#

main71074-60A02-B2i201008-201201

MD.GRAY,TRIM1#

main71074-60A02-E2i201008-201201

SAND BEIGE,TRIM4#

main71074-60E00-A1i201201-201508

SHELL,TRIM0#

sub71074-60E10

main71074-60E00-C1i201201-201508

BLACK,TRIM2#

sub71074-60E10

main71074-60L50-A2supersedes 71074-60L70-A2i201508-201608

SEAT COVER MATERIAL-NATURAL LEATHER&REAR SEAT ENTERTAINMENT-WITH,FLAXEN,TRIM0#

main71074-60L50-C2supersedes 71074-60L80-C2i201908-202104

SEAT COVER MATERIAL-NATURAL LEATHER&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM23,25

main71074-60L50-C3i201908-202104

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH,BLACK/BROWN,TRIM25

main71074-60L50-E1supersedes 71074-60L70-E1i201508-201608

SEAT COVER MATERIAL-NATURAL LEATHER&REAR SEAT ENTERTAINMENT-WITH,CHOCOLATE BLAWN,TRIM4#

main71074-60L50-E3i201708-201908

SEAT COVER MATERIAL-NATURAL LEATHER&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM47

main71074-60L80-E3supersedes 71074-60L70-E3i201708-201812

REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM47

main71074-60L81-C2supersedes 71074-60L71-C2i201901-202104

REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#

main71074-60L81-E1supersedes 71074-60L71-E1i201901-201908

REAR SEAT ENTERTAINMENT-WITH,CHOCOLATE BROWN,TRIM42,46

main71074-60L81-E3supersedes 71074-60L71-E3i201901-201908

REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM47

main71074-60M10-A2supersedes 71074-60L70-A2i201508-201608

SEAT COVER MATERIAL-NATURAL LEATHER,FLAXEN,TRIM0#

main71074-60M10-C2supersedes 71074-60L70-C2i201908-202104

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1),BLACK,TRIM23,25

main71074-60M10-C3i201908-202104

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1),BLACK,TRIM25

main71074-60M10-E1supersedes 71074-60L70-E1i201908-202104

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1),CHOCOLATE BLAWN,TRIM4#

main71074-60M10-E3i201708-201908

SEAT COVER MATERIAL-NATURAL LEATHER,NEUTRAL BEIGE,TRIM47

71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH

main71120-60510i200709-201201

main71120-60660i201201-201212

sub73214-75010

main71120-60661i201212-201508

main71120-60B80supersedes 71120-60780i201608-201708

71200SSEAT ASSY, FRONT LH

main71200-60B70-B2i200709-200907

MD.GRAY,TRIM1#

main71200-60B70-E2i200709-200907

SAND BEIGE,TRIM4#

main71200-60B71-B0i200907-201008

MD.GRAY,TRIM1#

main71200-60B71-E0i200907-201008

SAND BEIGE,TRIM4#

main71200-60B72-B2i201008-201201

MD.GRAY LC,TRIM1#

main71200-60B72-E1i201008-201201

SAND BEIGE LC,TRIM4#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-60190i200709-201201

main71502-60380i201201-201508

7152

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71506-60100i200709-201201

main71506-60170i201201-201508

main71506-60300supersedes 71506-60170i201608-201708

71571PAD, FRONT SEATBACK SILENCER, A

main71571-60050×6i201307-201508

71643AUNIT, ACTIVE HEADREST, UPR

main71643-12011×2i200709-201201

71644UNIT, ACTIVE HEADREST, LWR

main71644-12030×2i200709-201201

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71706-60070-B0i200709-201201

MD.GRAY,TRIM1#

main71706-60070-E0i200709-201201

SAND BEIGE,TRIM4#

main71706-60130-A1i201201-201508

SHELL,TRIM0#

main71706-60130-C0i201201-201508

BLACK,TRIM2#

main71706-60170-A0i201508-201708

FLAXEN,TRIM0#

main71706-60170-C0i201908-202104

BLACK,TRIM2#,4#

main71706-60170-E0i201708-201908

NEUTRAL BEIGE,TRIM47

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-42110-A1i201201-201508

SHELL,TRIM0#

main71812-42110-B2i200709-201201

MD.GRAY,TRIM1#

main71812-42110-C0i201201-201508

BLACK,TRIM2#

main71812-42110-E1i200709-201201

SAND BEIGE,TRIM4#

main71812-60370-A1i201508-201708

FLAXEN,TRIM0#

main71812-60370-C0i201508-201708

BLACK,TRIM2#,4#

main71812-60370-E0i201708-201908

NEUTRAL BEIGE,TRIM47

71849CAP, SEAT ADJUSTER COVER, LH

main71848-33010×2i200709-201201

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-60100-A2i201201-201508

SHELL,TRIM0#

main71862-60100-A6i201508-201708

FLAXEN,TRIM0#

main71862-60100-B1i200709-201201

MD.GRAY,TRIM1#

main71862-60100-C0i201508-201708

BLACK,TRIM2#,4#

main71862-60100-E3i200709-201201

SAND BEIGE,TRIM4#

main71862-60100-E6i201708-201908

NEUTRAL BEIGE,TRIM47

71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

main71868-60020-B0i200709-201201

MD.GRAY,TRIM1#

main71868-60020-E2i200709-201201

SAND BEIGE,TRIM4#

main71868-60040-A2i201201-201508

SHELL,TRIM0#

main71868-60040-A4i201508-201708

FLAXEN,TRIM0#

main71868-60040-C0i201708-201908

BLACK,TRIM2#,42,46

main71868-60040-E1i201708-201908

NEUTRAL BEIGE,TRIM47

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71874-30020×2i200709-201201

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-30070×2i200709-201201

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71876-60170-A3i201201-201508

SHELL,TRIM0#

main71876-60170-A8i201508-201708

FLAXEN,TRIM0#

main71876-60170-B1i200709-201201

MD.GRAY,TRIM1#

main71876-60170-C0i201201-201508

BLACK,TRIM2#

main71876-60170-E3i200709-201201

SAND BEIGE,TRIM4#

main71876-60170-E8i201708-201908

NEUTRAL BEIGE,TRIM47

71875HCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71875-60140i200709-201201

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71875-60150-A2i201201-201508

SHELL,TRIM0#

main71875-60150-A7i201508-201708

FLAXEN,TRIM0#

main71875-60150-B1i200709-201201

MD.GRAY,TRIM1#

main71875-60150-C0i201201-201508

BLACK,TRIM2#

main71875-60150-E4i200709-201201

SAND BEIGE,TRIM4#

main71875-60150-E9i201708-201908

NEUTRAL BEIGE,TRIM47

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-60150-A4i201201-201508

SHELL,TRIM0#

main71876-60150-A7i201508-201708

FLAXEN,TRIM0#

main71876-60150-B1i200709-201201

MD.GRAY,TRIM1#

main71876-60150-C0i201201-201508

BLACK,TRIM2#

main71876-60150-E3i200709-201201

SAND BEIGE,TRIM4#

main71876-60150-E7i201708-201908

NEUTRAL BEIGE,TRIM47

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-60140i201508-202104

71910AHEADREST ASSY, FRONT SEAT

main71910-60700-B0×2i200709-201008

MD.GARY,TRIM1#

main71910-60700-E0×2i200709-201008

SAND BEIGE,TRIM4#

main71910-60701-B1×2i201008-201201

MD.GARY,TRIM1#

main71910-60701-E1×2i201008-201201

SAND BEIGE,TRIM4#

main71910-60A30-A1×2i201201-201508

SHELL,TRIM0#

main71910-60A30-C0×2i201201-201508

BLACK,TRIM2#

main71910-60A30-A5×2supersedes 71910-60C80-A2i201508-201608

SEAT COVER MATERIAL-NATURAL LEATHER,FLAXEN,TRIM0#

main71910-60A30-C2×2supersedes 71910-60C80-C2i201708-201908

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

main71910-60A30-C3×2i201908-202104

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1),BLACK/BROWN,TRIM25

main71910-60A30-E0×2supersedes 71910-60C80-E0i201908-202104

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1),CHOCOLATE BROWN,TRIM4#

main71910-60A30-E1×2supersedes 71910-60F00-E3i201708-201908

SEAT COVER MATERIAL-NATURAL LEATHER,NEUTRAL BEIGE,TRIM47

main71910-60C70-A3×2supersedes 71910-60C80-A2i201508-201608

SEAT COVER MATERIAL-NATURAL LEATHER&REAR SEAT ENTERTAINMENT-WITH,FLAXEN,TRIM0#

main71910-60C70-C2×2supersedes 71910-60C90-C2i201908-202104

SEAT COVER MATERIAL-NATURAL LEATHER&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM23,25

main71910-60C70-C3×2i201908-202104

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&REAR SEAT ENTERTAINMENT-WITH,BLACK/BROWN,TRIM25

main71910-60C70-E0×2supersedes 71910-60C80-E0i201908-202104

SEAT COVER MATERIAL-NATURAL LEATHER&REAR SEAT ENTERTAINMENT-WITH,CHOCOLATE BROWN,TRIM4#

main71910-60C70-E1×2i201708-201908

SEAT COVER MATERIAL-NATURAL LEATHER&REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM47

main71910-60C90-E1×2i201708-201908

REAR SEAT ENTERTAINMENT-WITH,NEUTRAL BEIGE,TRIM47

main71910-60E50-C0×2supersedes 71910-60C80-C2i201908-202104

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

main71910-60E50-E0×2supersedes 71910-60F00-E1i201908-202104

SEAT COVER MATERIAL-NATURAL LEATHER,CHOCOLATE BROWN,TRIM42,46

main71910-60E50-E1×2supersedes 71910-60F00-E3i201908-202104

SEAT COVER MATERIAL-NATURAL LEATHER,NEUTRAL BEIGE,TRIM47

main71910-60F00-C0×2supersedes 71910-60C80-C2i201808-202010

SEAT COVER MATERIAL-NATURAL LEATHER&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-44020-21×2i201908-202104

W(LOCK),BLACK,TRIM2#,4#

sub71930-02370

main71930-44020-A2×2i201201-201508

W(LOCK),SHELL,TRIM0#

sub71930-02370

main71930-44020-A7×2i201508-201708

W(LOCK),FLAXEN,TRIM0#

sub71930-02370

main71930-44020-B1×2i200709-201201

W(LOCK),MD.GRAY,TRIM1#

sub71930-02370

main71930-44020-C0×2i201708-201710

W(LOCK),BLACK,TRIM2#,42,46

sub71930-02370

main71930-44020-E2×2i200709-201201

W(LOCK),SAND BEIGE,TRIM4#

sub71930-02370

main71930-44020-L2×2i201708-201908

W(LOCK),NEUTRAL BEIGE,TRIM47

sub71930-02370

main71930-48010-A3×2i201201-201508

W(LOCK)&W/O(BUTTON),SHELL,TRIM0#

main71930-48010-A4×2i201508-201708

W(LOCK)&W/O(BUTTON),FLAXEN,TRIM0#

main71930-48010-C0×2i201908-202104

W(LOCK)&W/O(BUTTON),BLACK,TRIM2#,4#

main71930-48010-E5×2i201708-201908

W(LOCK)&W/O(BUTTON),NEUTRAL BEIGE,TRIM47

main71931-47010-B8×2i200709-201201

W/O(LOCK),MD.GRAY,TRIM1#

main71931-47010-E8×2i200709-201201

W/O(LOCK),SAND BEIGE,TRIM4#

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72760-30170i200709-201201

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-60020i201201-201508

79977AFELT, SEATBACK

main79977-60050×2i200809-201109

8202

8401

8421

85863BLOWER, SEAT CLIMATE CONTROL, LH

main85863-60010i201201-201508

main85863-60050i201508-202104

85865CONTROLLER, SEAT CLIMATE CONTROL,LH

main85865-60030i201201-201508

85865ACONTROLLER, SEAT CLIMATE CONTROL, LH

main85865-60040i201201-201508

87501DCONTROL SUB-ASSY, SEAT HEATER

main87501-60010×2i200709-201112

sub87501-60060

main87501-60100×2i201508-202104

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-60400i200709-201201

main87510-60610i201201-201304

main87510-60611i201304-201508

sub87510-60612

main87510-60670i201508-201702

main87510-60671i201703-202104

87510NHEATER ASSY, FRONT SEATBACK, LH

main87510-60280i200709-201201

main87510-60590i201508-202104

88921DFILTER, AIR, NO.1

main88921-60010×2i201201-201508

9015960567

main90159-60567

9016740044

main90167-40044

9016740048

main90167-40048

9017906178

main90179-06178

9017908057

main90179-08057

9038910041

main90389-10041

9326914010

main93269-14010

9353054010

main93530-54010

9356054012

main93560-54012

9356855016

main93568-55016

9413060600

main94130-60600

9417060600

main94170-60600

9418560600

main94185-60600

50 parts on this diagram · 13 diagrams in section
