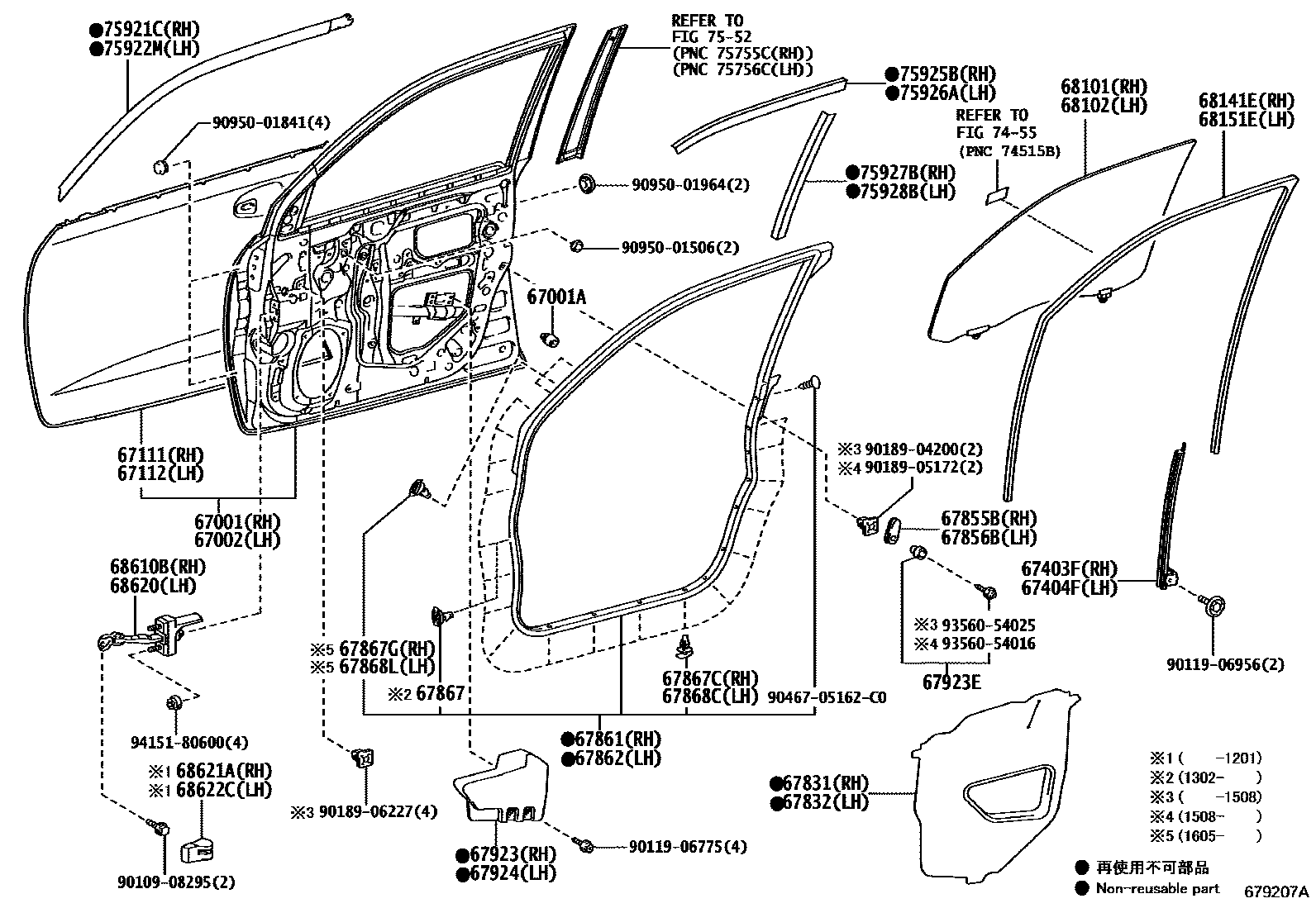

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-60670supersedes 67001-60631iURJ200201201-201412

SIDE PROTECTIVE MOULDING-WITH

main67001-60671supersedes 67001-60631iURJ200201501-201508

SIDE PROTECTIVE MOULDING-WITH

main67001-60850supersedes 67001-60830iURJ200201508-202104

SIDE PROTECTIVE MOULDING-WITH

67001ACUSHION, FRONT DOOR PANEL

main90541-09069×2iURJ200201201-201508

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-60670supersedes 67002-60631iURJ200201201-201412

SIDE PROTECTIVE MOULDING-WITH

main67002-60671supersedes 67002-60631iURJ200201501-201508

SIDE PROTECTIVE MOULDING-WITH

main67002-60850supersedes 67002-60830iURJ200201508-202104

SIDE PROTECTIVE MOULDING-WITH

67111PANEL, FRONT DOOR, OUTER RH

main67111-60410supersedes 67111-60350iURJ200201201-201508

SIDE PROTECTIVE MOULDING-WITH

main67111-60440supersedes 67111-60430iURJ200201508-202104

SIDE PROTECTIVE MOULDING-WITH

67112PANEL, FRONT DOOR, OUTER LH

main67112-60410supersedes 67112-60350iURJ200201201-201508

SIDE PROTECTIVE MOULDING-WITH

main67112-60440supersedes 67112-60430iURJ200201508-202104

SIDE PROTECTIVE MOULDING-WITH

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-60100iURJ200200709-201201

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-60110iURJ200200709-201201

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-60160iURJ200200709-201201

main67831-60161iURJ200201502-201508

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-60070iURJ200200709-201201

main67832-60071iURJ200201502-201508

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-60040iURJ200200709-201201

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-60010iURJ200200709-201201

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-60150iURJ200200709-201201

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-60150iURJ200201201-201508

67867CLIP, DOOR WEATHERSTRIP

main67867-52010×2iURJ200201302-201508

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×18iURJ200200709-201006

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-60010×3iURJ200201605-202104

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×18iURJ200200709-201006

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-60010×3iURJ200201605-202104

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-60010iURJ200200709-201201

67923ECUSHION, FRONT DOOR STIFFENER, NO.1

main67923-24030×2iURJ200200709-201201

main67923-60050×2iURJ200201508-202104

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-60010iURJ200200709-201201

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-60560iURJ200200709-201111

*UVCT,T=5.0,GREEN

main68101-60561iURJ200201112-201201

*UVCT,T=5.0,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-60560iURJ200200709-201111

*UVCT,T=5.0,GREEN

main68102-60561iURJ200201112-201201

*UVCT,T=5.0,GREEN

68141ERUN, FRONT DOOR GLASS, RH

main68141-60070iURJ200201201-201508

68151ERUN, FRONT DOOR GLASS, LH

main68151-60060iURJ200200709-201201

68610BCHECK ASSY, FRONT DOOR, RH

main68610-60110iURJ200200709-201002

main68610-60111iURJ200201003-201201

main68610-60130iURJ200201201-201411

main68610-60131iURJ200201412-201508

main68610-60132iURJ200201909-202104

68620CHECK ASSY, FRONT DOOR, LH

main68620-60100iURJ200200709-201002

main68620-60101iURJ200201003-201201

main68620-60110iURJ200201201-201411

main68620-60111iURJ200201412-201508

main68620-60112iURJ200201909-202104

68621ACOVER, FRONT DOOR CHECK, RH

main68621-60010iURJ200200709-201201

68622CCOVER, FRONT DOOR CHECK, LH

main68622-60010iURJ200200709-201201

7455CAUTION PLATE

→ Go to FIG 74-55

7552MOULDING

→ Go to FIG 75-52

75921CTAPE, BLACK OUT, NO.1 RH

main75921-60030iURJ200201508-202104

75922MTAPE, BLACK OUT, NO.1 LH

main75922-60030iURJ200201508-202104

75925BTAPE, BLACK OUT, NO.3 RH

main75925-60010iURJ200200709-201201

75926ATAPE, BLACK OUT, NO.3 LH

main75926-60010iURJ200200709-201201

75927BTAPE, BLACK OUT, NO.4 RH

main75927-60010iURJ200200709-201201

75928BTAPE, BLACK OUT, NO.4 LH

main75928-60010iURJ200200709-201201

9010908295

main90109-08295

9011906775

main90119-06775

9011906956

main90119-06956

9018904200

main90189-04200

9018905172

main90189-05172

9018906227

main90189-06227

9046705162C0

main90467-05162C0

9095001506

main90950-01506

9095001841

main90950-01841

9095001964

main90950-01964

9356054016

main93560-54016

9356054025

main93560-54025

9415180600

main94151-80600

50 parts on this diagram · 2 diagrams in section
