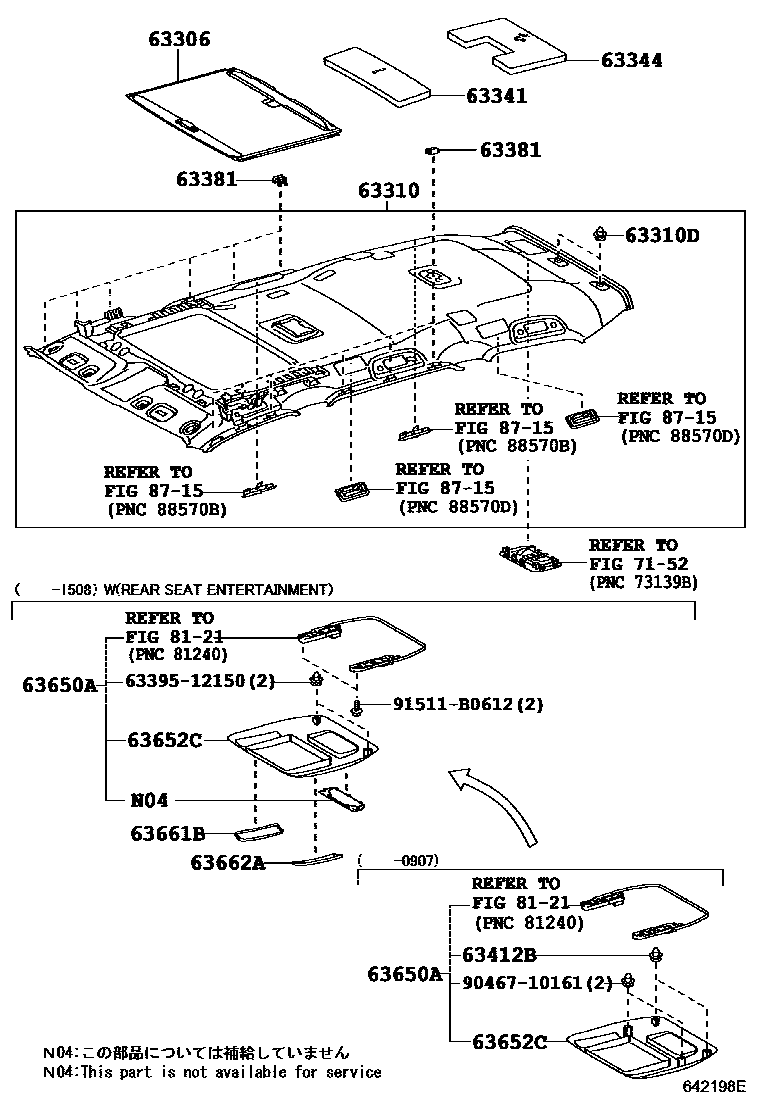

ROOF HEADLINING & SILENCER PAD

63306TRIM SUB-ASSY, SUNSHADE

main63306-60150-A1i201201-201508

SHELL,TRIM0#

main63306-60150-A4i201508-201708

FLAXEN,TRIM0#

main63306-60150-B1i200709-201201

LT.GRAY,TRIM1#

main63306-60150-C1i201508-202104

BLACK,TRIM25,42

main63306-60150-E1i200709-201201

SAND BEIGE,TRIM4#

main63306-60150-E2i201708-202104

NEUTRAL BEIGE,TRIM47

63310HEADLINING ASSY, ROOF

main63310-60G90-B0i200709-201201

LT.GRAY,TRIM1#

main63310-60G90-E0i200709-201201

SAND BEIGE,TRIM4#

main63310-60X30-A1i201508-201708

FLAXEN,TRIM0#

main63310-60X30-B0i201508-202104

LT.GRAY,TRIM23,46

main63310-60X30-C1i201508-202104

BLACK,TRIM25,42

main63310-60X30-E0i201708-202104

NEUTRAL BEIGE,TRIM47

main63311-60510-B0i200709-200907

REAR SEAT ENTERTAINMENT-WITH,LT.GRAY,TRIM1#

main63311-60510-E0i200709-200907

REAR SEAT ENTERTAINMENT-WITH,SAND BEIGE,TRIM4#

main63311-60511-A0supersedes 63310-60G90-A0i201201-201508

INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&REAR SEAT ENTERTAINMENT-WITH(SINGLE MONITOR),SHELL,TRIM0#; REAR SEAT ENTERTAINMENT-WITH(SINGLE MONITOR),SHELL,TRIM0#

main63311-60511-B0i200907-201201

INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&REAR SEAT ENTERTAINMENT-WITH,LT.GRAY,TRIM1#; REAR SEAT ENTERTAINMENT-WITH,LT.GRAY,TRIM1#

main63311-60511-E0i200907-201201

INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&REAR SEAT ENTERTAINMENT-WITH,SAND BEIGE,TRIM4#; REAR SEAT ENTERTAINMENT-WITH,SAND BEIGE,TRIM4#

main63311-60670-C1i202009-202104

INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&REAR NO.2 SEAT-WITHOUT,BLACK,TRIM2#,4#; PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)&REAR NO.2 SEAT-WITHOUT,BLACK,TRIM2#,4#; REAR NO.2 SEAT-WITHOUT,BLACK,TRIM2#,4#

63310DCLIP, ROOF HEADLINING

main90467-10167×2i201201-201508

63341PAD, ROOF SILENCER, NO.1

main63341-60100i201201-201508

63344PAD, ROOF SILENCER, NO.4

main63344-60040i200709-201201

63381RETAINER, HEADLINING, FRONT

main63381-60010×12i201201-201210

63412BRETAINER, ROOF CONSOLE

main67771-33040×2i200709-200907

REAR SEAT ENTERTAINMENT-WITH

63650ABOX ASSY, ROOF CONSOLE

main63650-60040-B0i200709-200907

REAR SEAT ENTERTAINMENT-WITH,LT.GRAY,TRIM1#

main63650-60040-E0i200709-200907

REAR SEAT ENTERTAINMENT-WITH,SAND BEIGE,TRIM4#

main63650-60080-A0i201201-201508

REAR SEAT ENTERTAINMENT-WITH(SINGLE MONITOR),SHELL,TRIM0#

main63650-60080-B0i200907-201201

REAR SEAT ENTERTAINMENT-WITH,LT.GRAY,TRIM1#

main63650-60080-E0i200907-201201

REAR SEAT ENTERTAINMENT-WITH,SAND BEIGE,TRIM4#

63652CCOVER, ROOF CONSOLE BOX

main63652-60020-B0i200709-200907

REAR SEAT ENTERTAINMENT-WITH,LT.GRAY,TRIM1#

main63652-60020-E0i200709-200907

REAR SEAT ENTERTAINMENT-WITH,SAND BEIGE,TRIM4#

main63652-60040-A1i201201-201508

REAR SEAT ENTERTAINMENT-WITH(SINGLE MONITOR),SHELL,TRIM0#

main63652-60040-B0i200907-201201

REAR SEAT ENTERTAINMENT-WITH,LT.GRAY,TRIM1#

main63652-60040-E0i200907-201201

REAR SEAT ENTERTAINMENT-WITH,SAND BEIGE,TRIM4#

63661BCOVER, ROOF LINING TRIM, NO.1

main63661-60010i200709-201201

REAR SEAT ENTERTAINMENT-WITH

63662ACOVER, ROOF LINING TRIM, NO.2

main63662-60040i200709-201201

REAR SEAT ENTERTAINMENT-WITH

7152SEAT BELT

→ Go to FIG 71-52

8121INTERIOR LAMP

→ Go to FIG 81-21

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

6339512150CLIP, ROOF HEADLINING TRIM

main63395-12150

9046710161

main90467-10161

91511B0612

main91511-B0612

17 parts on this diagram · 1 diagram in section
