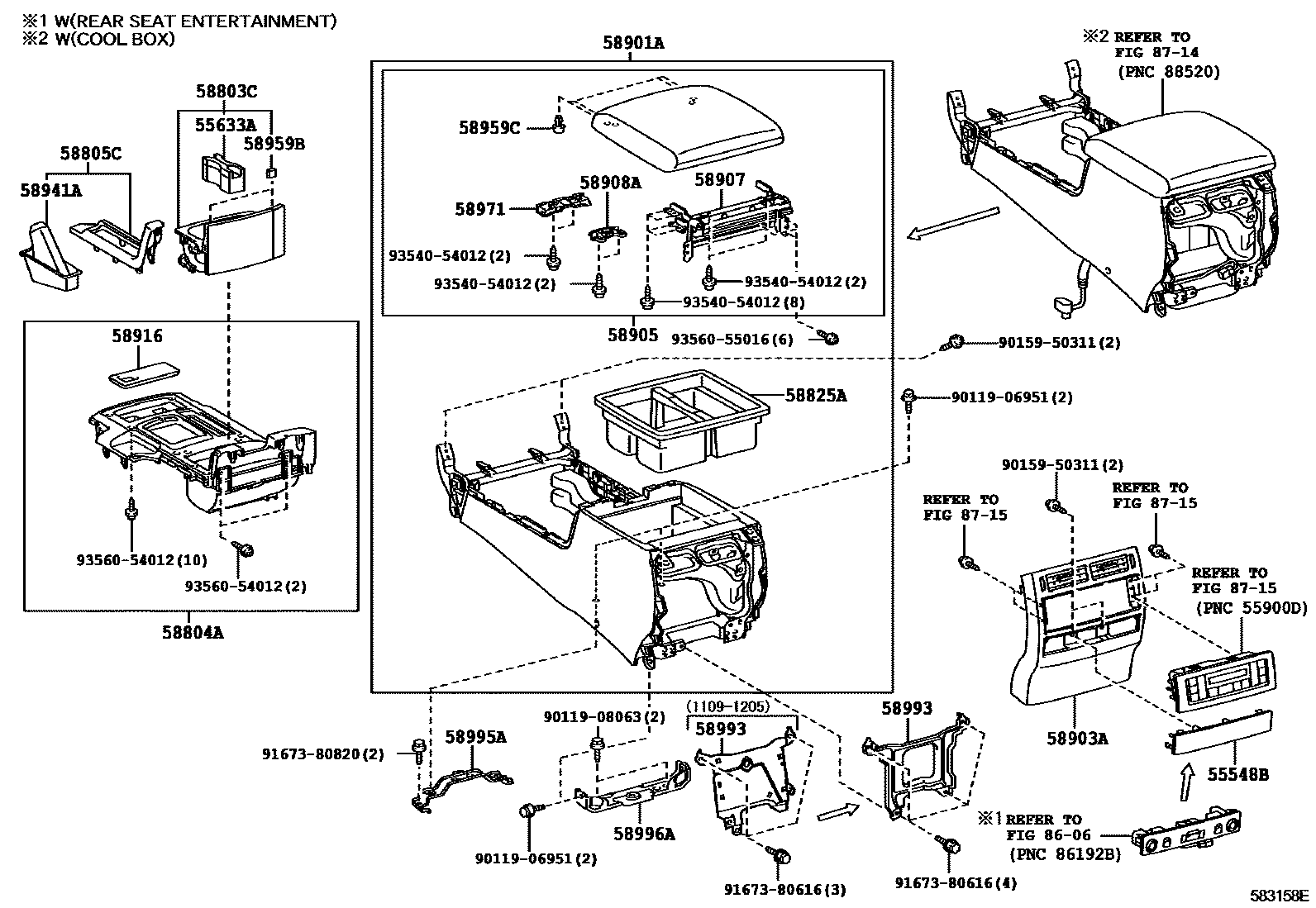

CONSOLE BOX & BRACKET

55548BCOVER, INSTRUMENT PANEL HOLE

main55548-60050-A1i201508-201608

FLAXEN,TRIM0#

main55548-60050-C0supersedes 55548-60050-C0i201508-201608

BLACK,TRIM2#,4#

main55548-60050-E1i201708-202104

NEUTRAL BEIGE,TRIM47

55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1

main55633-60040i201201-201508

58803CBOX SUB-ASSY, CONSOLE CUP HOLDER

main58803-60030-A1i201201-201508

SHELL,TRIM0#,W(WOOD GRAIN)

main58803-60030-C0i200709-201201

BLACK,TRIM1#,W(WOOD GRAIN)

main58803-60030-C1i201201-201508

BLACK,TRIM2#,W(WOOD GRAIN)

main58803-60030-E0i200709-201201

DK. BROWN,TRIM4#,W(WOOD GRAIN)

main58803-60310-A0i201508-201708

FLAXEN,TRIM0#

main58803-60310-C0i201508-201708

BLACK,TRIM2#,4#

main58803-60310-C2i201908-202104

BLACK/SILVER HAIRLINE,TRIM2#,42,46

main58803-60310-E0i201708-201908

NEUTRAL BEIGE,TRIM47

main58803-60310-E1i201908-202104

NEUTRAL BEIGE/SILVER,TRIM47

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-60510-C0i200709-201201

BLACK,TRIM1#,W(WOOD GRAIN)

main58804-60510-E0i200709-201201

DK. BROWN,TRIM4#,W(WOOD GRAIN)

main58804-60A30-A1i201201-201508

SHELL,TRIM0#,W(WOOD GRAIN)

main58804-60A30-C1i201201-201508

BLACK,TRIM2#,W(WOOD GRAIN)

main58804-60G80-A3i201508-201602

FLAXEN,TRIM0#

main58804-60G80-C2i201508-201602

BLACK,TRIM2#,4#

main58804-60G81-A3i201603-201708

FLAXEN,TRIM0#

main58804-60G81-C2i201708-202104

BLACK,TRIM2#,42,46

main58804-60G81-E0i201708-202104

NEUTRAL BEIGE,TRIM47

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-60050-A0i201201-201508

SHELL,TRIM0#,W(WOOD GRAIN)

main58805-60050-C0i201201-201508

BLACK,TRIM2#,W(WOOD GRAIN)

main58805-60050-E0i200709-201201

DK. BROWN,TRIM4#,W(WOOD GRAIN)

main58805-60300-A1i201508-201708

FLAXEN,TRIM0#

main58805-60300-C0i201508-201708

BLACK,TRIM2#,4#

main58805-60300-E0i201708-202104

NEUTRAL BEIGE,TRIM47

58825APOCKET, CONSOLE BOX

main58806-60080i201508-201708

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-60620-C0i200709-201201

BLACK,TRIM1#

main58901-60620-E0i200709-201201

DK. BROWN,TRIM4#

main58901-60740-A1i201201-201411

SHELL,TRIM0#

main58901-60740-C1i201201-201411

BLACK,TRIM2#

main58901-60741-A1i201412-201508

SHELL,TRIM0#

main58901-60741-C1i201412-201508

BLACK,TRIM2#

main58901-60741-A3supersedes 58901-60830-A2i201508-201708

SEAT COVER MATERIAL-NATURAL LEATHER,FLAXEN,TRIM0#

main58901-60741-C3supersedes 58901-60830-C2i201708-201908

WITHOUT(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,42,46

main58901-60741-C5i201908-202104

WITHOUT(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/SLV/CAMEL,TRIM25

main58901-60741-E0i201708-202104

WITHOUT(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER,NEUTRAL BEIGE,TRIM47

main58901-60830-E0i201708-201808

WITHOUT(COOL BOX),NEUTRAL BEIGE,TRIM47

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-60160-C0i200709-201010

BLACK,TRIM1#

main58903-60160-E0i200709-201010

DK. BROWN,TRIM4#

main58903-60161-C0i201011-201201

BLACK,TRIM1#

sub58903-60909

main58903-60161-E0i201011-201201

DK. BROWN,TRIM4#

sub58903-60909

main58903-60350-A0i201201-201508

SHELL,TRIM0#

main58903-60350-C0i201201-201508

BLACK,TRIM2#

main58903-60690-A0i201508-201708

FLAXEN,TRIM0#

main58903-60690-C0i201508-201708

BLACK,TRIM2#,4#

main58903-60690-E0i201708-202104

NEUTRAL BEIGE,TRIM47

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-60200-C0i200709-201201

BLACK,TRIM1#

main58905-60200-E0i200709-201201

DK.BROWN,TRIM4#

main58905-60430-A2i201201-201508

SHELL,TRIM0#

main58905-60430-C2i201201-201508

BLACK,TRIM2#

main58905-60430-A5supersedes 58905-60550-A2i201508-201708

SEAT COVER MATERIAL-NATURAL LEATHER,FLAXEN,TRIM0#

main58905-60430-C5supersedes 58905-60550-C2i201708-201908

WITHOUT(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,42,46

main58905-60430-C7i201908-202104

WITHOUT(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/SLV/CAMEL,TRIM25

main58905-60430-E0i201708-202104

WITHOUT(COOL BOX)&SEAT COVER MATERIAL-NATURAL LEATHER,NEUTRAL BEIGE,TRIM47

main58905-60550-E0i201708-201808

WITHOUT(COOL BOX),NEUTRAL BEIGE,TRIM47

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-60060i200709-201201

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-60040i200709-201201

58916MAT, BOX BOTTOM

main58916-60090i200709-201201

58941ACOVER, PARKING BRAKE HOLE

main58809-60060-A0i201201-201508

SHELL,TRIM0#

main58809-60060-C0i201201-201508

BLACK,TRIM2#

main58809-60060-E0i200709-201201

DK. BROWN,TRIM4#

main58809-60110-A0i201508-201708

FLAXEN,TRIM0#

main58809-60110-C0i201508-201708

BLACK,TRIM2#,4#

main58809-60110-E1i201708-202104

NEUTRAL BEIGE,TRIM47

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60030×2i200709-201201

58959CCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×4i200709-201201

58971LOCK, CONSOLE COMPARTMENT DOOR

main58971-60030i200709-201201

main58971-60060i201201-201508

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58993-60090i200709-200907

main86719-60310i201201-201205

GUAM OR SAIPAN SPEC

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-60070i201508-202104

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-60080i200709-201201

8606

8714

8715

9011906951

main90119-06951

9011908063

main90119-08063

9015950311

main90159-50311

9167380616

main91673-80616

9167380820

main91673-80820

9354054012

main93540-54012

9356054012

main93560-54012

9356055016

main93560-55016

30 parts on this diagram · 2 diagrams in section
