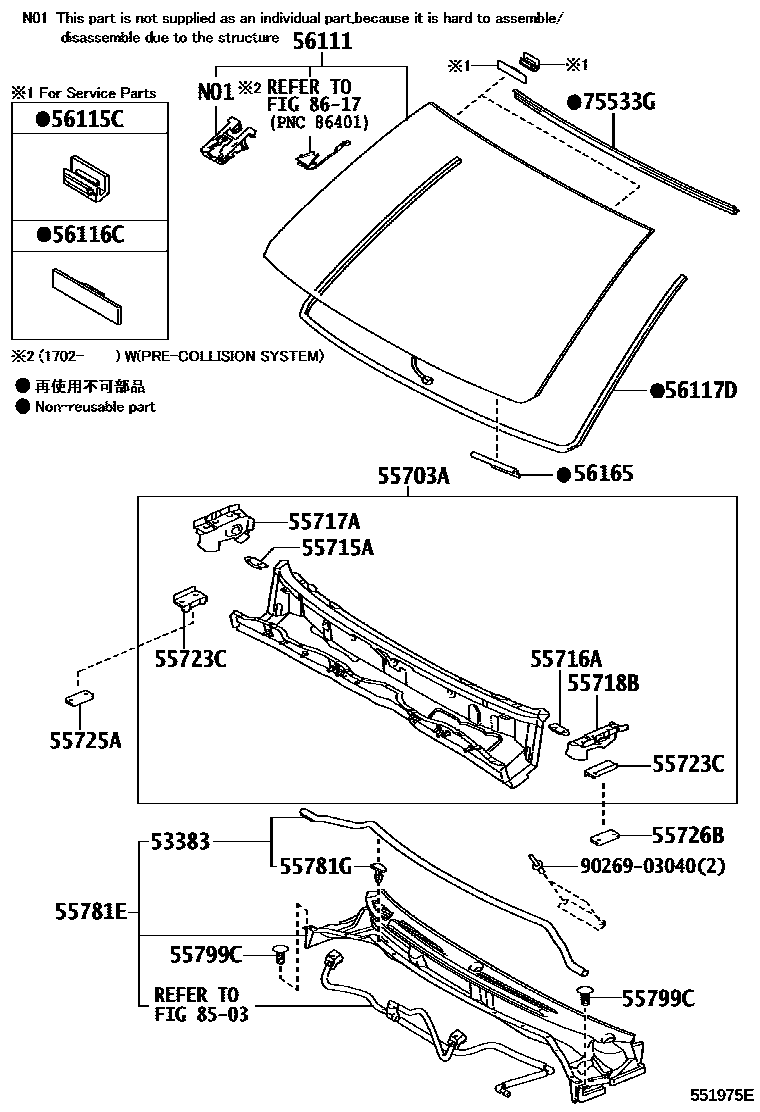

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
55703APANEL SUB-ASSY, COWL TOP, INNER
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55717APANEL, COWL TOP SIDE, INNER RH
55718BPANEL, COWL TOP SIDE, INNER LH
55723CREINFORCEMENT, COWL TOP SIDE, RH
55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH
55726BREINFORCEMENT, HOOD HINGE MOUNTING, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
WITHOUT(COLD AREA SPEC)
WITHOUT(COLD AREA SPEC)
55781GCLIP, COWL TOP VENTILATOR LOUVER
55799CCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
*LAM,T=5.36,GREEN,WINDSHIELD DEICER-WITHOUT
*EHL,T=5.36,GREEN,INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)
*LAM,T=5.36,GREEN,WINDSHIELD DEICER-WITHOUT
*LAM,T=5.36,GREEN,INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)
*LAM,T=5.36,GREEN,INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)
INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)
PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)
PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)
INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)
PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)
INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)
PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)
56115CSTOPPER, WINDSHIELD GLASS
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
L=2914; L=2914,WINDSHIELD DEICER-WITHOUT
56165COVER, FRONT WINDOW INNER MOULDING, LH
75533GMOULDING, WINDSHIELD, OUTSIDE
8503WINDSHIELD WASHER
8617PRE-COLLISION SYSTEM
9026903040
main90269-03040
21 parts on this diagram · 1 diagram in section
