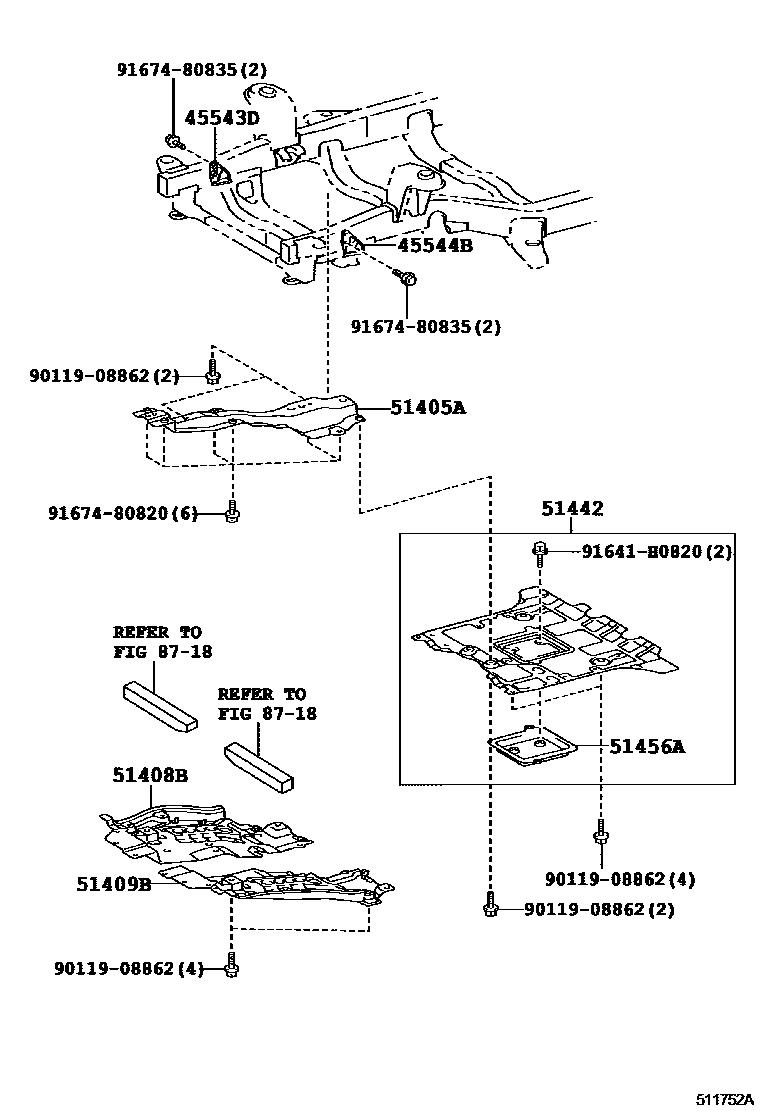

SUSPENSION CROSSMEMBER & UNDER COVER

45543DPROTECTOR, STEERING RACK BOOT, RH

main45543-60020iURJ200200709-201201

45544BPROTECTOR, STEERING RACK BOOT, LH

main45544-60020iURJ200200709-201201

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-60200iURJ200200709-201201

main51405-60250iURJ200201201-201508

51408BCOVER SUB-ASSY, ENGINE UNDER, RH

main51408-60030iURJ200200709-201201

51409BCOVER SUB-ASSY, ENGINE UNDER, LH

main51409-60030iURJ200200709-201201

main51409-60080iURJ200201201-201508

51442COVER, ENGINE UNDER, NO.2

main51420-60070iURJ200200709-201201

51456ASEAL, ENGINE UNDER COVER, REAR

main51456-60070iURJ200200709-201201

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

9011908862

main90119-08862

91641H0820

main91641-H0820

9167480820

main91674-80820

9167480835

main91674-80835

12 parts on this diagram · 1 diagram in section
