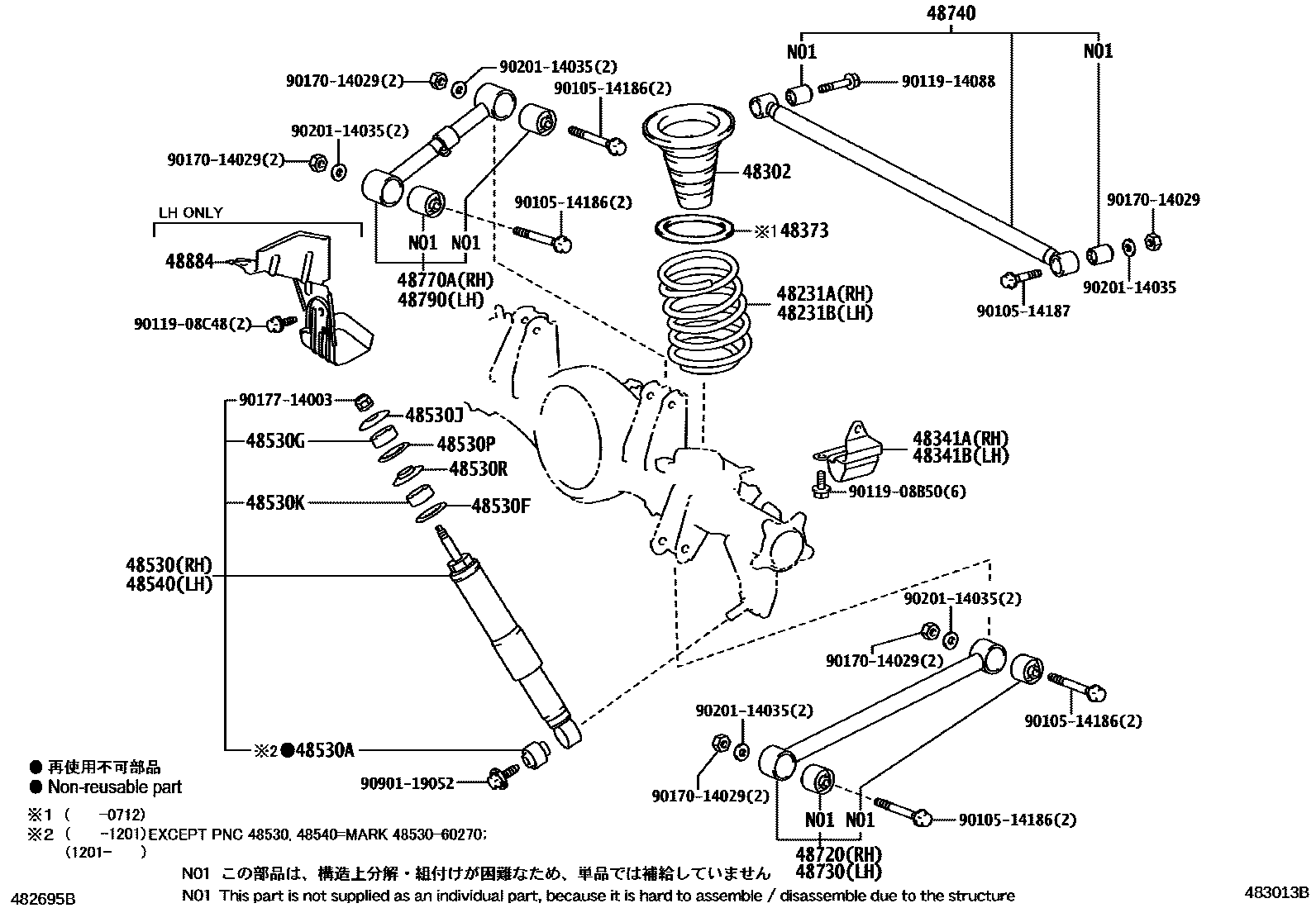

REAR SPRING & SHOCK ABSORBER
48231ASPRING, COIL, REAR RH
URBAN STYLE/TRD-PACKAGE(20INCH)
48231BSPRING, COIL, REAR LH
URBAN STYLE/TRD-PACKAGE(20INCH)
48302SPRING SUB-ASSY, HOLLOW
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48373SPACER, REAR SPRING
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-60140,MEXICO SPEC
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530FRETAINER, SHOCK ABSORBER CUSHION(FOR REAR)
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
48530RRETAINER, CUSHION, NO.3(FOR REAR SHOCK ABSORBER)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-60140,MEXICO SPEC
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
48884INSULATOR, REAR STABILIZER CONTROL TUBE
9010514186
main90105-14186
9010514187
main90105-14187
9011908B50
main90119-08B50
9011908C48
main90119-08C48
9011914088
main90119-14088
9017014029
main90170-14029
9017714003
main90177-14003
9020114035
main90201-14035
9090119052
main90901-19052
30 parts on this diagram · 3 diagrams in section
