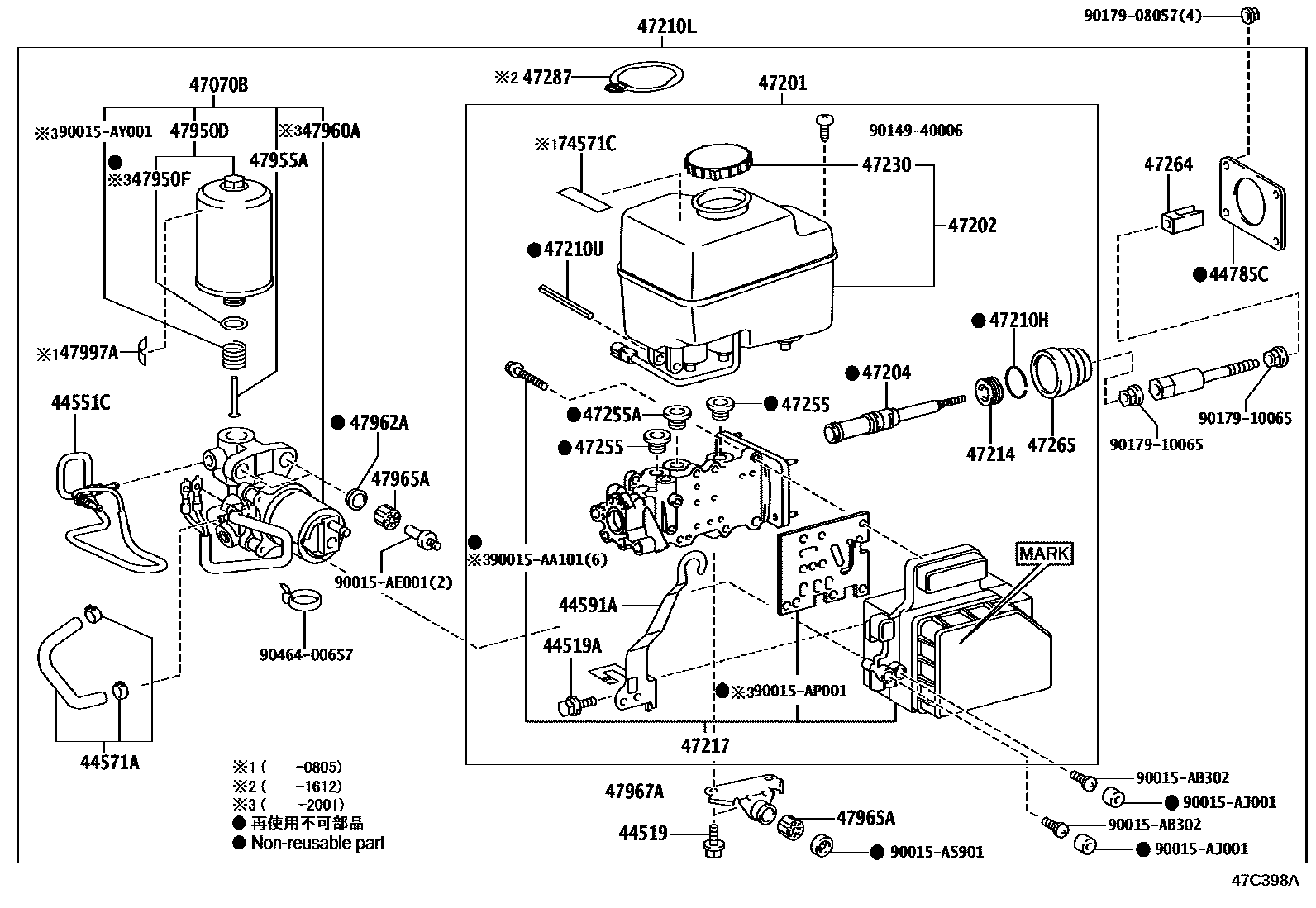

BRAKE MASTER CYLINDER

44519BOLT, BRAKE ACTUATOR

main44519-24020×2i200709-200905

44519ABOLT(FOR BRAKE BOOSTER PUMP)

main44519-24020i200709-200905

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-60050i200709-200905

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-60020i200709-200905

44591ABRACKET, BRAKE ACTUATOR, NO.1

main44591-60070i200709-200905

44785CGASKET, BRAKE BOOSTER

main44785-60020i200709-201201

47070BPUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR

main47070-60040i200709-200905

main47070-60060i200907-201201

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47025-60520supersedes 47025-60560i201201-201301

PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR

main47025-60550supersedes 47025-60560i201301-201508

PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR

main47052-60640supersedes 47052-60631i201508-202001

PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE

main47052-60641supersedes 47052-60631i202001-202104

PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-60210i201508-202104

47204PISTON, MASTER CYLINDER

main47026-60160i201201-201508

47210HRING, SNAP(FOR BRAKE MASTER CYLINDER)

main90520-32012i200709-200905

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-60480supersedes 47050-60510i201201-201301

PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR

main47050-60500supersedes 47050-60510i201301-201508

PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR

main47050-60640supersedes 47050-60631i201508-201912

PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE

main47050-60641supersedes 47050-60631i202001-202104

PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803i200709-200905

47214PLUG, MASTER CYLINDER

main47027-60090i200709-200905

47217SOLENOID, MASTER CYLINDER

main47217-60370supersedes 47217-60400i201201-201301

PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR

main47217-60390supersedes 47217-60400i201301-201508

PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR

main47217-60530supersedes 47217-60521i201508-202001

PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE

main47217-60531supersedes 47217-60521i202001-202104

PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-24010i200709-200809

main47230-47090i201612-202104

main47230-58010i200809-200905

main47230-60210i200907-201007

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010×2i200709-200905

47255AGROMMET, MASTER CYLINDER RESERVOIR, NO.2

main31417-35010i200907-201201

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-60020i200709-200905

47265BOOT, MASTER CYLINDER

main90029-70001i200709-200905

47287LABEL, BRAKE FLUID INFORMATION

main47287-20020i200709-200805

main47287-60180i200805-201201

main47287-60181i201201-201508

47950DACCUMULATOR ASSY, BRAKE BOOSTER

main47950-60030i200709-200905

47950FRING, O(FOR BRAKE BOOSTER ACCUMULATOR)

main90301-13014i200709-200905

47955APIPE, BRAKE BOOSTER ACCUMULATOR

main47955-60020i200709-200905

47960APUMP ASSY, BRAKE BOOSTER

main47960-60050i201007-201008

main47960-60090i200709-200905

47962ACOLLAR, BRAKE BOOSTER PUMP

main47962-60090×2i200709-200905

47965ABUSH, BRAKE BOOSTER PUMP

main47965-24010×3i200907-201201

47967ABRACKET, BRAKE BOOSTER PUMP, NO.1

main47967-60090i200709-200905

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-60050i200709-200805

74571CLABEL, BRAKE FLUID INFORMATION

main47288-60020i200709-200805

90015AA101

main90015-AA101

90015AB302

main90015-AB302

90015AE001

main90015-AE001

90015AJ001

main90015-AJ001

90015AP001

main90015-AP001

90015AS901

main90015-AS901

90015AY001

main90015-AY001

9014940006

main90149-40006

9017908057

main90179-08057

9017910065

main90179-10065

9046400657

main90464-00657

41 parts on this diagram · 1 diagram in section
