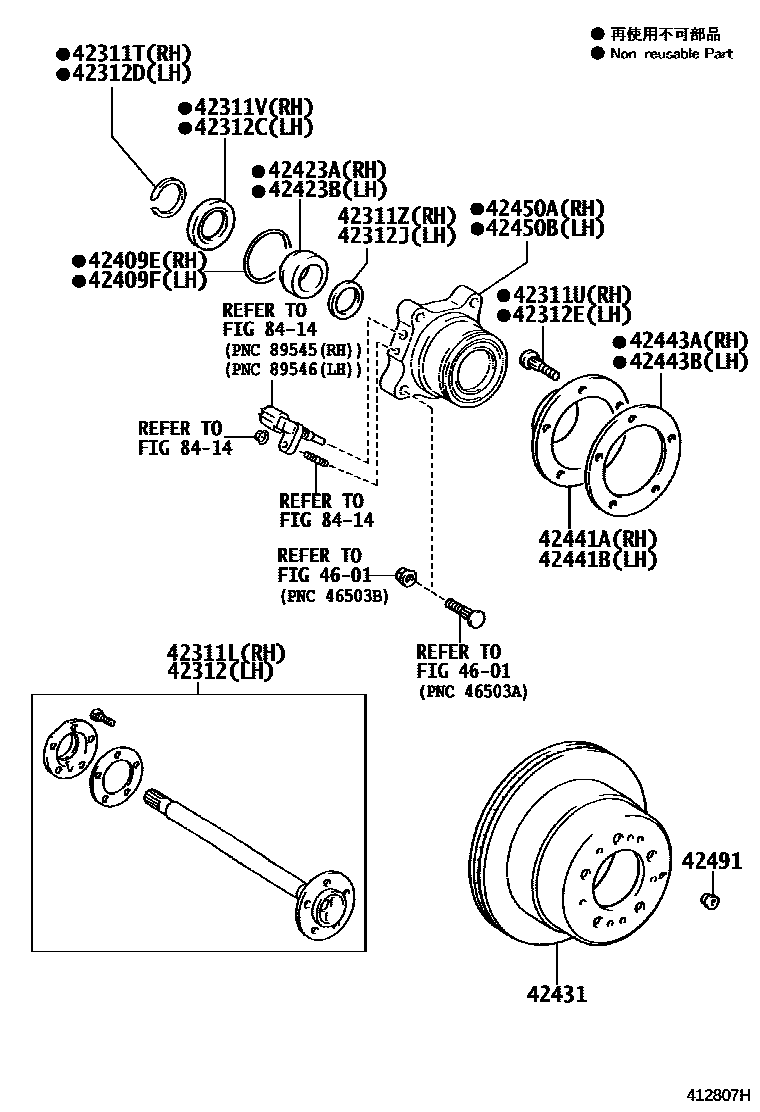

REAR AXLE SHAFT & HUB

42311LSHAFT, REAR AXLE, RH

main42301-60030iURJ200200709-201201

42311TRING, SNAP(FOR REAR AXLE SHAFT RH)

main90520-46014iURJ200200709-201201

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02077×5iURJ200200709-200711

main90942-02083×5iURJ200200712-201201

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90310-63001iURJ200200709-201201

42311ZWASHER(FOR REAR AXLE SHAFT RH)

main90208-49001iURJ200200709-201201

42312SHAFT, REAR AXLE, LH

main42301-60030iURJ200200709-201201

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90310-63001iURJ200200709-201201

42312DRING, SNAP(FOR REAR AXLE SHAFT LH)

main90520-46014iURJ200200709-201201

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02077×5iURJ200200709-200711

main90942-02083×5iURJ200200712-201201

42312JWASHER(FOR REAR AXLE SHAFT LH)

main90208-49001iURJ200200709-201201

42409ERING, O (FOR REAR AXLE BEARING RH)

main90301-88004iURJ200200709-201201

42409FRING, O (FOR REAR AXLE BEARING LH)

main90301-88004iURJ200200709-201201

42423ARETAINER, REAR AXLE BEARING, INNER RH

main42423-34040iURJ200200709-201201

42423BRETAINER, REAR AXLE BEARING, INNER LH

main42423-34040iURJ200200709-201201

42431DISC, REAR

main42431-60290×2iURJ200200709-201201

42441ADEFLECTOR, BRAKE DRUM OIL RH

main42441-34020iURJ200200709-201201

42441BDEFLECTOR, BRAKE DRUM OIL LH

main42441-34020iURJ200200709-201201

42443AGASKET, BRAKE DRUM OIL DEFLECTOR, RH

main42443-60020iURJ200200709-201201

42443BGASKET, BRAKE DRUM OIL DEFLECTOR, LH

main42443-60020iURJ200200709-201201

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-60070iURJ200200709-201201

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42460-60030iURJ200200709-201201

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iURJ200200709-201201

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

8414ABS & VSC

→ Go to FIG 84-14

24 parts on this diagram · 1 diagram in section
