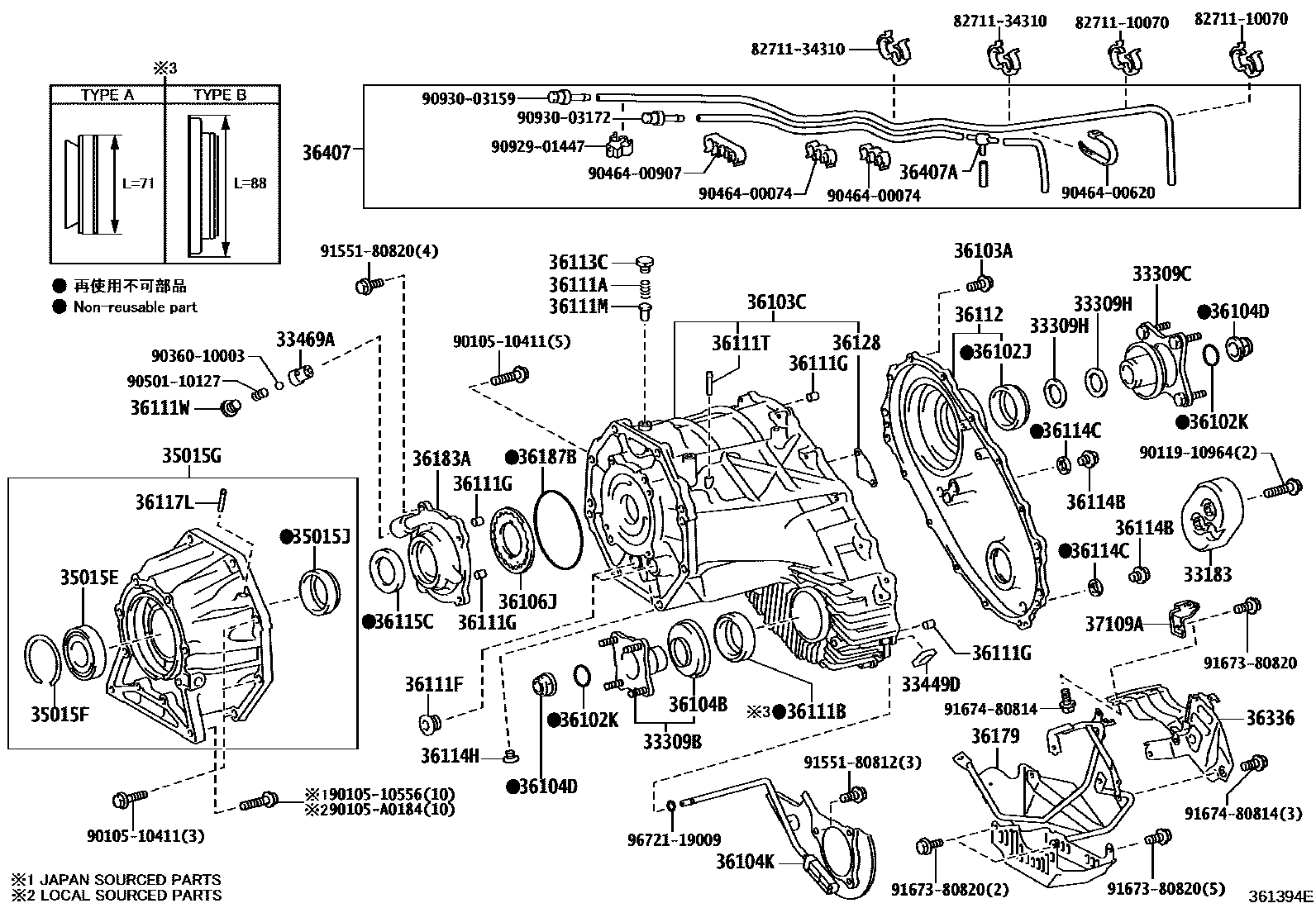

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1

33183DAMPER, TRANSFER DYNAMIC

main33183-60060iURJ200201201-201508

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-34020iURJ200200709-201201

main33309-34030iURJ200201502-201508

PNC 36111B=TYPE B

main33309-34031iURJ200201811-202103

main33309-60170iURJ200202103-202104

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-60110iURJ200200709-201201

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-34010×2iURJ200200709-201201

T=0.8

33449DMAGNET (FOR TRANSFER CASE)

main33449-60010iURJ200200709-201201

33469ASEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING)

main33469-60020iURJ200201201-201508

35015EBEARING, RADIAL BALL(FOR TRANSFER CASE ADAPTER)

main90363-40084supersedes 90363-A0009iURJ200200709-200905

TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J)

35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)

main90520-A0045iURJ200201405-201508

(L)

main90521-80004iURJ200200709-201201

35015GADAPTER, TRANSFER, REAR

main35015-60220iURJ200201508-202104

main35015-0C040supersedes 35015-60210iURJ200200811-200905

TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(L)

main35015-60210iURJ200200709-200905

TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J)

35015JSEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)

main90311-51008iURJ200200709-201201

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-50040iURJ200200709-201201

main90311-50065iURJ200202103-202104

36102KRING, O

main90301-31003×2iURJ200200709-201201

36103ABOLT (FOR TRANSFER CASE)

main91551-00845×14iURJ200200709-201201

*8-1.25PX45-22

36103CCASE, TRANSFER, FRONT

main36103-60360iURJ200200709-201201

main36103-60361iURJ200201905-202104

36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

main33325-34020iURJ200200709-201201

main33325-34030iURJ200201502-201508

PNC 36111B=TYPE B

main33325-34031iURJ200201811-202103

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-24011×2iURJ200201201-201508

36104KSEPARATOR SUB-ASSY, TRANSFER OIL

main36104-34010iURJ200200709-201201

36106JROTOR, TRANSFER OIL PUMP

main36106-34010iURJ200201508-202104

36111ASPRING, COMPRESSION (FOR TRANSFER CASE)

main90501-20091iURJ200200709-201201

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-50039iURJ200200709-201201

main90311-50055iURJ200201502-201508

TYPE B:REFER ILLUST.

main90311-50066iURJ200202103-202104

36111FPLUG (FOR TRANSFER CASE)

main90341-24006×2iURJ200200709-201201

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214×4iURJ200200709-201201

L=14,OD=10

36111MPIN, SLOTTED SPRING (FOR TRANSFER CASE)

main90241-07003iURJ200200709-201201

36111TTUBE (FOR TRANSFER CASE)

main90441-05001iURJ200200709-201201

36111WPLUG, TIGHT NO.2(FOR TRANSFER CASE)

main90341-18039iURJ200200709-201201

36112CASE, TRANSFER, REAR

main36104-60051iURJ200200709-201009

main36104-60052iURJ200201009-201201

main36104-60053iURJ200201905-202104

36113CPLUG (FOR TRANSFER CASE)

main90341-14012iURJ200200709-201201

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006×2iURJ200200709-201201

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008×2iURJ200200709-201201

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90341-14008iURJ200200709-201201

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-51009iURJ200200709-201201

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iURJ200200709-201201

36128DEFLECTOR, BREATHER OIL

main36128-34010iURJ200200709-201201

main36128-60080iURJ200202103-202104

T=1.4

36179PROTECTOR, TRANSFER CASE LOWER

main36179-60010iURJ200200709-201201

36183APLATE, TRANSFER OIL PUMP

main36183-34011iURJ200200709-201201

36187BRING, O (FOR TRANSFER OIL STRAINER)

main96721-31130iURJ200200709-201201

36336INSULATOR, TRANSFER HEAT

main36336-60030iURJ200200709-201201

36407HOSE SUB-ASSY, TRANSFER BREATHER

main36407-60190iURJ200200709-201201

main36407-60310iURJ200201508-202104

36407AWAY, 3(FOR TRANSFER BREATHER HOSE)

main90413-04001iURJ200200709-201201

37109ABRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR

main37109-60080iURJ200200709-201201

8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10070

8271134310WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34310

9010510411

main90105-10411

9010510556

main90105-10556

90105A0184

main90105-A0184

9011910964

main90119-10964

9036010003

main90360-10003

9046400074

main90464-00074

9046400620

main90464-00620

9046400907

main90464-00907

9050110127

main90501-10127

9092901447

main90929-01447

9093003159

main90930-03159

9093003172

main90930-03172

9155180812

main91551-80812

9155180820

main91551-80820

9167380820

main91673-80820

9167480814

main91674-80814

9672119009

main96721-19009

59 parts on this diagram · 2 diagrams in section
