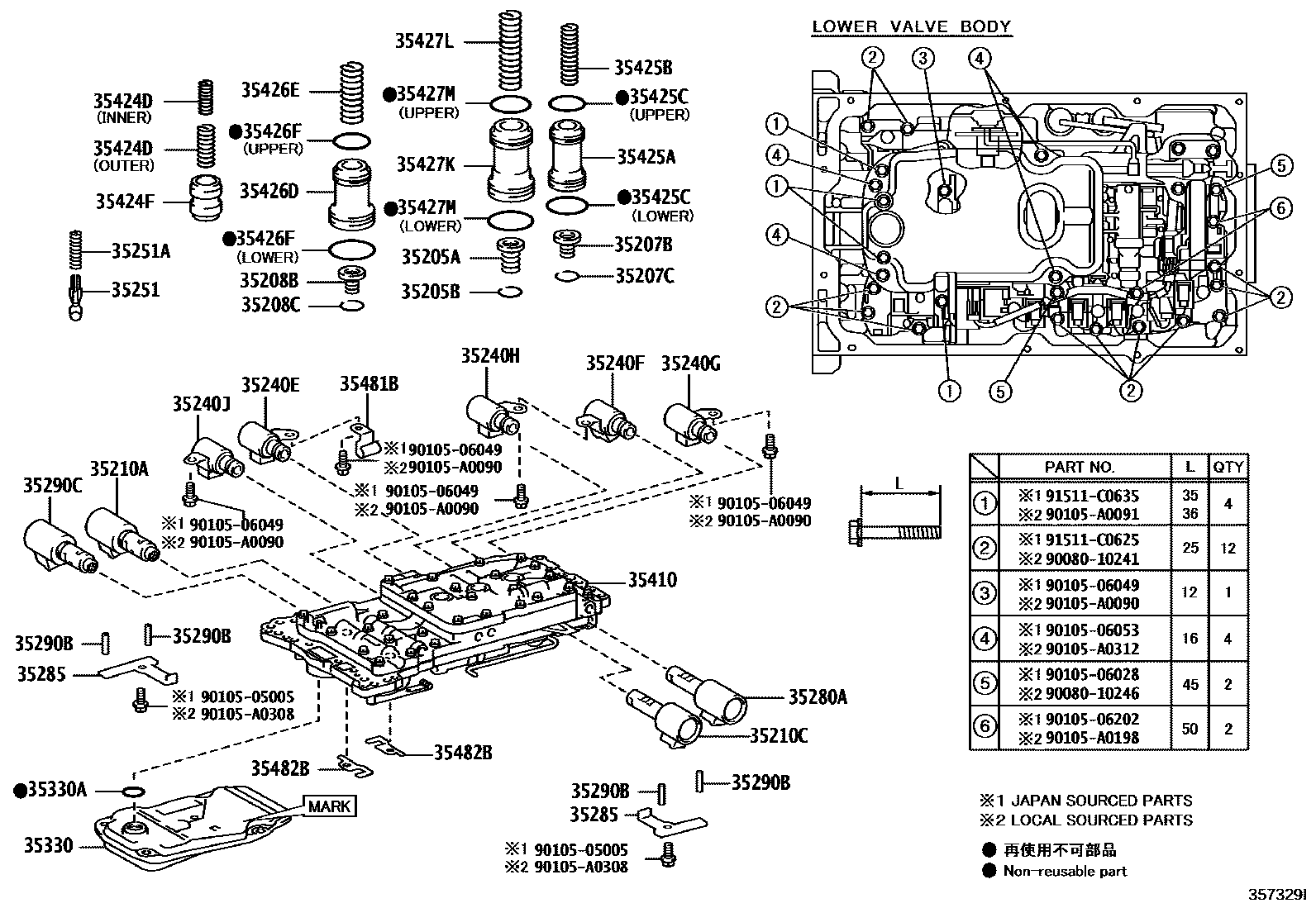

VALVE BODY & OIL STRAINER (ATM)

0001 1AB60F 0002 1AE80F 0003 1AB60F 0004 1AE80F

35205ASPRING SUB-ASSY, B-3 ACCUMULATOR

main35205-60010iURJ200201201-201508

35205BRING, HOLE SNAP (FOR B-3 ACCUMULATOR SPRING)

main90521-22004iURJ200200709-201201

35207BSPRING SUB-ASSY, C-2 ACCUMULATOR

main35205-34020iURJ200200709-201201

35207CRING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)

main90521-22004iURJ200200709-201201

35208BSPRING SUB-ASSY, C-3 ACCUMULATOR

main35205-34030iURJ200200709-201201

35208CRING, HOLE SNAP (FOR C-3 ACCUMULATOR SPRING)

main90521-22004iURJ200200709-201201

35210AVALVE, SOLENOID(SL1)

main35210-50010iURJ200200709-201201

main35270-60010iURJ200201508-201806

main35270-60030iURJ200201806-202104

35210CVALVE, SOLENOID(SL2)

main35210-50010iURJ200200709-201201

main35270-60020iURJ200201508-201903

main35270-60060iURJ200201904-202104

35240EVALVE, SOLENOID(S1)

main35240-50030iURJ200200709-201201

35240FVALVE, SOLENOID(S2)

main35240-50040iURJ200200709-201201

35240GVALVE, SOLENOID(S3)

main35240-50030iURJ200200709-201201

35240HVALVE, SOLENOID(S4)

main35240-50050iURJ200200709-201201

35240JVALVE, SOLENOID(SR)

main35240-50060iURJ200201201-201508

35251BODY, CHECK BALL

main35251-30020iURJ200201201-201508

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90501-03005iURJ200200709-201201

main90501-A0116iURJ200201403-201508

(L)

35280AVALVE, SOLENOID(SLU)

main35280-34010iURJ200200709-201201

main35280-60020iURJ200201508-202104

35285PLATE, SOLENOID LOCK

main35285-50020×2iURJ200200709-201201

main35285-60030iURJ200201508-202104

NO.1:REFER ILLUST.

main35285-60040iURJ200201508-202104

NO.2:REFER ILLUST.

35290BPIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID)

main90250-03045×4supersedes 90250-A0003iURJ200200709-200905

TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J)

35290CVALVE, SOLENOID(SLT)

main35290-34010iURJ200200709-201201

main35290-60050iURJ200201508-202104

35330STRAINER ASSY, VALVE BODY OIL

main35330-0C010iURJ200201204-201504

(L),NO MARK

main35330-0C020iURJ200201504-201508

(L),MARK=5

main35330-60060iURJ200201201-201204

main35330-60070iURJ200201504-201508

(J),MARK=5

main35330-60080iURJ200201508-202104

35330ARING, O (FOR OIL STRAINER)

main90301-31014iURJ200200709-201201

35410BODY ASSY, TRANSMISSION VALVE

main35410-60591iURJ200201408-201503

TYPE A:REFER 35-01

main35410-60650iURJ200201508-202104

main35410-60590supersedes 35410-60680iURJ200200709-200905

TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J)

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-16181supersedes 90501-A0134iURJ200200709-200905

TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J),INNER

main90501-24039supersedes 90501-A0134iURJ200200709-200905

TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J),OUTER

35424FVALVE, C-1 ACCUMULATOR

main35424-60030iURJ200200709-201201

35425APISTON, C-2 ACCUMULATOR

main35425-34010iURJ200200709-201201

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-21046iURJ200200709-201201

main90501-A0117iURJ200201405-201508

(L)

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-20008iURJ200200709-201201

UPPER

main90301-28008iURJ200200709-201201

LOWER

35426DPISTON, C-3 ACCUMULATOR

main35426-50020iURJ200201201-201508

35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

main90501-25062supersedes 90501-A0127iURJ200200709-200905

TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J)

35426FRING, O (FOR C-3 ACCUMULATOR PISTON)

main90301-26011iURJ200201201-201508

UPPER

main90301-34011iURJ200200709-201201

LOWER

35427KPISTON, B-3 ACCUMULATOR

main35427-50020iURJ200200709-201201

35427LSPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)

main90501-26098supersedes 90501-A0106iURJ200200709-200905

TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J)

35427MRING, O (FOR B-3 ACCUMULATOR PISTON)

main90301-23010iURJ200200709-201201

UPPER

main90301-34011iURJ200200709-201201

LOWER

35481BCLAMP, VALVE BODY WIRE HARNESS

main35481-34010iURJ200200709-201201

main35481-50050iURJ200201508-202104

35482BCLAMP, TEMPERATURE SENSOR

main35482-60040×2iURJ200200709-201201

main35482-73010iURJ200201508-202104

9008010241

main90080-10241

9008010246

main90080-10246

9010505005

main90105-05005

9010506028

main90105-06028

9010506049

main90105-06049

9010506053

main90105-06053

9010506202

main90105-06202

90105A0090

main90105-A0090

90105A0091

main90105-A0091

90105A0198

main90105-A0198

90105A0308

main90105-A0308

90105A0312

main90105-A0312

91511C0625

main91511-C0625

91511C0635

main91511-C0635

49 parts on this diagram · 4 diagrams in section
