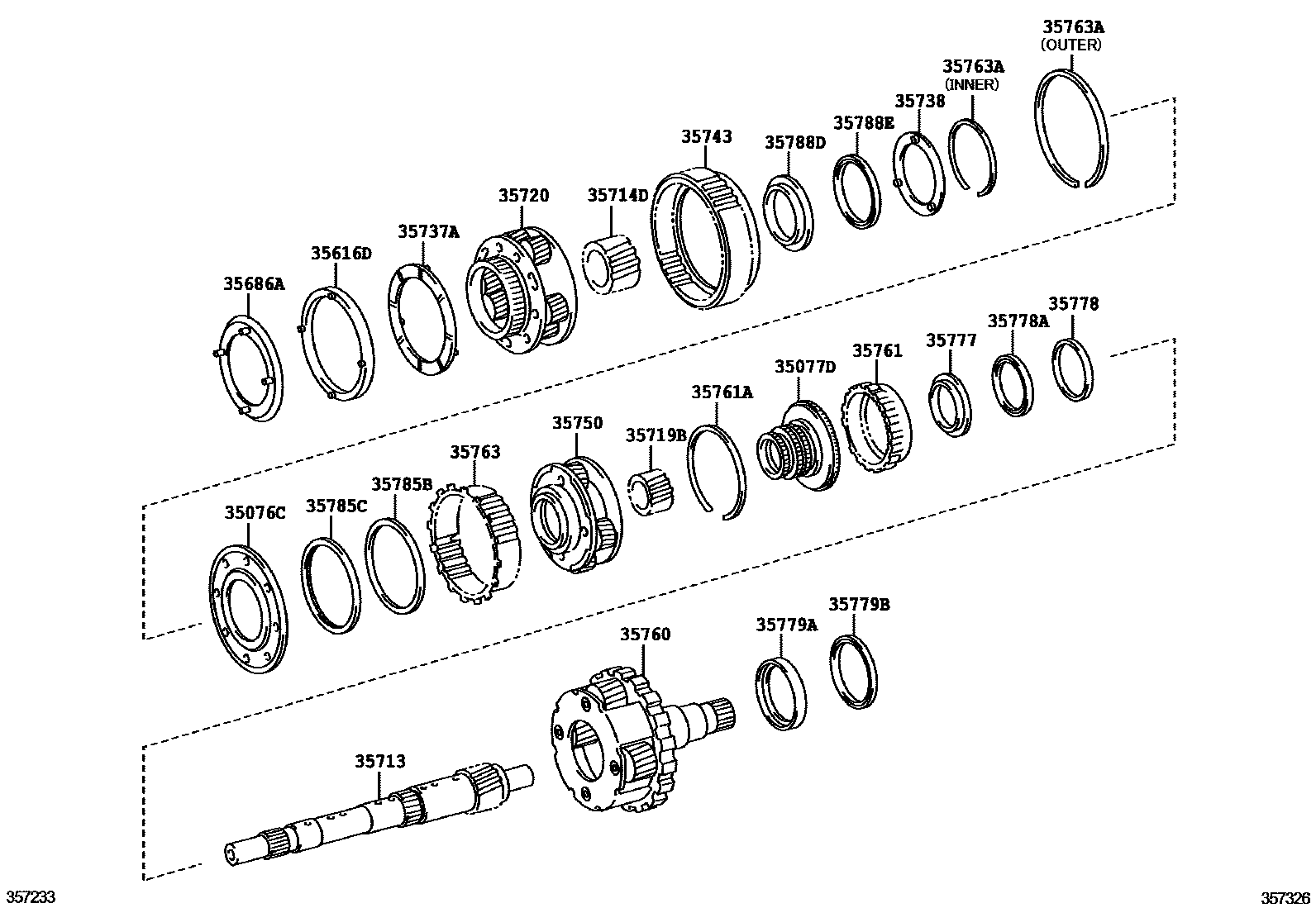

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35076CFLANGE SUB-ASSY, FRONT PLANETARY RING GEAR
35077DFLANGE SUB-ASSY, RR PLANETARY RING GEAR
TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J)
35616DWASHER, CLUTCH DRUM THRUST
35686AWASHER, CLUTCH DRUM THRUST, NO.2
35713SHAFT, INTERMEDIATE
TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J)
35719BGEAR, PLANETARY SUN
35720GEAR ASSY, FRONT PLANETARY
35737WASHER, PLANETARY CARRIER THRUST
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35743GEAR, FRONT PLANETARY RING
35750GEAR ASSY, CENTER PLANETARY
35760GEAR ASSY, REAR PLANETARY
TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J)
35761GEAR, REAR PLANETARY RING
TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J)
35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
(J)
(L)
35763GEAR, CENTER PLANETARY RING
35763ARING, SNAP(FOR CENTER PLANETARY RING GEAR)
INNER
OUTER
35777RACE, THRUST BEARING, NO.7
TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J)
35778RACE, THRUST BEARING, NO.8
TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J)
35778ABEARING, THRUST NEEDLE ROLLER
TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J)
35779ARACE, THRUST BEARING, NO.9
TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J)
35779BBEARING, THRUST NEEDLE ROLLER
TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J)
35785BRACE, THRUST BEARING, NO.4
35785CBEARING, THRUST NEEDLE ROLLER
35788DRACE, THRUST BEARING, NO.3
35788EBEARING, THRUST NEEDLE ROLLER
27 parts on this diagram · 2 diagrams in section
