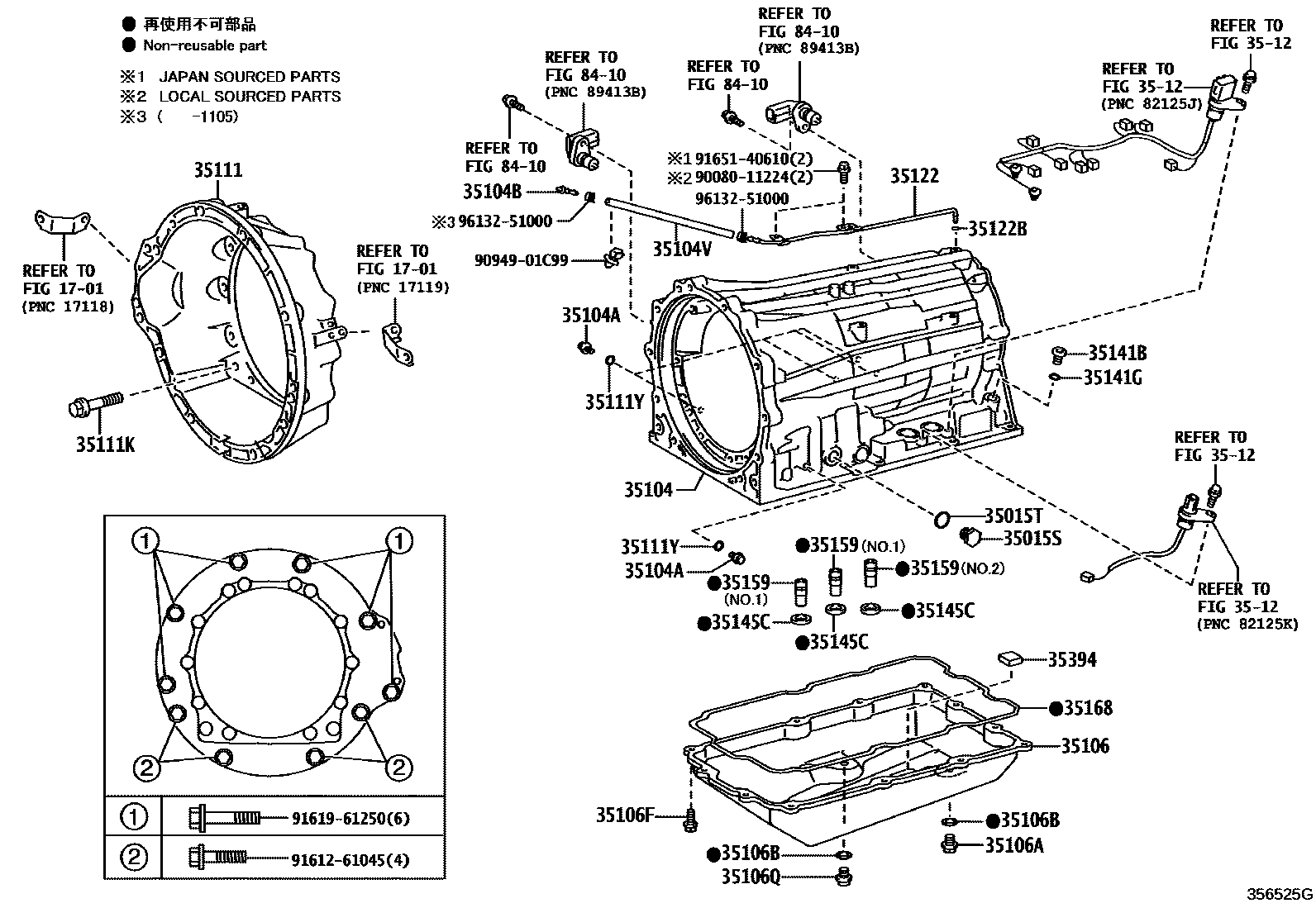

TRANSMISSION CASE & OIL PAN (ATM)

0001 1AB60F 0002 1AE80F

1701MANIFOLD

→ Go to FIG 17-01

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iURJ200200709-201201

35015TRING, O(FOR TRANSMISSION CASE ADAPTER)

main90301-15004iURJ200200709-201201

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-60260iURJ200201508-202104

main35104-0C030supersedes 35104-60250iURJ200200811-200905

TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(L)

main35104-60250iURJ200200709-200905

TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J)

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-14018×2iURJ200201508-202104

main90341-08001×5supersedes 90341-A0001iURJ200200709-200905

TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J)

main90341-A0001×5iURJ200200811-200905

TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(L)

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03188iURJ200200709-201105

main90930-03211iURJ200201508-202104

35104VHOSE (FOR BREATHER PLUG)

main90445-10020iURJ200200709-201201

main90447-11076iURJ200201508-202104

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-60200iURJ200201508-202104

main35106-0C030supersedes 35106-60220iURJ200200811-200905

TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(L)

main35106-60220iURJ200200709-200905

TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J)

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iURJ200200709-201201

main90341-10024iURJ200201508-202104

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010×2iURJ200200709-201201

main35178-60010iURJ200201508-202104

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06A02×11iURJ200201508-202104

main90119-A0401×12iURJ200201307-201402

(L)

main91611-B0625×12iURJ200200709-201201

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iURJ200201201-201508

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-60230iURJ200201508-202104

main35111-0C050supersedes 35111-60190iURJ200200811-200905

TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(L)

main35111-60190iURJ200200904-200905

TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J)

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90105-08479×2iURJ200201508-202104

*8-1.25PX35-30,NO.1

main90105-08482×16iURJ200201508-202104

*8-1.25PX30-27.5,NO.2

main90119-10232×14supersedes 90119-A0272iURJ200200709-201201

*10-1.5PX35-30,TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J)

main90119-A0272×14iURJ200200811-200904

*10-1.5PX35-29.3,TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(L)

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×5iURJ200200709-201201

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main35122-60090iURJ200200709-201201

35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)

main90301-04014iURJ200200709-201201

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iURJ200200709-201201

main90341-24017iURJ200201508-202104

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iURJ200200709-201201

main90301-20013iURJ200201508-202104

35145CGASKET, TRANSAXLE CASE

main35145-60020×3iURJ200200709-201201

35159GASKET, BRAKE DRUM

main35159-0C020supersedes 35159-60030iURJ200200811-200904

TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(L),NO.2

main35159-0C030×2supersedes 35159-60030iURJ200200811-200904

TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(L),NO.1

main35159-60020supersedes 35159-60030iURJ200200709-201201

TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J),NO.2

main35159-60030×2iURJ200200709-201201

TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER)),(J),NO.1

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-60030iURJ200201508-202104

main35168-34010supersedes 35168-34020iURJ200200709-200905

TOWING PACKAGE-WITH(NORTH AMERICA,W(ENGINE OIL COOLER))

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iURJ200200709-201201

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9008011224

main90080-11224

9094901C99

main90949-01C99

9161261045

main91612-61045

9161961250

main91619-61250

9165140610

main91651-40610

9613251000

main96132-51000

31 parts on this diagram · 2 diagrams in section
