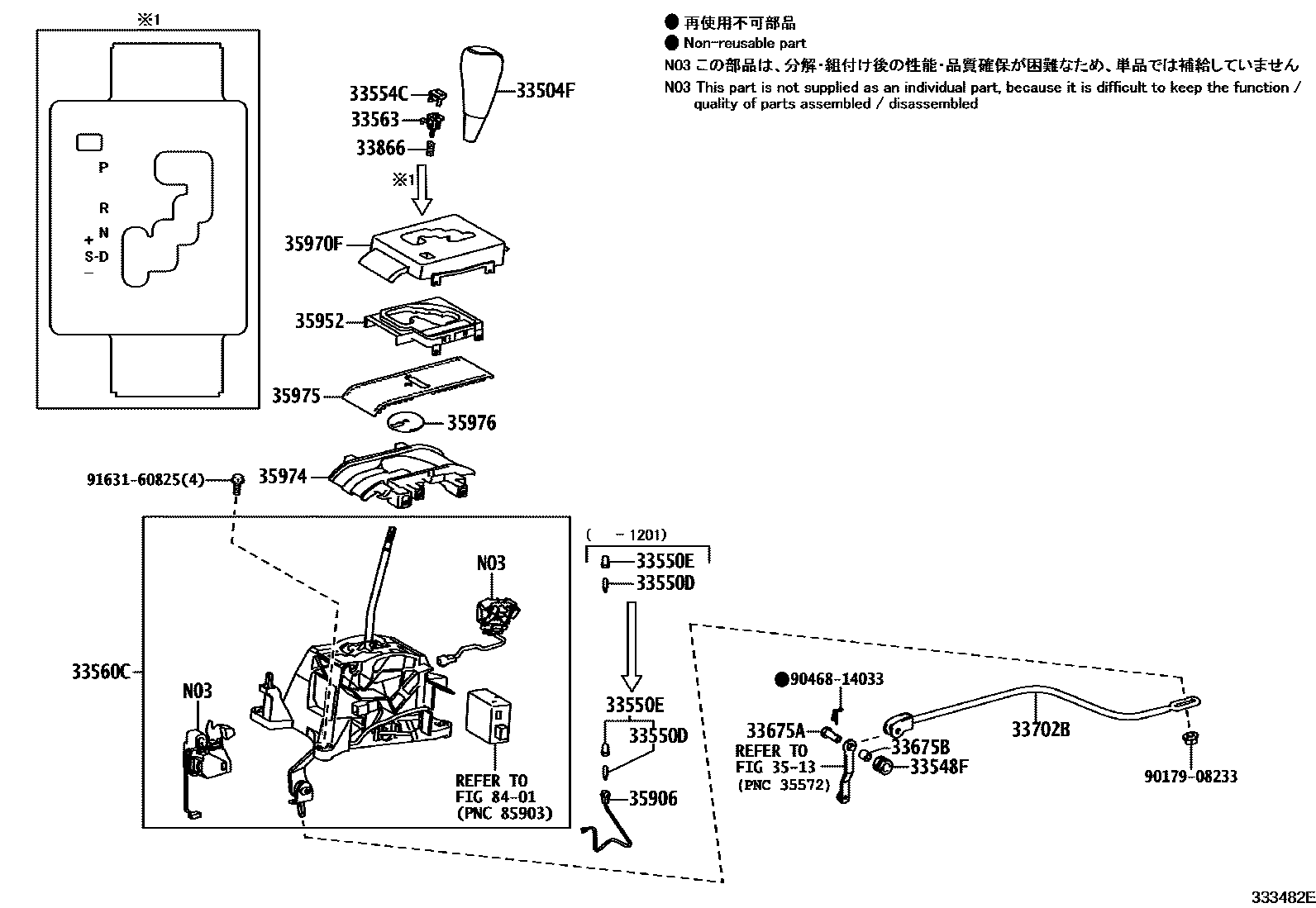

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM2#,42,46
ORCHID BROWN,TRIM0#,47
SHIFT LEVER & KNOB-WOOD & LEATHER,BLACK,TRIM1#
STEERING WHEEL-LEATHER & FAKE WOOD,W(STRG HEATER),BLACK & BROWN,TRIM2#; STEERING WHEEL-LEATHER+FAKE WOOD,BLACK & BROWN,TRIM2#
SHIFT LEVER & KNOB-WOOD & LEATHER,DK. BROWN,TRIM4#
STEERING WHEEL-LEATHER & FAKE WOOD,W(STRG HEATER),ORCHID BROWN & LT.BROWN,TRIM0#; STEERING WHEEL-LEATHER+FAKE WOOD,ORCHID BROWN & LT.BROWN,TRIM0#
STEERING WHEEL-LEATHER & FAKE WOOD,W(STRG HEATER),BLACK & BROWN,TRIM2#; STEERING WHEEL-LEATHER+FAKE WOOD,BLACK & BROWN,TRIM2#
STEERING WHEEL-LEATHER & FAKE WOOD,W(STRG HEATER),ORCHID BROWN & LT.BROWN,TRIM0#; STEERING WHEEL-LEATHER+FAKE WOOD,ORCHID BROWN & LT.BROWN,TRIM0#
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33550FLOOR SHIFT ASSY, TRANSMISSION
33550DBULB, POSITION INDICATOR LAMP
12V 1.2W W/O SOCKET
33550ECAP, POSITION INDICATOR LAMP
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33560CLEVER ASSY, SHIFT, LOWER
33563BUTTON, SHIFT LOCK RELEASE
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33675BBUSH (FOR TRANSMISSION CONTROL ROD)
33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33866SPRING, SHIFT LOCK RELEASE
3513THROTTLE LINK & VALVE LEVER (ATM)
35906WIRE SUB-ASSY, INDICATOR LAMP
35970FHOUSING ASSY, POSITION INDICATOR
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8401SWITCH & RELAY & COMPUTER
9017908233
main90179-08233
9046814033
main90468-14033
9163160825
main91631-60825
23 parts on this diagram · 2 diagrams in section
