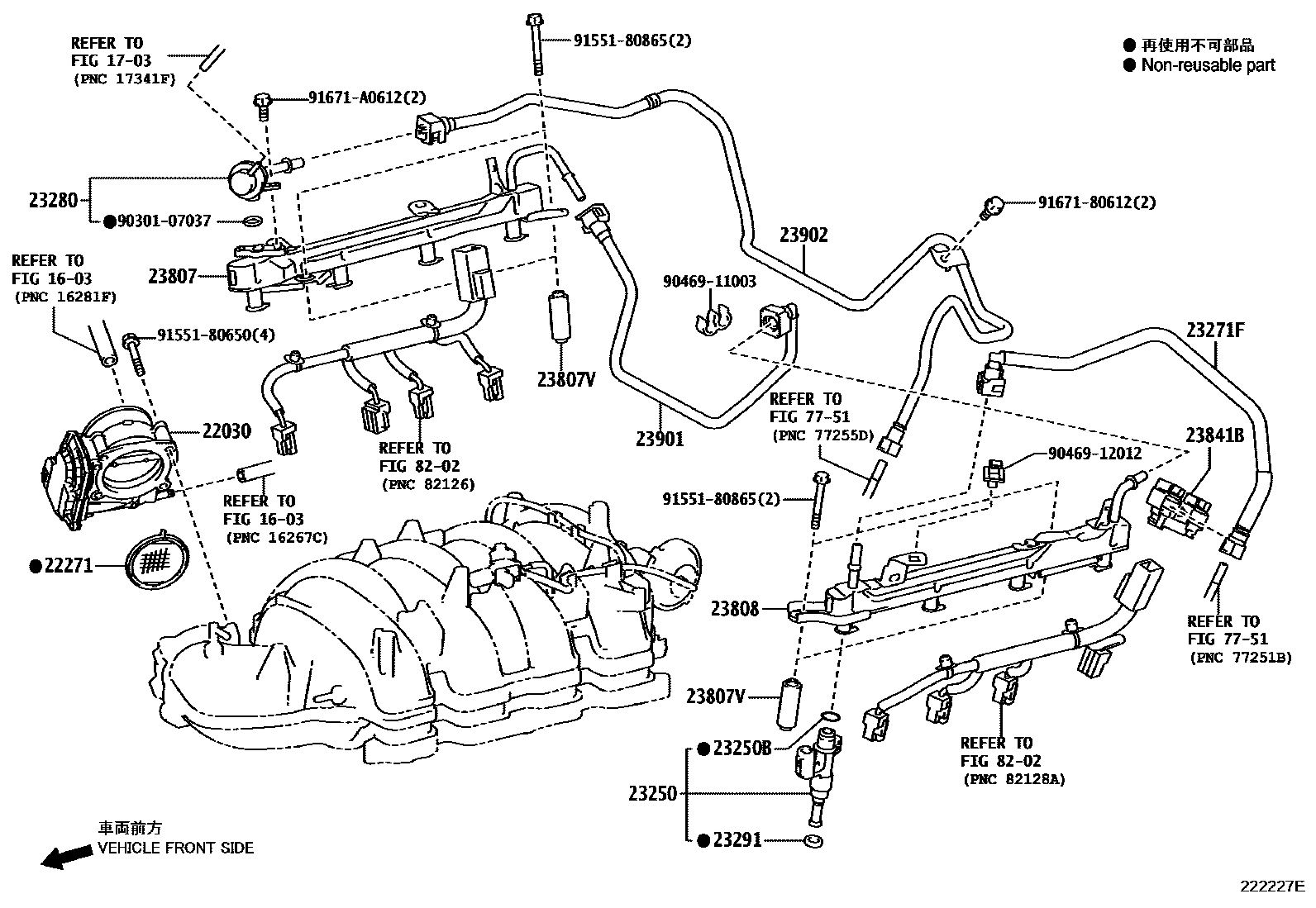

FUEL INJECTION SYSTEM

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1703AIR CLEANER

→ Go to FIG 17-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0S010i3URFE..URJ200200901-201012

*145

main22030-38020i3URFE..URJ200201201-201508

22271GASKET, THROTTLE BODY

main22271-0S010i3URFE..URJ200200901-201012

*145

main22271-38010i3URFE..URJ200201508-202104

23250INJECTOR ASSY, FUEL

main23209-09151×8i3URFE..URJ200200901-201012

(L),*145

main23209-39165×8i3URFE..URJ200200709-200801

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×8i3URFE..URJ200201201-201508

23271FHOSE, FUEL

main23271-38050i3URFE..URJ200200709-201201

23280REGULATOR ASSY, FUEL PRESSURE

main23280-38010i3URFE..URJ200200901-201012

*145

main23280-38011i3URFE..URJ200201203-201508

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×8i3URFE..URJ200200901-201012

*145

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-38030i3URFE..URJ200200709-200903

*119

main23814-38031i3URFE..URJ200200903-201012

*145

main23814-38032i3URFE..URJ200201204-201508

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-38020×4i3URFE..URJ200200901-201012

*145

23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2

main23815-38010i3URFE..URJ200200901-201012

*145

main23815-38011i3URFE..URJ200201204-201508

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-50020i3URFE..URJ200200709-201201

23901TUBE SUB-ASSY, FUEL

main23901-38010i3URFE..URJ200200709-200903

*119

main23901-38011i3URFE..URJ200200903-201012

*145

23902TUBE SUB-ASSY, FUEL

main23902-38010i3URFE..URJ200200709-200903

*119

main23902-38011i3URFE..URJ200200903-201012

*145

7751FUEL TANK & TUBE

→ Go to FIG 77-51

8202WIRING & CLAMP

→ Go to FIG 82-02

9030107037

main90301-07037

9046911003

main90469-11003

9046912012

main90469-12012

9155180650

main91551-80650

9155180865

main91551-80865

9167180612

main91671-80612

91671A0612

main91671-A0612

24 parts on this diagram · 2 diagrams in section
