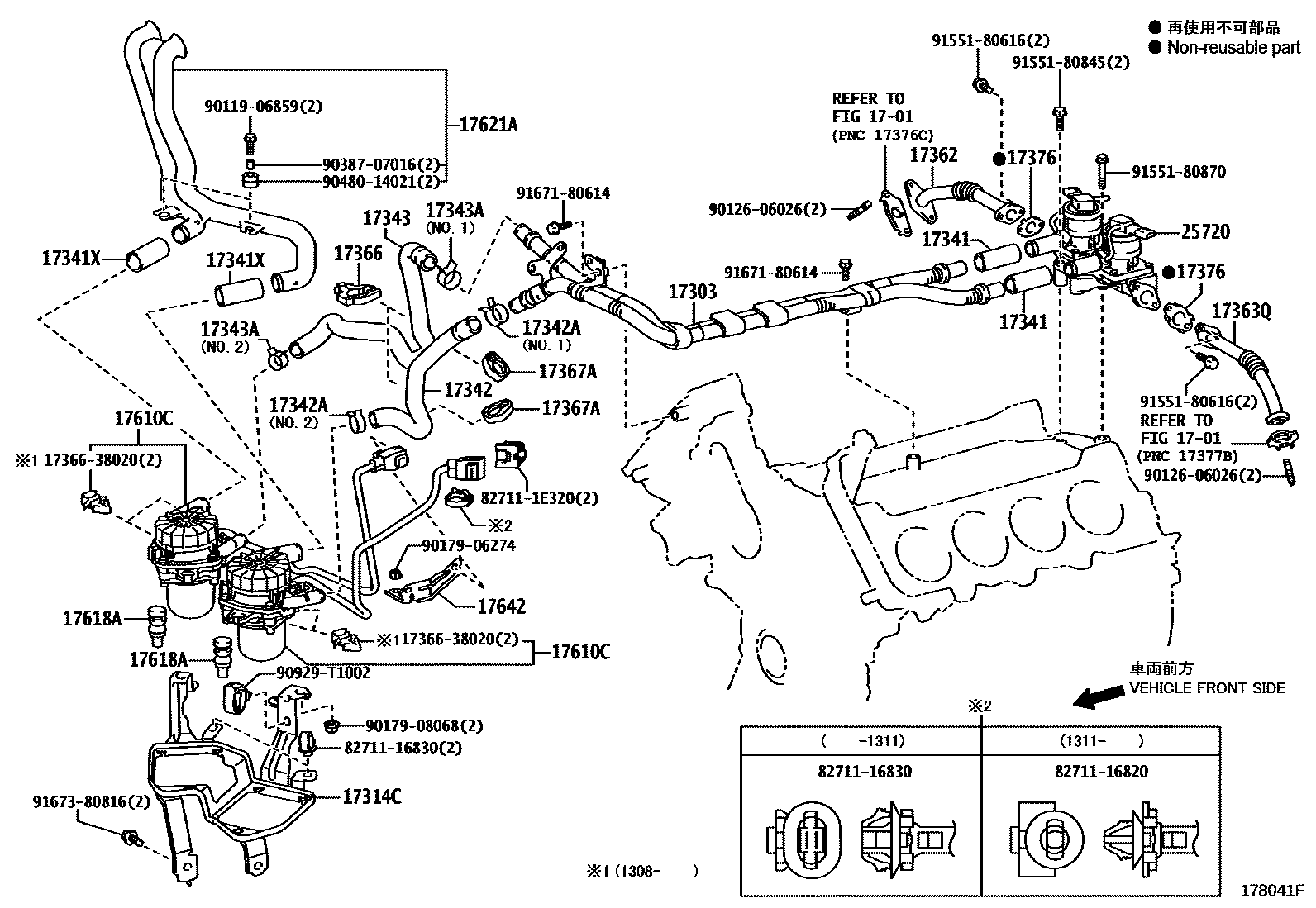

MANIFOLD AIR INJECTION SYSTEM

1701

17303PIPE SUB-ASSY, AIR

main17303-38070i3URFE..URJ200201201-201308

main17303-38120i3URFE..URJ200201308-201508

17314CBRACKET, AIR PUMP

main17314-0S020i3URFE..URJ200201508-202104

main17314-0W040i3URFE..URJ200201201-201205

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-38050×2i3URFE..URJ200200709-201201

*119

17341XHOSE, AIR, NO.1

main17341-38080×2i3URFE..URJ200200709-201201

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-38060i3URFE..URJ200201508-202104

17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)

main90466-24003i3URFE..URJ200201201-201309

NO.1

main90466-26002i3URFE..URJ200201309-201508

NO.1

main96136-42701i3URFE..URJ200201201-201508

NO.2

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-38050i3URFE..URJ200201201-201508

17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)

main90466-24003i3URFE..URJ200201201-201309

NO.1

main90466-26002i3URFE..URJ200201309-201508

NO.1

main96136-42701i3URFE..URJ200201201-201508

NO.2

17362TUBE, AIR, NO.2

main17362-38010i3URFE..URJ200201508-202104

17363QTUBE, AIR, NO.3

main17363-38010i3URFE..URJ200201508-202104

17366CLAMP, AIR INJECTION HOSE, NO.1

main17366-0S010×2i3URFE..URJ200201201-201508

main17366-38010×2i3URFE..URJ200200709-201201

17367ACLAMP, AIR INJECTION HOSE, NO.2

main17367-0S010×2i3URFE..URJ200201508-202104

main17367-38010×2i3URFE..URJ200200709-201201

17376GASKET, AIR TUBE, NO.1

main17376-38020×2i3URFE..URJ200200901-201012

*145

17610CPUMP ASSY, AIR

main17610-0S010×2i3URFE..URJ200200709-201201

main17610-0S030×2i3URFE..URJ200201308-201508

17618AINSULATOR, AIR PUMP

main17618-0C010×6i3URFE..URJ200201201-201508

17621AINLET, AIR PUMP

main17621-38020i3URFE..URJ200200709-201111

main17621-38021i3URFE..URJ200201112-201201

main17621-38040i3URFE..URJ200201308-201508

17642BRACKET, AIR PUMP WIRE

main17642-38010i3URFE..URJ200200709-201201

main17642-38020i3URFE..URJ200201308-201508

25720VALVE ASSY, ELECTRIC AIR CONTROL

main25701-38060i3URFE..URJ200200709-201008

*119

main25701-38061i3URFE..URJ200201008-201012

*145

main25701-38062i3URFE..URJ200201210-201306

main25701-38063i3URFE..URJ200201306-201407

main25701-38064i3URFE..URJ200201408-201508

1736638020CLAMP, AIR INJECTION HOSE, NO.1

main17366-38020

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16820

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

9011906859

main90119-06859

9012606026

main90126-06026

9017906274

main90179-06274

9017908068

main90179-08068

9038707016

main90387-07016

9048014021

main90480-14021

90929T1002

main90929-T1002

9155180616

main91551-80616

9155180845

main91551-80845

9155180870

main91551-80870

9167180614

main91671-80614

9167380816

main91673-80816

35 parts on this diagram · 1 diagram in section
