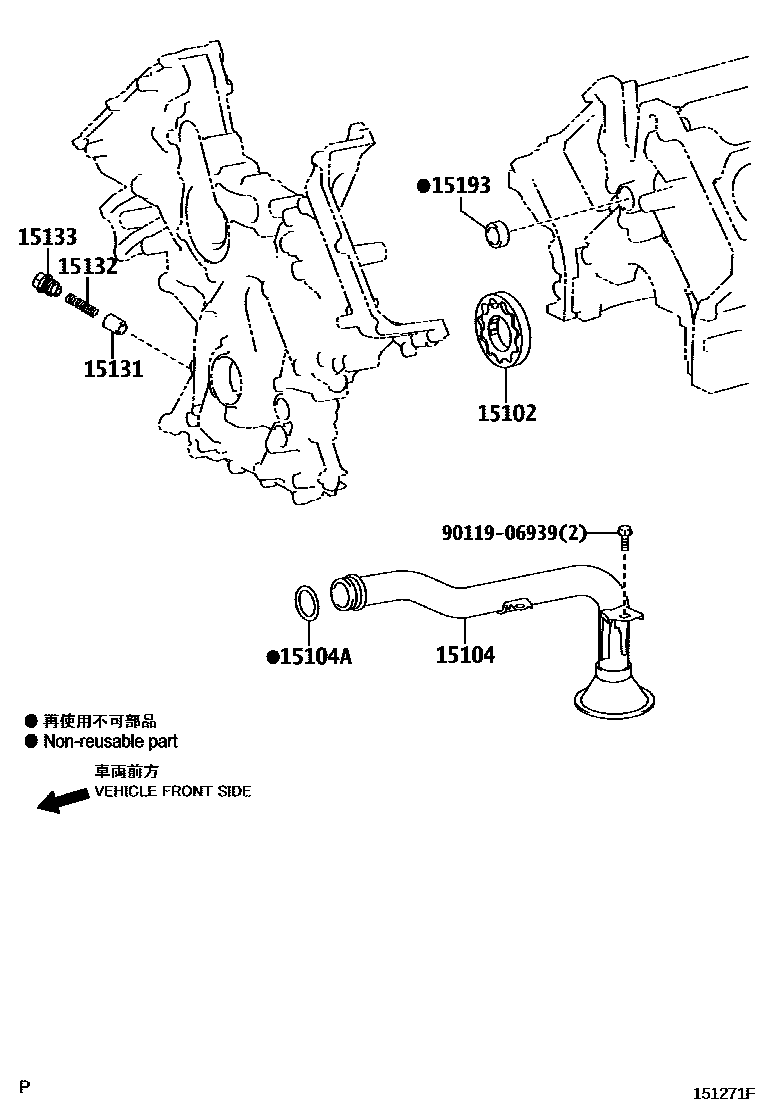

ENGINE OIL PUMP
15102ROTOR SET, OIL PUMP
(L),*145
(J),*145
15104STRAINER SUB-ASSY, OIL
*145
15104ARING, O(FOR OIL STRAINER)
(L),*145
(J),*145
15131VALVE, OIL PUMP RELIEF
*145
15132SPRING, OIL PUMP RELIEF VALVE
(L),*145
(J),*145
15133PLUG, OIL PUMP RELIEF VALVE
*145
15193GASKET, OIL PUMP
(L),*145
(J),*145
9011906939
main90119-06939
8 parts on this diagram · 1 diagram in section
