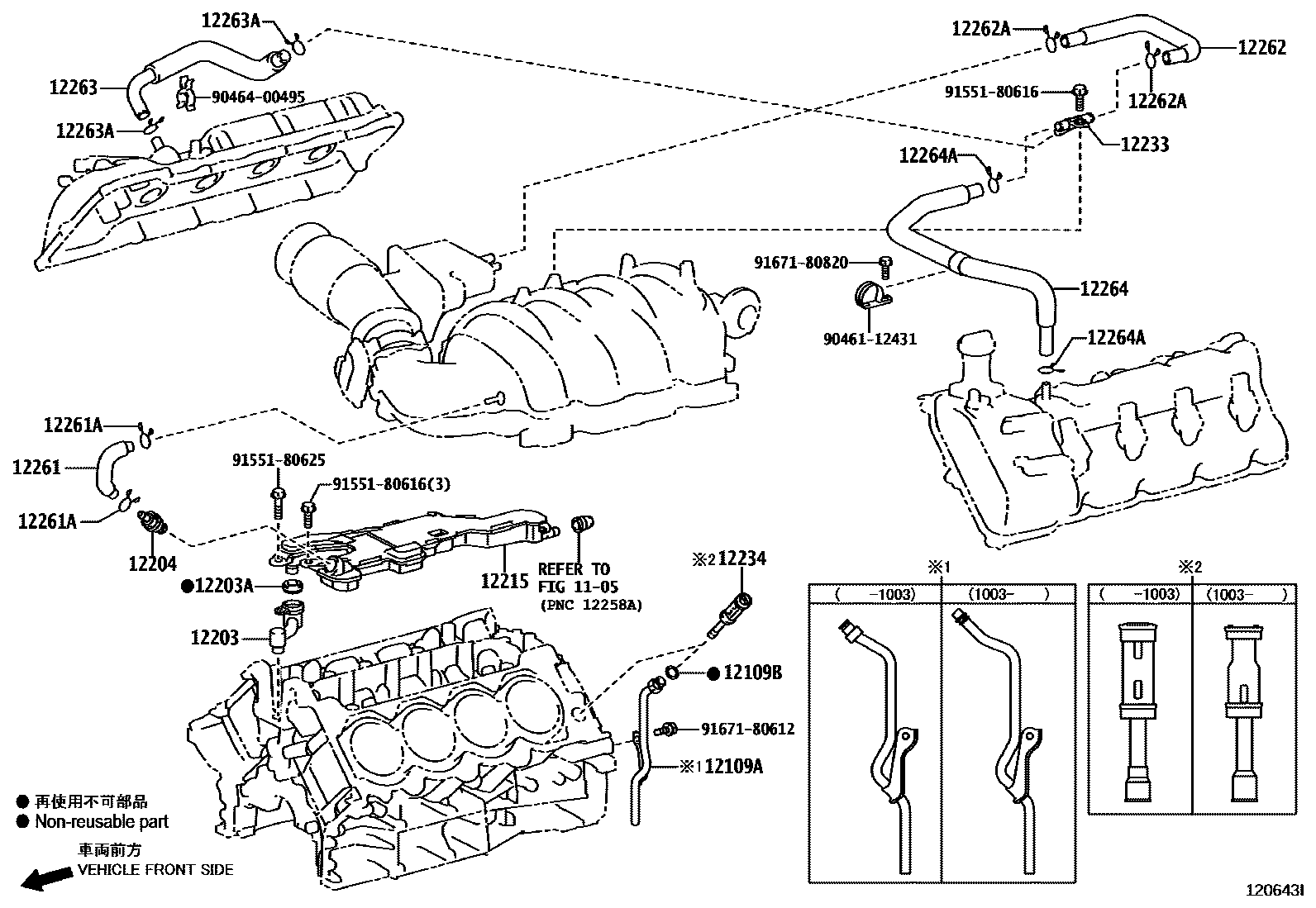

VENTILATION HOSE
1105CYLINDER BLOCK
12109APIPE SUB-ASSY, OIL DRAIN
*145
*145
12109BRING, O(FOR OIL DRAIN PIPE)
(L),*145
(J),*145
12203PIPE SUB-ASSY, VENTILATION
*145
12203AGASKET(FOR VENTILATION PIPE)
*119
12204VALVE SUB-ASSY, VENTILATION
*119
*145
12215SEPARATOR, CASE
12233CONNECTOR, VENTILATION NO.1
*145
12234CONNECTOR, VENTILATION NO.2
*145
*119
12261HOSE, VENTILATION
*119
*145
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
NO.1,*145
NO.2,*145
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
12263HOSE, VENTILATION, NO.3
*145
12263ACLIP(FOR VENTILATION HOSE)
*145
12264HOSE, VENTILATION, NO.4
*145
12264ACLIP(FOR VENTILATION HOSE)
*145
9046112431
main90461-12431
9046400495
main90464-00495
9155180616
main91551-80616
9155180625
main91551-80625
9167180612
main91671-80612
9167180820
main91671-80820
23 parts on this diagram · 2 diagrams in section
