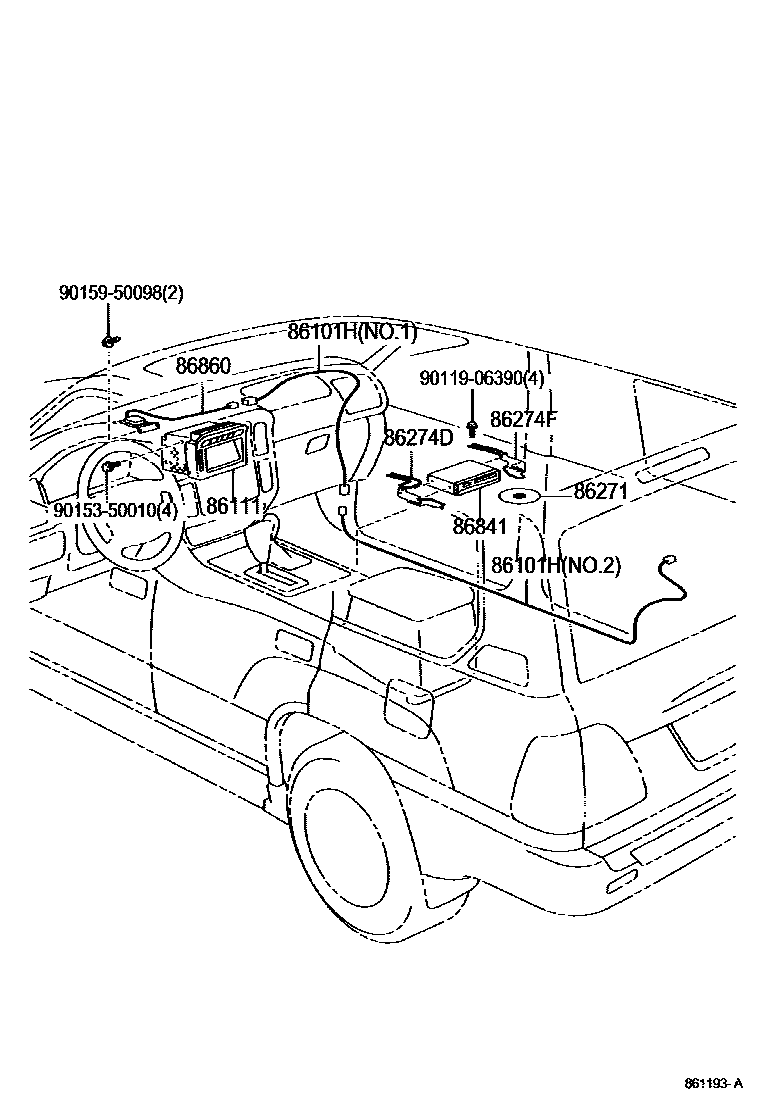

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

86101HCORD SUB-ASSY, ANTENNA

main86101-60101iUZJ100200208-200307

main86101-60160iUZJ100200008-200208

NO.1

86111MULTI-DISPLAY

main86111-60040iUZJ100200008-200101

DENSO

main86111-60041iUZJ100200101-200208

DENSO

main86111-60150iUZJ100200208-200308

DENSO

main86111-60180iUZJ100200308-200405

DENSO

main86111-60181iUZJ100200406-200411

DENSO

main86111-60250iUZJ100200411-200505

DENSO

86271DISC, DISC PLAYER

main86271-33030iUZJ100200201-200208

main86271-33031iUZJ100200208-200308

main86271-33040iUZJ100200308-200312

main86271-33041iUZJ100200312-200406

main86271-33042iUZJ100200406-200407

main86271-33043iUZJ100200407-200410

main86271-33044iUZJ100200410-200505

main86271-33045iUZJ100200508-200607

main86271-33046iUZJ100200607

main86271-47020iUZJ100200008-200201

86274DBRACKET, DISC PLAYER

main86274-60060iUZJ100200208-200308

main86274-60240iUZJ100200508-200606

86274FBRACKET, DISC PLAYER, NO.2

main86274-60070iUZJ100200008-200208

main86274-60250iUZJ100200308-200405

86841COMPUTER, NAVIGATION

main86841-33060iUZJ100200208-200308

main86841-50010iUZJ100200008-200208

main86841-50090iUZJ100200505-200708

86860ANTENNA ASSY, NAVIGATION

main86860-60031iUZJ100200008-200208

main86860-60080iUZJ100200208-200505

9011906390

main90119-06390

9015350010

main90153-50010

9015950098

main90159-50098

10 parts on this diagram · 2 diagrams in section
