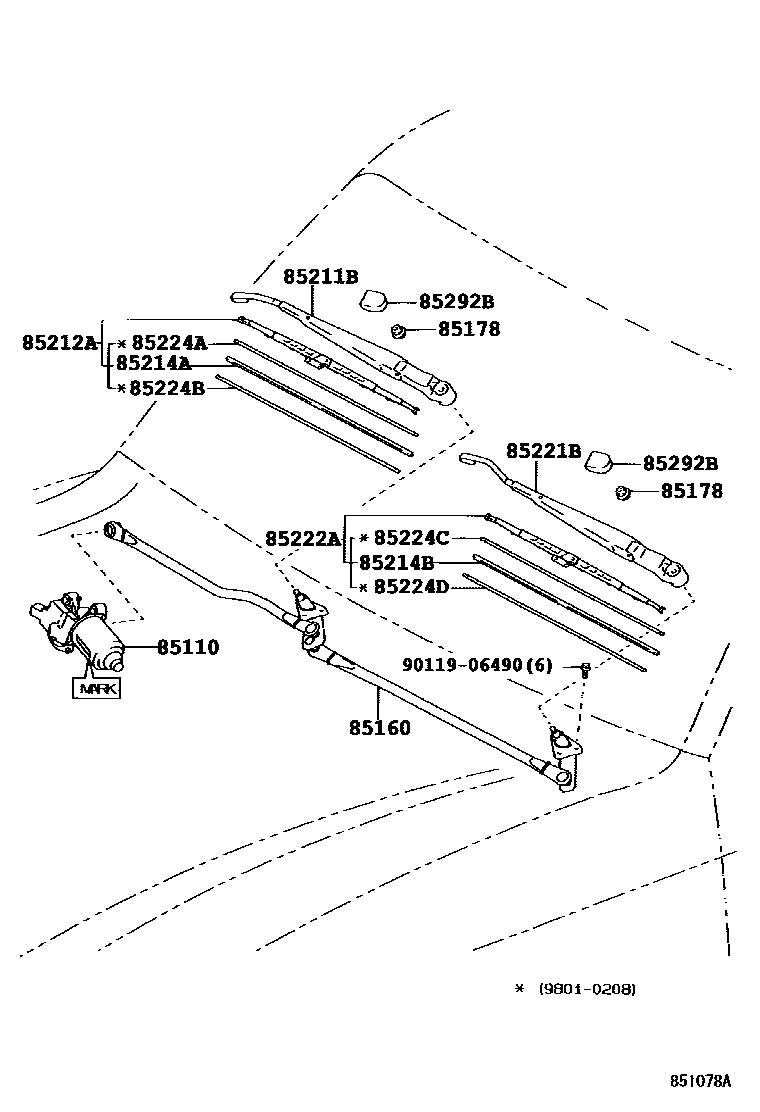

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-60270iUZJ100199801-199907

MARK=2

main85110-60290iUZJ100199801-199907

MARK=4

main85110-60300iUZJ100200208-200505

MARK=5

85160LINK ASSY, WINDSHIELD WIPER

main85150-60210iUZJ100199801-199907

main85150-60240iUZJ100199907-200208

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113×2iUZJ100199801-200208

85211BARM, FRONT WIPER, RH

main85211-60140iUZJ100199801-199907

main85211-60200iUZJ100199907-200208

85212ABLADE, FR WIPER, RH

main85212-60130iUZJ100199801-199907

main85212-60170iUZJ100199907-200208

main85212-60171iUZJ100200208-200505

85214ARUBBER, WIPER, RH

main85214-30300iUZJ100199801-199907

main85214-48010iUZJ100200208-200505

main85214-53010iUZJ100199907-199908

main85214-53020iUZJ100199908-200208

85214BRUBBER, WIPER, LH

main85214-30310iUZJ100199801-199907

main85214-30320iUZJ100199907-200208

main85214-50100iUZJ100200208-200505

85221BARM, FRONT WIPER, LH

main85221-60160iUZJ100199801-199907

main85221-60210iUZJ100199907-200208

85222ABLADE, FR WIPER, LH

main85222-60170iUZJ100199801-199907

main85222-60210iUZJ100199907-200208

main85222-60211iUZJ100200208-200505

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-33070iUZJ100199801-199907

main85224-60110iUZJ100199907-200208

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-33070iUZJ100199801-199907

main85224-60110iUZJ100199907-200208

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-10210iUZJ100199801-199907

main85224-44040iUZJ100199907-200208

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-10210iUZJ100199801-199907

main85224-44040iUZJ100199907-200208

85292BCAP, FRONT WIPER ARM HEAD

main85292-44010×2iUZJ100199801-200208

9011906490

main90119-06490

15 parts on this diagram · 1 diagram in section
