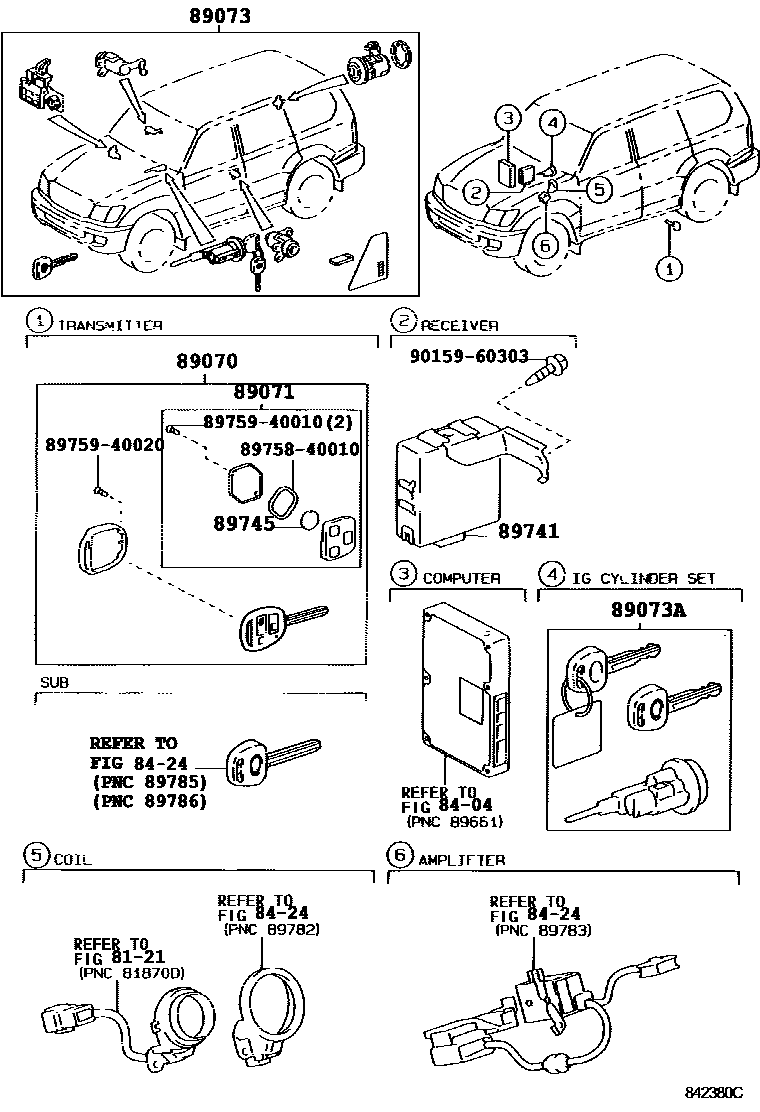

WIRELESS DOOR LOCK

0001 1 0002 1

8121INTERIOR LAMP

→ Go to FIG 81-21

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-60090iUZJ100199801-200208

main89070-60750iUZJ100200208-200505

main89070-60B60iUZJ100200505-200603

main89070-60B61iUZJ100200604

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-60010×2iUZJ100199801-200208

main89071-60150iUZJ100200208-200305

main89071-60200iUZJ100200305-200505

main89071-60230iUZJ100200505

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main69005-6C520iUZJ100200208-200505

main69005-6C521iUZJ100200605

main89073-60080iUZJ100199801-200008

main89073-60081iUZJ100200008-200208

89073AIGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)

main69057-60550iUZJ100200505-200604

main69057-60551iUZJ100200605

main89073-60020iUZJ100199801-200008

main89073-60021iUZJ100200008-200208

89741RECEIVER, DOOR CONTROL

main89741-60060iUZJ100199801-199907

main89741-60061iUZJ100199907-200208

main89741-60370iUZJ100200208-200505

89745BATTERY, TRANSMITTER

main89745-40010×2iUZJ100200208-200505

main89745-48030×2iUZJ100200505

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010

8975940020SCREW, DOOR CONTROL TRANSMITTER

main89759-40020

9015960303

main90159-60303

13 parts on this diagram · 2 diagrams in section
