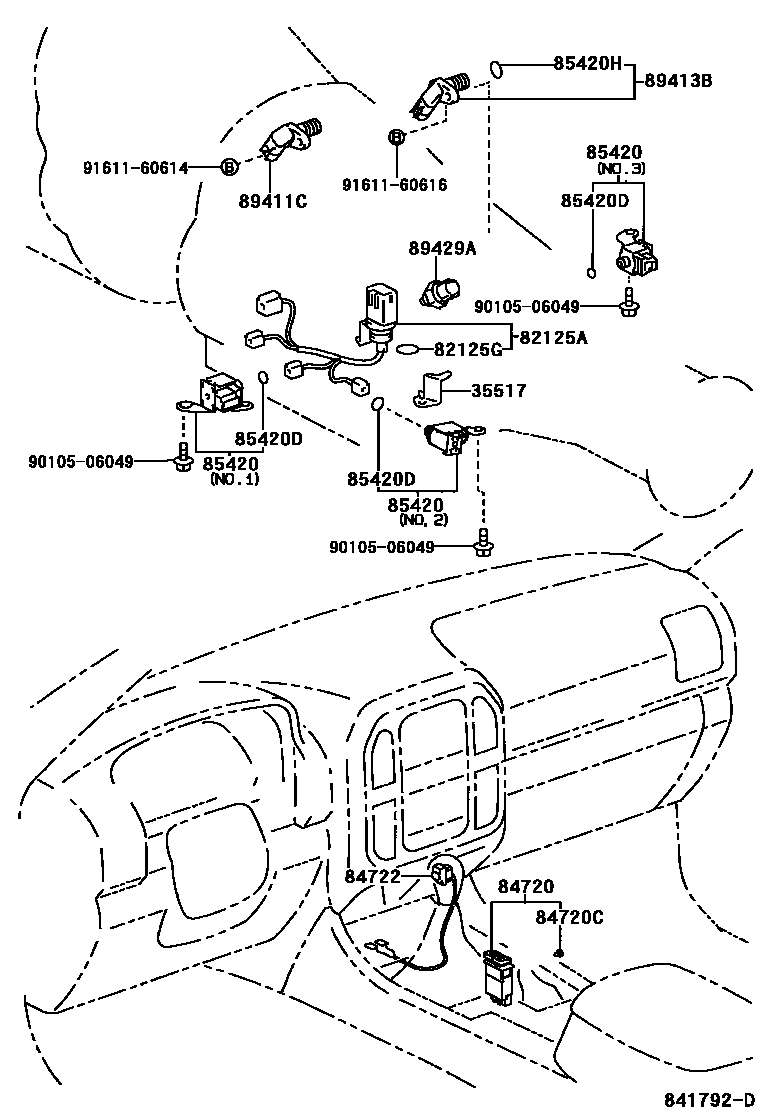

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
35517PLATE, TRANSMISSION WIRE LOCK
82125AWIRE, TRANSMISSION
82125GRING, O(FOR TRANSMISSION WIRE)
84720SWITCH ASSY, PATTERN SELECT
84720CBULB(FOR PATTERN SELECT SWITCH)
14V0.91W,W(GREEN CAP
84722SWITCH, TRANSMISSION CONTROL
BLACK,TRIM1#,40,41
NO.1
NO.2
85420SOLENOID ASSY, TRANSMISSION
NO.1,AISIN
NO.1,DENSO
NO.2,AISIN
NO.2,DENSO
NO.3
NO.1,DENSO
NO.2,DENSO
NO.1,DENSO
NO.1,AISIN
NO.2,DENSO
NO.2,AISIN
NO.3
NO.3,DENSO
NO.3,AISIN
85420DRING, O (FOR TRANSMISSION SOLENOID)
85420HRING, O(FOR SPEED SENSOR)
89411CSENSOR, SPEED
89413BSENSOR, TRANSMISSION REVOLUTION
89429ASENSOR, TEMPERATURE
9010506049
main90105-06049
9161160614
main91611-60614
9161160616
main91611-60616
15 parts on this diagram · 2 diagrams in section
