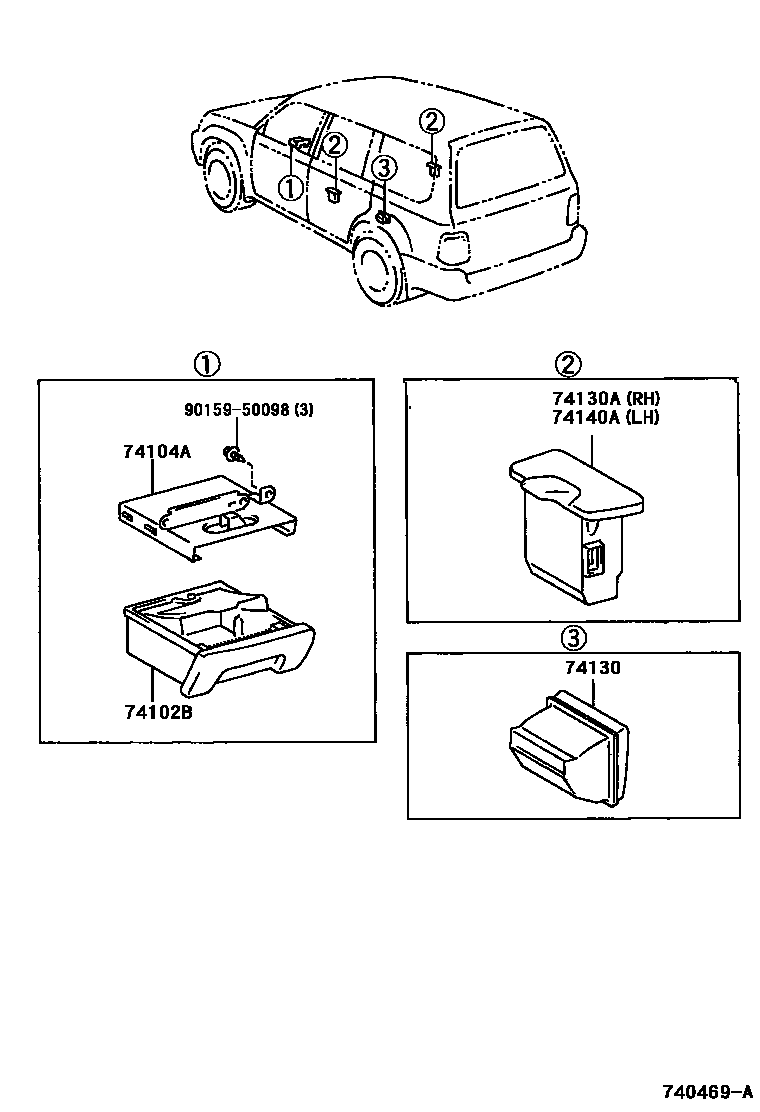

ASH RECEPTACLE
74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE
SHADOW GRAY,TRIM1#
OAK,TRIM40,41
74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74130RECEPTACLE ASSY, REAR ASH
IVORY,TRIM40,41
IVORY,TRIM0#
MD.GRAY,TRIM1#
STONE,TRIM1#
74130ARECEPTACLE ASSY, REAR ASH, RH
IVORY,TRIM40,41
IVORY,TRIM0#
MD.GRAY,TRIM1#
STONE,TRIM1#
74140ARECEPTACLE ASSY, REAR ASH, LH
IVORY,TRIM40,41
IVORY,TRIM0#
MD.GRAY,TRIM1#
STONE,TRIM1#
9015950098
main90159-50098
6 parts on this diagram · 1 diagram in section
