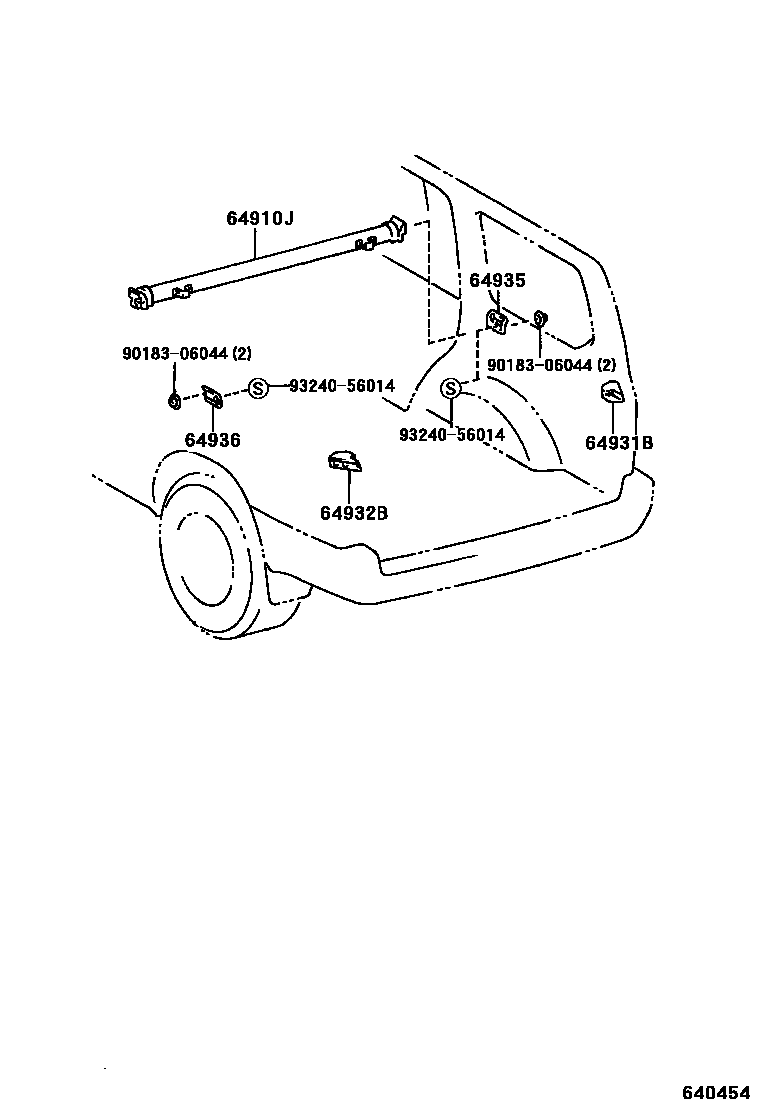

PACKAGE TRAY PANEL

64910JCOVER ASSY, TONNEAU

main64910-60060-A0iUZJ100199801-200008

IVORY,TRIM40,41

main64910-60060-B0iUZJ100199801-200008

MD.GRAY,TRIM1#

64931BHANGER, TONNEAU COVER, RH

main64931-60040-A0iUZJ100199801-200008

IVORY,TRIM40,41

main64931-60040-B0iUZJ100199801-200008

MD.GRAY,TRIM1#

64932BHANGER, TONNEAU COVER, LH

main64932-60030-A0iUZJ100199801-200008

IVORY,TRIM40,41

main64932-60030-B0iUZJ100199801-200008

MD.GRAY,TRIM1#

64935HOLDER, TONNEAU COVER, RH

main64935-60030-A0iUZJ100199801-200008

IVORY,TRIM40,41

main64935-60030-B0iUZJ100199801-200008

MD.GRAY,TRIM1#

64936HOLDER, TONNEAU COVER, LH

main64936-60040-A0iUZJ100199801-200008

IVORY,TRIM40,41

main64936-60040-B0iUZJ100199801-200008

MD.GRAY,TRIM1#

9018306044

main90183-06044

9324056014

main93240-56014

7 parts on this diagram · 1 diagram in section
