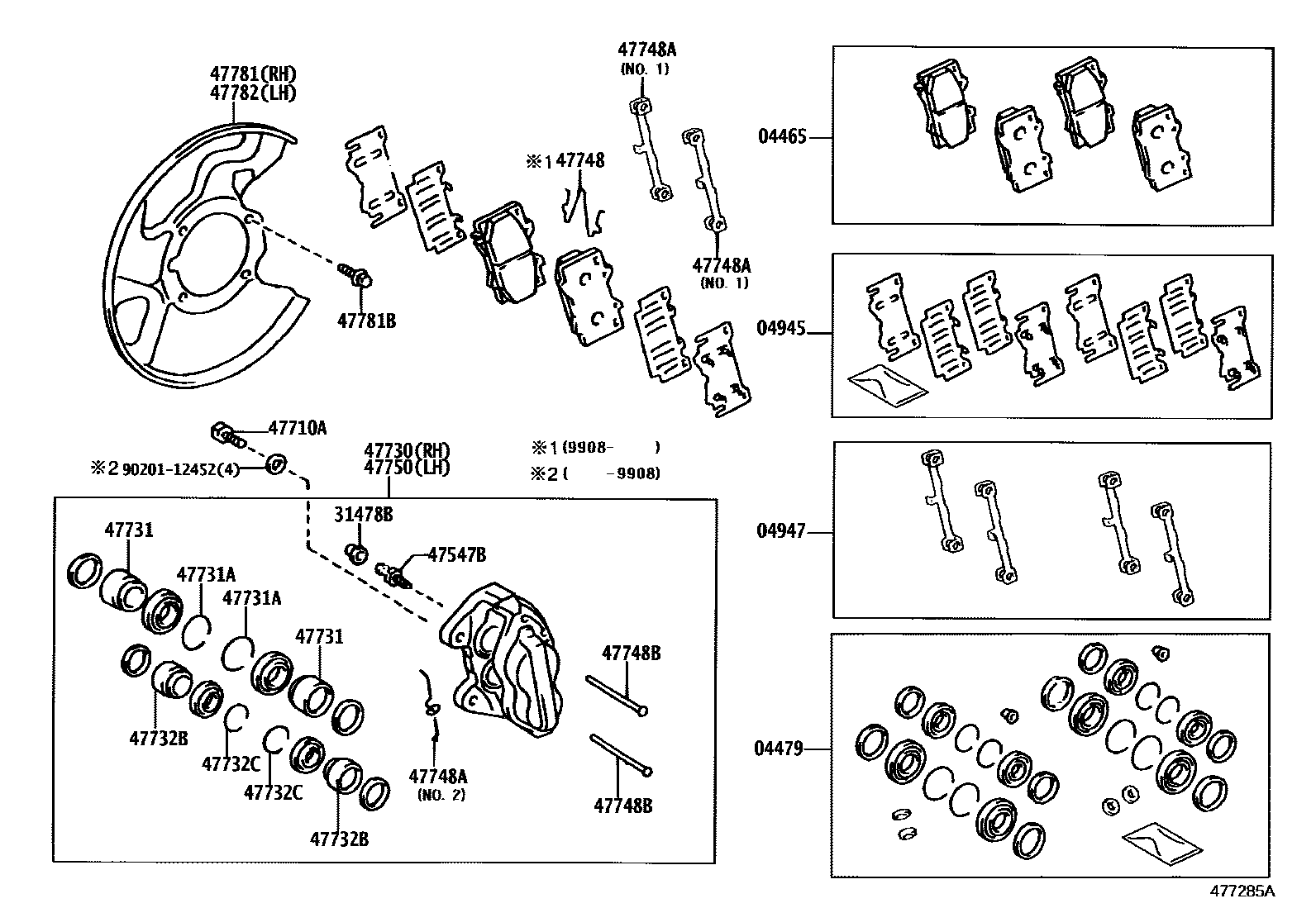

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-60120iUZJ100199801-199808

MARK NBK PN532H

main04465-60150iUZJ100199808-199912

MARK NBK PN532H

main04465-60151iUZJ100199912-200108

MARK NBK PN540H

main04465-60190iUZJ100200108-200208

MARK SUMITOMO PS534

main04465-60230iUZJ100200208-200505

MARK SUMITOMO PS534

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-60040iUZJ100200208-200505

main04479-60050iUZJ100199801-200208

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-60010iUZJ100200208-200505

main04945-60020iUZJ100199801-200208

04947FITTING KIT, DISC BRAKE, FRONT

main04947-60100iUZJ100200505

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iUZJ100200208-200505

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-60030×2iUZJ100199801-200208

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12144×4iUZJ100199801-199908

*12-1.25PX38-23

main90105-12175×4iUZJ100199908-200208

*12-1.25PX35-27

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-60080iUZJ100199801-200208

main47730-60090iUZJ100200208-200505

47731PISTON, FRONT DISC BRAKE

main47731-60040×4iUZJ100199801-200208

main47732-60010×4iUZJ100200208-200505

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-53002×4iUZJ100199801-200208

main90522-56003×4iUZJ100200208-200505

47732BPISTON, DISC BRAKE, NO.2(FOR FRONT DISC BRAKE)

main47731-60030×4iUZJ100200505-200708

main47732-60020×4iUZJ100199801-200208

47732CRING, SET, NO.2(FOR FRONT DISC BRAKE)

main90522-48044×4iUZJ100199801-200208

main90522-50003×4iUZJ100200208-200505

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-60060×2iUZJ100199808-200208

main47748-60061×2iUZJ100200512

47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90468-05131×4iUZJ100199801-200208

NO.1

main90468-12015×2iUZJ100200505

NO.2

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06024×4iUZJ100199801-200208

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-60080iUZJ100199801-200208

main47750-60090iUZJ100200208-200505

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-60110iUZJ100199801-200208

47781BBOLT(FOR DUST COVER SETTING)

main90119-08571×8iUZJ100199801-200208

*8-1.25PX18-5.5

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-60110iUZJ100199801-200208

9020112452

main90201-12452

20 parts on this diagram · 1 diagram in section
