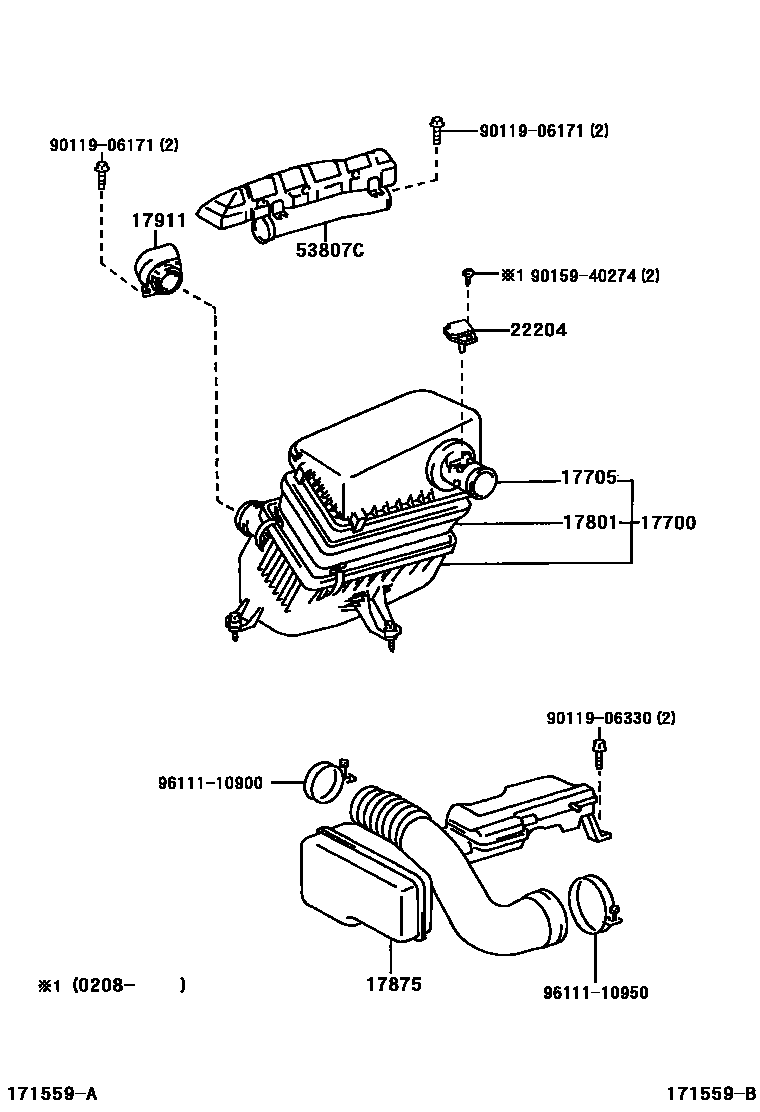

AIR CLEANER

0001 1 0002 1

17700CLEANER ASSY, AIR

main17700-50170i2UZFE..UZJ100199801-200208

main17700-50310i2UZFE..UZJ100200505

17705CAP SUB-ASSY, AIR CLEANER

main17705-50080i2UZFE..UZJ100199801-200208

main17705-50210i2UZFE..UZJ100200505

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-50040i2UZFE..UZJ100199801-200208

17875PIPE, INTAKE AIR CONNECTOR

main17875-50190i2UZFE..UZJ100199801-200208

main17875-50330i2UZFE..UZJ100200505

17911DUCT, COOL AIR INTAKE, NO.1

main52810-60010i2UZFE..UZJ100199801-200208

main52810-60030i2UZFE..UZJ100200505

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75020i2UZFE..UZJ100199801-200208

main22204-75030i2UZFE..UZJ100200505

53807CDUCT SUB-ASSY, FRONT FENDER AIR, RH

main53807-60050iUZJ100199801-200208

9011906171

main90119-06171

9011906330

main90119-06330

9015940274

main90159-40274

9611110900

main96111-10900

9611110950

main96111-10950

12 parts on this diagram · 2 diagrams in section
