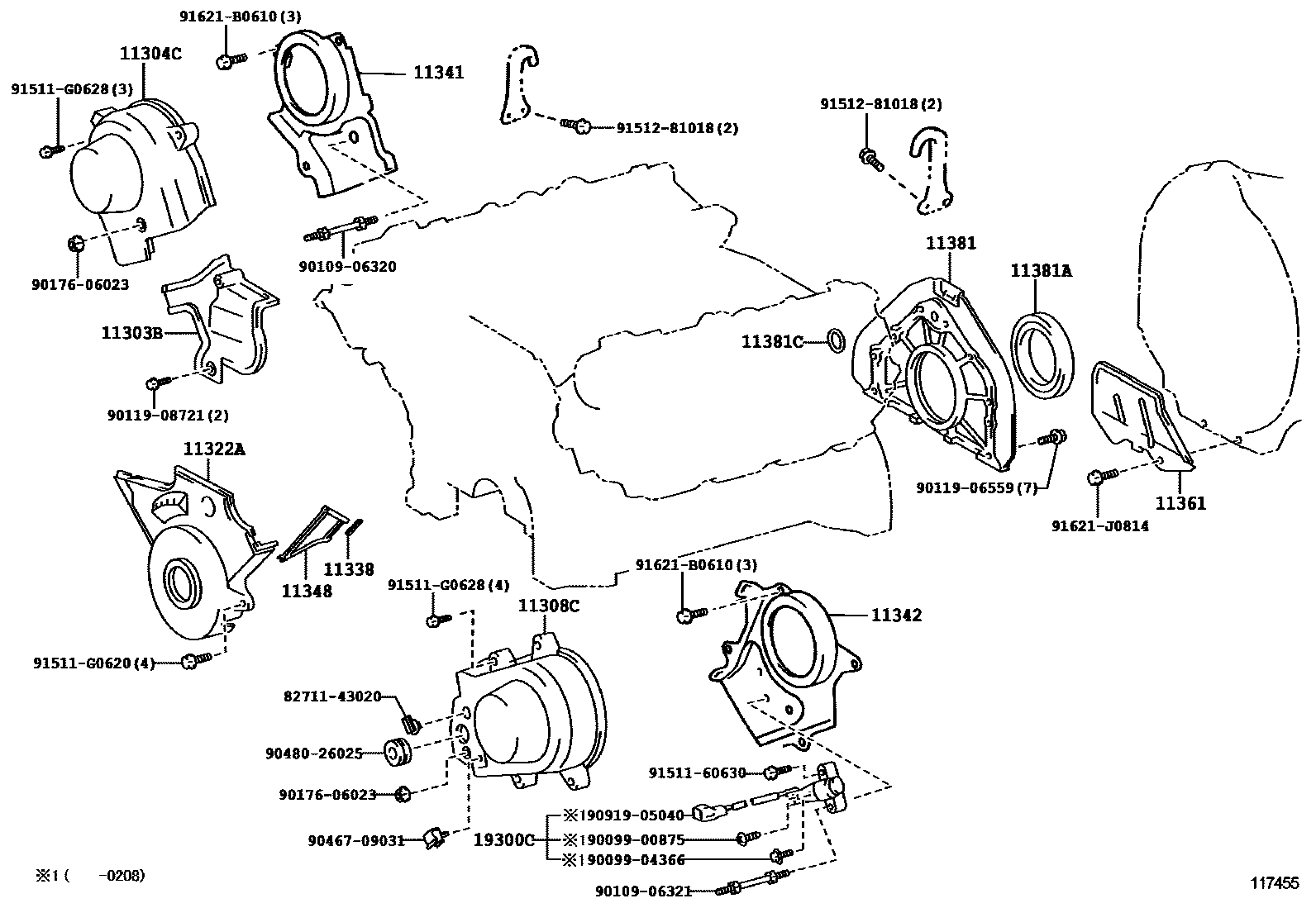

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11303BCOVER SUB-ASSY, TIMING BELT, NO.2

main11303-50030i2UZFE..UZJ100200208-200505

11304CCOVER SUB-ASSY, TIMING BELT, NO.3 RH

main11304-50020i2UZFE..UZJ100199801-200208

11308CCOVER SUB-ASSY, TIMING BELT, NO.3 LH

main11308-50030i2UZFE..UZJ100199801-200208

11322ACOVER, TIMING BELT, NO.1

main11302-50040i2UZFE..UZJ100200208-200505

11338GASKET, TIMING CHAIN COVER, NO.2

main11338-50010i2UZFE..UZJ100199801-200208

11341PLATE, TIMING BELT, REAR RH

main11341-50020i2UZFE..UZJ100200505

main11341-50030i2UZFE..UZJ100200208-200505

11342PLATE, TIMING BELT, REAR LH

main11342-50021i2UZFE..UZJ100200505

main11342-50030i2UZFE..UZJ100199801-200208

11348SPACER, TIMING GEAR COVER

main11348-50011i2UZFE..UZJ100199801-200208

11361COVER, FLYWHEEL HOUSING UNDER

main11361-50030i2UZFE..UZJ100199801-200208

11381RETAINER, ENGINE REAR OIL SEAL

main11381-50021i2UZFE..UZJ100199801-200208

11381ASEAL, ENGINE REAR OIL

main90311-95012i2UZFE..UZJ100199801-200208

11381CRING, O(FOR OIL SEAL RETAINER)

main96721-24025i2UZFE..UZJ100200505

19300CSENSOR ASSY, CAM POSITION

main19300-50010i2UZFE..UZJ100200505-200610

main19300-50011i2UZFE..UZJ100200610

main19300-50020i2UZFE..UZJ100199801-200208

8271143020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-43020

9009900875

main90099-00875

9009904366

main90099-04366

9010906320

main90109-06320

9010906321

main90109-06321

9011906559

main90119-06559

9011908721

main90119-08721

9017606023

main90176-06023

9046709031

main90467-09031

9048026025

main90480-26025

9091905040

main90919-05040

9151160630

main91511-60630

91511G0620

main91511-G0620

91511G0628

main91511-G0628

9151281018

main91512-81018

91621B0610

main91621-B0610

91621J0814

main91621-J0814

30 parts on this diagram · 2 diagrams in section
