HEADLAMP

81110HEADLAMP ASSY, RH

main81110-60390iFJ80199001-199109

main81110-60391iFJ80199109-199207

main81110-60392iFJ80,FZJ80199207-199305

main81110-60393iFZJ80199305-199310

main81110-60394iFZJ80199310-199501

main81110-60395iFZJ80199501-199801

main81110-60400iFJ80199001-199109

W(HEADLAMP CLEANER)

main81110-60401iFJ80199109-199207

W(HEADLAMP CLEANER)

main81110-60402iFJ80,FZJ80199207-199305

W(HEADLAMP CLEANER)

main81110-60403iFZJ80199305-199308

W(HEADLAMP CLEANER)

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2iFZJ80199310-199801

12V 65W

main90981-13046×2iFJ80,FZJ80199001-199310

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81040×2iFZJ80199310-199801

12V 51W

main90981-13047×2iFJ80,FZJ80199001-199310

12V 51W,HALOGEN

81112ARIM, HEADLAMP, RH

main81127-60370iFJ80,FZJ80199001-199308

81135UNIT ASSY, HEADLAMP, RH

main81130-60390iFJ80199001-199207

main81130-60391iFJ80,FZJ80199207-199310

main81130-60394iFZJ80199310-199501

main81130-60395iFZJ80199501-199801

81136CRIM, HEADLAMP, RH

main81116-60480iFJ80,FZJ80199001-199305

main81116-60482iFZJ80199305-199801

81137ARIM, HEADLAMP, RH

main81117-60370iFJ80,FZJ80199001-199308

W(HEADLAMP CLEANER)

main81117-60395iFZJ80199501-199801

main81117-60480iFJ80,FZJ80199001-199501

81144COVER, HEADLAMP, NO.1

main90075-99028×2iFJ80,FZJ80199001-199801

81145COVER, HEADLAMP, NO.2

main90075-99027×2iFJ80,FZJ80199001-199801

81150HEADLAMP ASSY, LH

main81150-60210iFJ80199001-199109

main81150-60211iFJ80199109-199207

main81150-60212iFJ80,FZJ80199207-199305

main81150-60213iFZJ80199305-199310

main81150-60214iFZJ80199310-199501

main81150-60215iFZJ80199501-199801

main81150-60220iFJ80199001-199109

W(HEADLAMP CLEANER)

main81150-60221iFJ80199109-199207

W(HEADLAMP CLEANER)

main81150-60222iFJ80,FZJ80199207-199305

W(HEADLAMP CLEANER)

main81150-60223iFZJ80199305-199308

W(HEADLAMP CLEANER)

81152ARIM, HEADLAMP, LH

main81167-60190iFJ80,FZJ80199001-199308

81156RIM, HEADLAMP, LH

main81156-60300iFJ80,FZJ80199001-199305

main81156-60302iFZJ80199305-199801

81157RIM, HEADLAMP, LH

main81157-60190iFJ80,FZJ80199001-199308

W(HEADLAMP CLEANER)

main81157-60215iFZJ80199501-199801

main81157-60300iFJ80,FZJ80199001-199501

81175UNIT ASSY, HEADLAMP, LH

main81170-60210iFJ80199001-199207

main81170-60211iFJ80,FZJ80199207-199310

main81170-60214iFZJ80199310-199501

main81170-60215iFZJ80199501-199801

8505HEADLAMP CLEANER

→ Go to FIG 85-05

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9007502023

main90075-02023

9007502403

main90075-02403

9007502410

main90075-02410

9007510801

main90075-10801

9011906126

main90119-06126

9018904163

main90189-04163

9018906111

main90189-06111

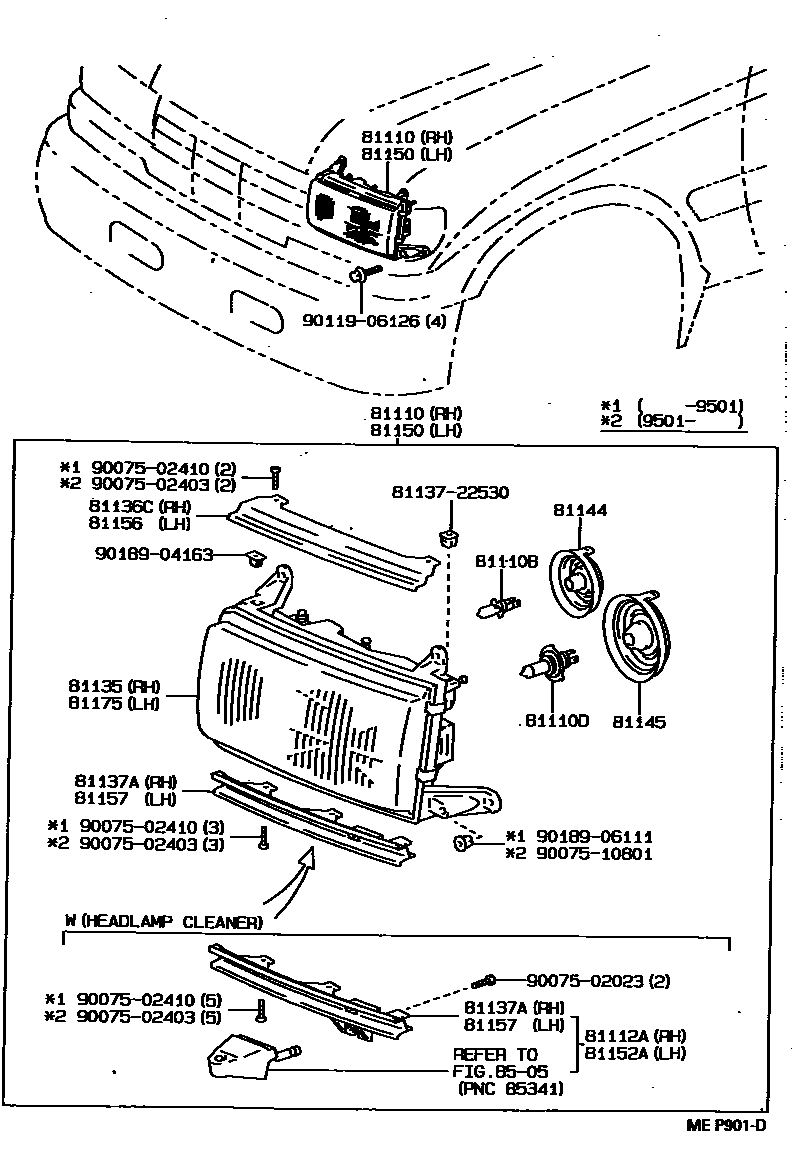

23 parts on this diagram · 1 diagram in section
