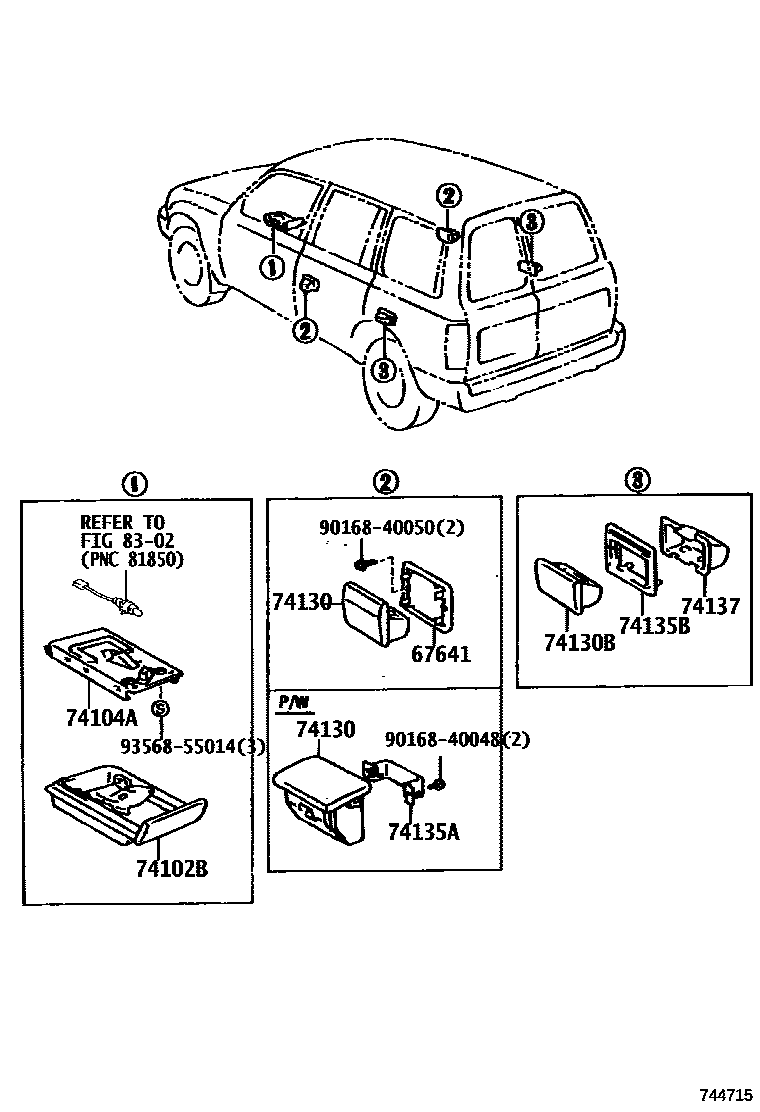

ASH RECEPTACLE

67641BRACKET, ASH RECEPTACLE SET

main67641-30010iFJ80199001-199201

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-60020iFJ80,FZJ80199001-199501

main74102-60070iFZJ80199501-199511

main74102-60080iFZJ80199511-199801

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-60010iFJ80,FZJ80199001-199501

main74104-60060iFZJ80199501-199801

74130RECEPTACLE ASSY, REAR ASH

main74130-14020-39iFJ80199001-199201

GRAY,TRIM1#

main74130-14020-58iFJ80199001-199201

SABLE,TRIM4#

main74130-32030-06iFJ80199001-199201

W(POWER WINDOW),SABLE,TRIM4#

main74130-32030-06iFJ80,FZJ80199201-199501

SABLE,TRIM4#

main74130-32030-13iFJ80,FZJ80199201-199702

BLUISH GRAY,TRIM1#

main74130-32030-13iFJ80199001-199201

W(POWER WINDOW),BLUISH GRAY,TRIM1#

main74130-32030-E0iFZJ80199501-199702

OAK,TRIM4#

main74130-60020-B0iFZJ80199702-199801

BLUISH GRAY,TRIM1#

main74130-60020-E0iFZJ80199702-199801

OAK,TRIM4#

74130BRECEPTACLE ASSY, REAR ASH

main74105-10010-30iFJ80,FZJ80199001-199501

SABLE,TRIM4#

main74105-10010-33iFJ80,FZJ80199001-199308

GRAY,TRIM1#

main74105-10010-B0iFZJ80199308-199801

BLUISH GRAY,TRIM1#

main74105-10010-E2iFZJ80199501-199801

OAK,TRIM4#

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-32010iFJ80,FZJ80199001-199801

74135BRETAINER, REAR ASH RECEPTACLE, NO.2

main74135-60010iFJ80,FZJ80199001-199801

74137RETAINER, REAR ASH RECEPTACLE, INNER RH

main74137-10030iFJ80,FZJ80199001-199801

8302INDICATOR

→ Go to FIG 83-02

9016840048

main90168-40048

9016840050

main90168-40050

9356855014

main93568-55014

12 parts on this diagram · 1 diagram in section
