SEAT BELT

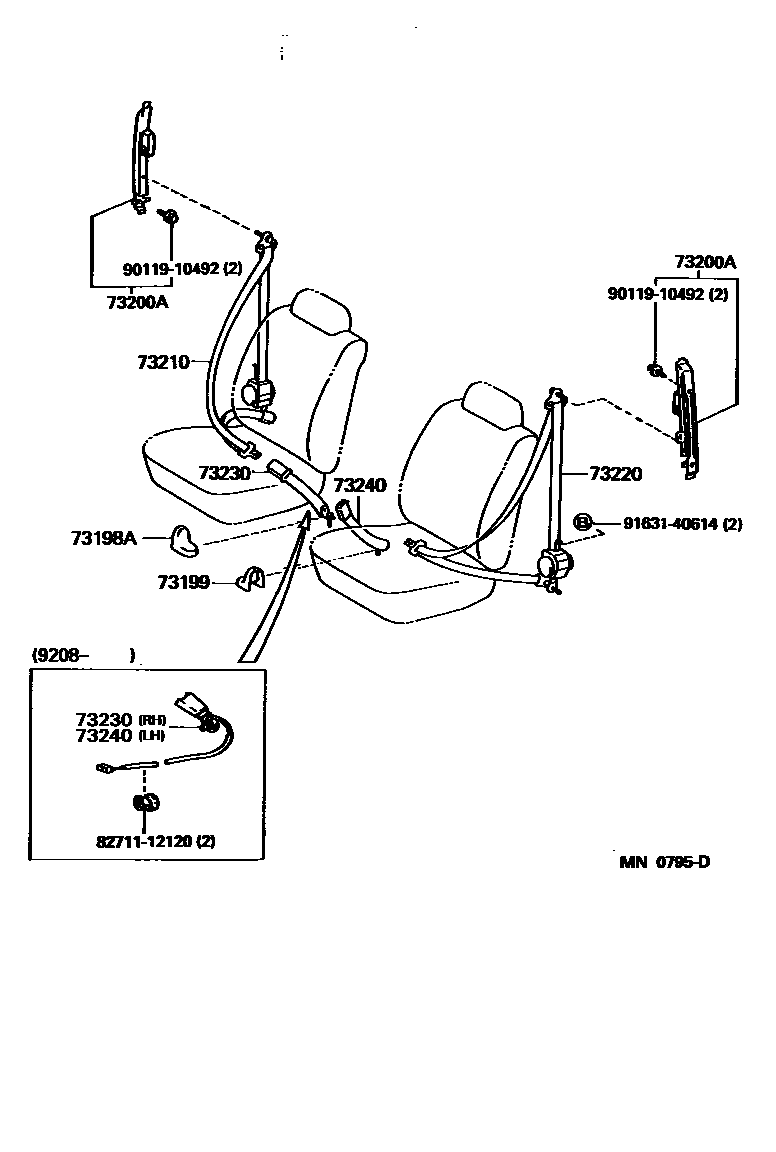

Parts diagram

73198ACOVER, FRONT SEAT BELT INNER ANCHOR, RH

main73198-60010-03i199008-199208

BLUISH GRAY,TRIM1#

main73198-60010-06i199008-199208

SABLE,TRIM4#

73199COVER, FRONT SEAT BELT INNER ANCHOR, LH

main73199-60010-03i199008-199208

BLUISH GRAY,TRIM1#

main73199-60010-06i199008-199208

SABLE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-60010-03i199501-199601

LIGHT GRAY,TRIM1#,4#

main73200-60010-03i199601-199801

LIGHT GRAY,TRIM1#

main73200-60010-A0i199601-199801

IVORY,TRIM4#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-60060-03i199001-199108

BLUISH GRAY,TRIM1#

main73210-60060-06i199001-199108

SABLE,TRIM4#

main73210-60061-B0i199108-199208

BLUISH GRAY,TRIM1#

main73210-60061-E0i199108-199208

SABLE,TRIM4#

main73210-60062-B0i199308-199501

BLUISH GRAY,TRIM1#

main73210-60062-E0i199308-199501

SABLE,TRIM4#

main73210-60270-B0i199208-199308

BLUISH GRAY,TRIM1#

main73210-60270-E1i199208-199308

SABLE,TRIM4#

main73210-60330-B0i199501-199601

BLUISH GRAY,TRIM1#

main73210-60330-E0i199501-199601

OAK,TRIM4#

main73210-60350-B0i199601-199801

BLUISH GRAY,TRIM1#

main73210-60350-E0i199601-199801

OAK,TRIM4#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-60060-03i199001-199108

BLUISH GRAY,TRIM1#

main73220-60060-06i199001-199108

SABLE,TRIM4#

main73220-60061-B0i199108-199208

BLUISH GRAY,TRIM1#

main73220-60061-E0i199108-199208

SABLE,TRIM4#

main73220-60062-B0i199208-199501

BLUISH GRAY,TRIM1#

main73220-60062-E0i199208-199501

SABLE,TRIM4#

main73220-60260-B0i199501-199601

BLUISH GRAY,TRIM1#

main73220-60260-E0i199501-199601

OAK,TRIM4#

main73220-60270-B0i199601-199801

BLUISH GRAY,TRIM1#

main73220-60270-E0i199601-199801

OAK,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-60040-03i199001-199208

BLUISH GRAY,TRIM1#

main73230-60040-06i199001-199208

SABLE,TRIM4#

main73230-60200-B0i199208-199801

BLUISH GRAY,TRIM1#

main73230-60200-E0i199208-199501

SABLE,TRIM4#

main73230-60200-E1i199501-199801

OAK,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-60190-B0i199208-199801

W(POWER SEAT),BLUISH GRAY,TRIM1#

main73230-60190-E0i199208-199501

W(POWER SEAT),SABLE,TRIM4#

main73230-60190-E1i199501-199801

W(POWER SEAT),OAK,TRIM4#

main73240-60070-03i199001-199208

BLUISH GRAY,TRIM1#

main73240-60070-06i199001-199208

SABLE,TRIM4#

main73240-60071-B0i199208-199801

BLUISH GRAY,TRIM1#

main73240-60071-E0i199208-199501

SABLE,TRIM4#

main73240-60071-E1i199501-199801

OAK,TRIM4#

8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12120

9011910492

main90119-10492

9163140614

main91631-40614

10 parts on this diagram · 2 diagrams in section
