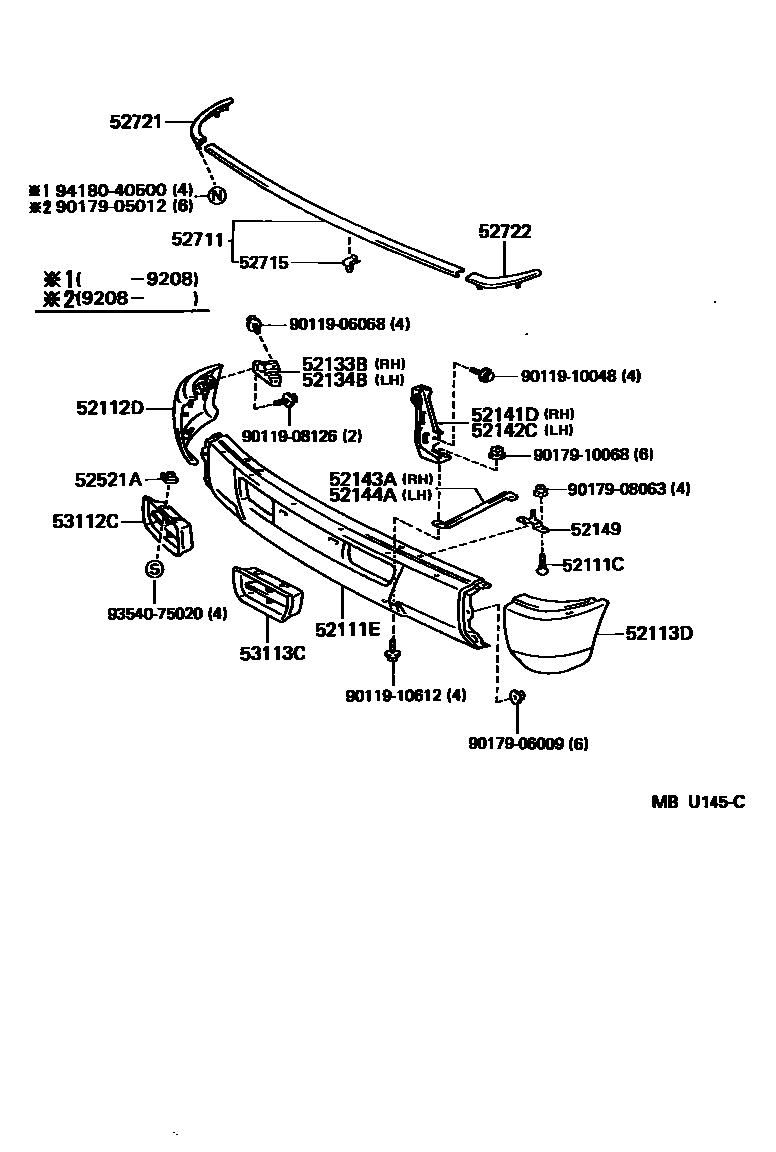

FRONT BUMPER & BUMPER STAY
52111CBOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
52111EBAR, FRONT BUMPER
52112DEXTENSION, FRONT BUMPER, RH
52113DEXTENSION, FRONT BUMPER, LH
52133BBRACKET, FRONT BUMPER EXTENSION MOUNTING, RH
52134BBRACKET, FRONT BUMPER EXTENSION MOUNTING, LH
52141DSTAY, FRONT BUMPER, RH
52142CSTAY, FRONT BUMPER, LH
52143AARM, FRONT BUMPER, INNER RH
52144AARM, FRONT BUMPER, INNER LH
52149BRACKET, FRONT BUMPER, INNER
52521ACLIP(FOR FRONT BUMPER RETAINER)
52715RETAINER, FRONT BUMPER MOULDING, NO.1
52721MOULDING, FRONT BUMPER EXTENSION, RH
52722MOULDING, FRONT BUMPER EXTENSION, LH
53112CGRILLE, RADIATOR, LOWER RH
53113CGRILLE, RADIATOR, LOWER LH
9011906068
main90119-06068
9011908126
main90119-08126
9011910048
main90119-10048
9011910612
main90119-10612
9017905012
main90179-05012
9017906009
main90179-06009
9017908063
main90179-08063
9017910068
main90179-10068
9354075020
main93540-75020
9418040500
main94180-40500
28 parts on this diagram · 2 diagrams in section
