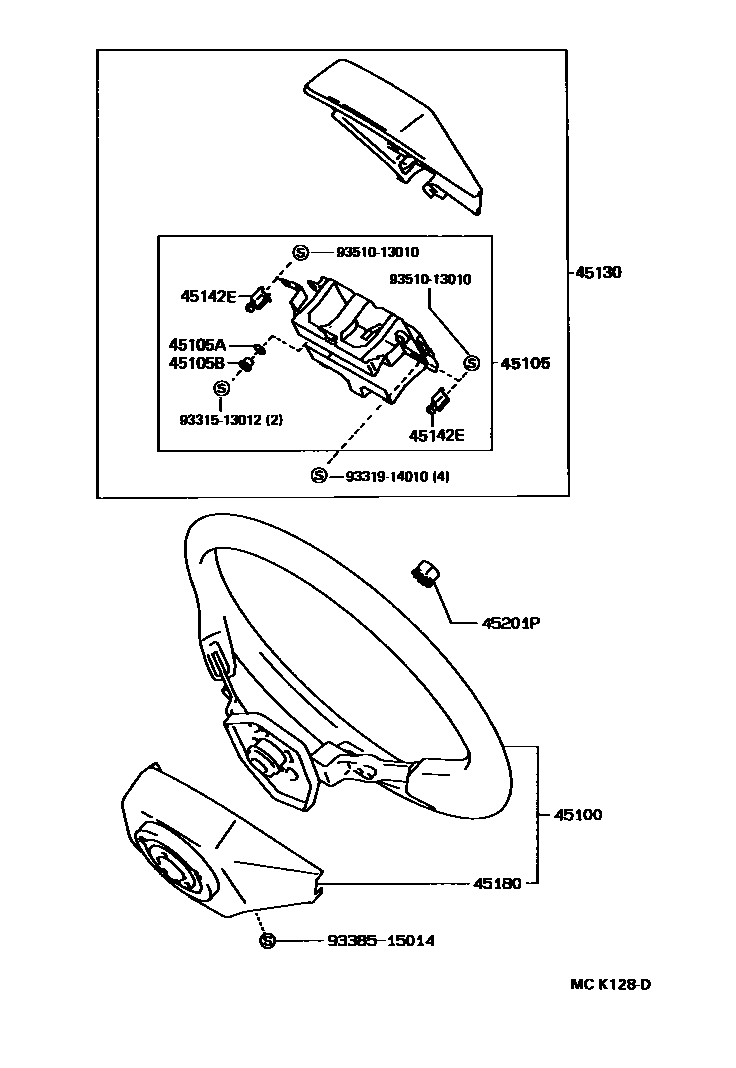

STEERING WHEEL

0001 1 0002 1

45100WHEEL ASSY, STEERING

main45100-60170-01iFZJ80199208-199501

3-SPOKE,URETHANE,BLACK,TRIM1#,4#

main45100-60180-01iFZJ80199208-199501

3-SPOKE,LEATHER,BLACK,TRIM1#,4#

main45100-60210-B0iFZJ80199501-199801

4-SPOKE,URETHANE,BLUEISH GRAY,TRIM1#

main45100-60210-E0iFZJ80199501-199801

4-SPOKE,URETHANE,OAK,TRIM4#

main45100-60230-B0iFZJ80199501-199801

4-SPOKE,LEATHER,LEATHER PACKAGE,BLUEISH GRAY,TRIM1#

main45100-60230-E0iFZJ80199501-199801

4-SPOKE,LEATHER,LEATHER PACKAGE,OAK,TRIM4#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-60050iFJ80,FZJ80199001-199501

45105ACUSHION(FOR HORN BUTTON CONTACT PLATE)

main90540-08014×2iFJ80,FZJ80199001-199501

45105BSPACER(FOR HORN BUTTON CONTACT PLATE)

main90561-03001×2iFJ80,FZJ80199001-199501

45130BUTTON ASSY, HORN

main45130-50110-B1iFZJ80199501-199801

BLUEISH GRAY,TRIM1#

main45130-50110-E0iFZJ80199501-199801

OAK,TRIM4#

main45130-60160-01iFZJ80199208-199501

BLACK,TRIM1#,4#

45142EPIECE, HORN CONTACT

main45142-12090×2iFJ80,FZJ80199001-199501

45180COVER SUB-ASSY, STEERING WHEEL

main45180-60040-01iFJ80,FZJ80199001-199501

BLACK,TRIM1#,4#

45201PNUT, STEERING WHEEL SET

main90179-12071iFZJ80199306-199801

main90179-12086iFJ80,FZJ80199001-199306

9331513012

main93315-13012

9331914010

main93319-14010

9338515014

main93385-15014

9351013010

main93510-13010

12 parts on this diagram · 2 diagrams in section
