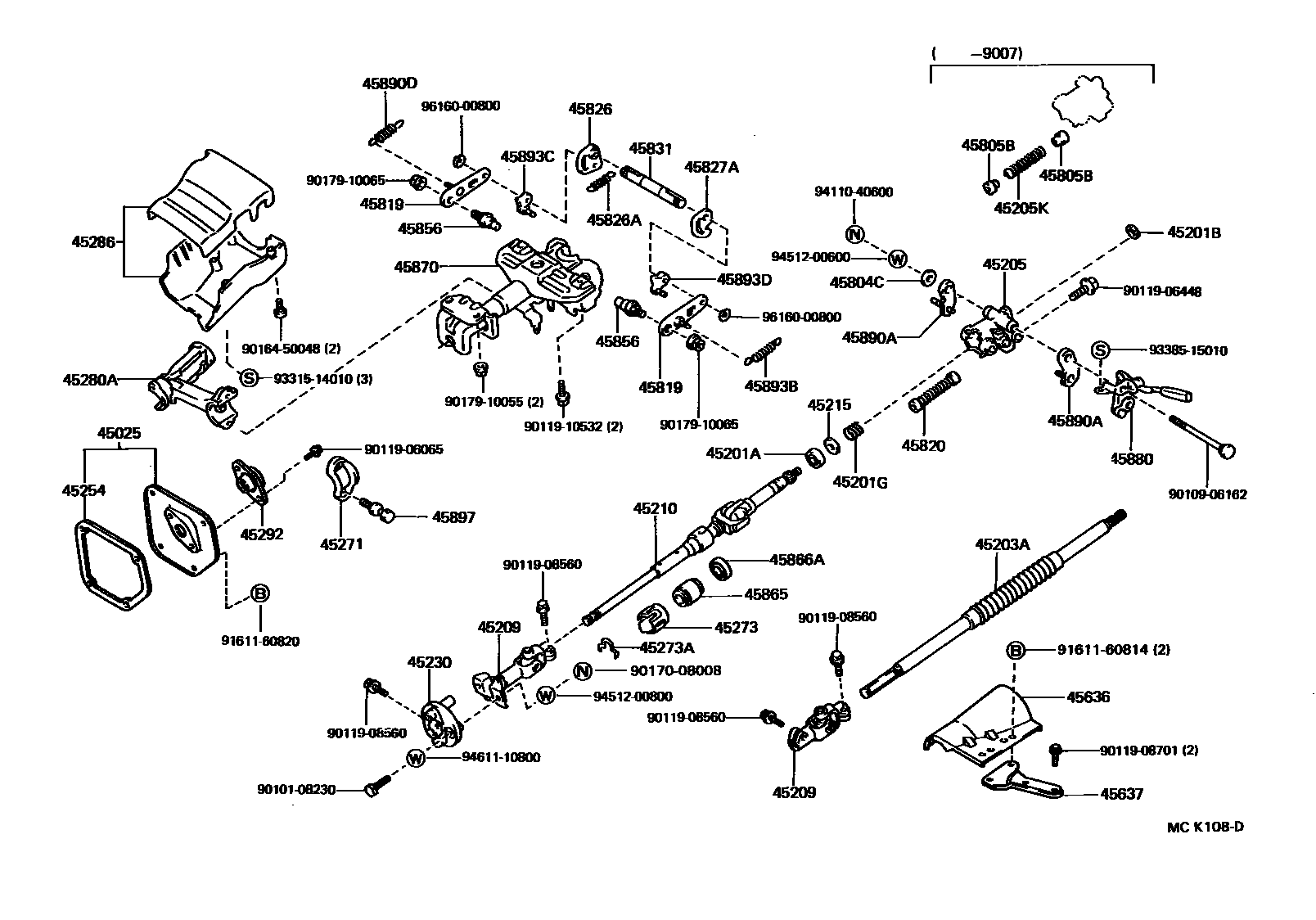

STEERING COLUMN & SHAFT

45025COVER, STEERING INTERMEDIATE SHAFT

main45025-60080iFJ80,FZJ80199001-199801

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18010iFJ80,FZJ80199001-199801

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iFJ80,FZJ80199001-199801

T=1.20

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iFJ80,FZJ80199001-199801

45203ASHAFT, STEERING INTERMEDIATE, NO.2

main45203-60050iFJ80,FZJ80199001-199801

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-60140iFZJ80199501-199801

main45205-60160iFJ80,FZJ80199001-199501

45205KSPRING(FOR STEERING COLUMN TUBE)

main90504-25002iFJ80199001-199007

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-60060iFJ80,FZJ80199001-199801

UPR

main45209-60070iFJ80,FZJ80199001-199801

LWR

45210SHAFT ASSY, STEERING MAIN

main45210-35170iFJ80,FZJ80199001-199801

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iFJ80,FZJ80199001-199801

45230COUPLING ASSY, FLEXIBLE

main45230-60010iFJ80,FZJ80199001-199801

45254SHIELD, STEERING COLUMN HOLE

main45254-60060iFJ80,FZJ80199001-199801

45271CLAMP, STEERING COLUMN, UPPER

main45271-12060iFJ80,FZJ80199001-199801

45273BUSH, STEERING MAIN SHAFT

main45273-16010iFJ80,FZJ80199001-199801

45273ARING, HOLE SNAP(FOR STEERING MAIN SHAFT BUSH)

main90521-01005iFJ80,FZJ80199001-199801

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-60290iFZJ80199501-199801

main45280-60370iFJ80,FZJ80199001-199501

45286COVER, STEERING COLUMN

main45286-60940-01iFJ80,FZJ80199001-199501

W(CRUISE CONTROL),BLACK,TRIM1#,4#

main45286-60941-01iFJ80,FZJ80199001-199501

BLACK,TRIM1#,4#

main45286-60947-B0iFZJ80199501-199801

BLUEISH GRAY,TRIM1#

main45286-60947-E0iFZJ80199501-199801

OAK,TRIM4#

45292SEAL, MAIN SHAFT LOWER DUST

main45292-35050iFJ80,FZJ80199001-199801

45636PROTECTOR, INTERMEDIATE LINK JOINT, UPPER

main45636-60100iFJ80199001-199208

main45636-60101iFZJ80199208-199801

45637PROTECTOR, INTER LINK JOINT, LWR NO.1

main45637-60070iFJ80199001-199107

main45637-60071iFJ80,FZJ80199107-199801

45804CWASHER, PLATE(FOR STEERING TILT LEVER)

main90201-06019iFJ80,FZJ80199001-199401

main94614-10600iFZJ80199401-199801

45805BBUSH(FOR TILT STEERING SUPPORT)

main90386-06031×2iFJ80199001-199007

45819RETAINER, TILT LEVER

main45819-22040×2iFJ80,FZJ80199001-199301

main45819-22060×2iFZJ80199301-199801

45820SPRING ASSY, TILT STEERING SUPPORT

main45820-35010iFJ80,FZJ80199007-199801

45826LEVER, STEERING TILT

main45826-22050iFJ80,FZJ80199001-199801

45826ASPRING, TENSION(FOR STEERING TILT LEVER)

main90507-08010iFJ80,FZJ80199001-199801

45827ALEVER, STEERING TILT SUB

main45827-22030iFJ80,FZJ80199001-199801

45831BOLT, TILT LEVER LOCK, NO.1

main45831-22020iFJ80,FZJ80199001-199801

45856BOLT, TILT STEERING, NO.2

main45856-22010×2iFJ80,FZJ80199001-199801

OD=9.989-9.998

45865COLLAR, STEERING MAIN SHAFT

main45865-12050iFJ80,FZJ80199001-199306

main45865-12060iFZJ80199306-199801

45866ASTOPPER, STEERING MAIN SHAFT BUSH

main45866-12010iFJ80,FZJ80199001-199306

45870TUBE ASSY, STEERING COLUMN

main45870-60070iFJ80,FZJ80199001-199501

main45870-60120iFZJ80199501-199801

45880LEVER ASSY, STEERING TILT

main45880-60010iFJ80,FZJ80199001-199501

main45880-60011iFZJ80199501-199801

45890APAWL ASSY, TILT STEERING

main45890-20110iFJ80,FZJ80199001-199801

RH

main45890-22090iFJ80,FZJ80199001-199801

LH

45890DSPRING, TENSION(FOR TILT STEERING PAWL ASSY)

main90507-07003iFJ80,FZJ80199001-199801

45893BSPRING, TENSION(FOR TILT STEERING PAWL STOPPER)

main90507-12035iFJ80,FZJ80199001-199801

45893CSTOPPER, STEERING PAWL, RH

main45893-22030iFJ80,FZJ80199001-199801

MARK 1

main45893-22040iFJ80,FZJ80199001-199801

MARK 2

main45893-22050iFJ80,FZJ80199001-199801

MARK 3

main45893-22060iFJ80,FZJ80199001-199801

MARK 4

main45893-22070iFJ80,FZJ80199001-199801

MARK 5

45893DSTOPPER, STEERING PAWL, LH

main45893-22080iFJ80,FZJ80199001-199801

MARK A

main45893-22090iFJ80,FZJ80199001-199801

MARK B

main45893-22100iFJ80,FZJ80199001-199801

MARK C

main45893-22110iFJ80,FZJ80199001-199801

MARK D

main45893-22120iFJ80,FZJ80199001-199801

MARK E

45897BOLT, STEERING LOCK SET

main45897-60010×2iFJ80,FZJ80199001-199801

9010108230

main90101-08230

9010906162

main90109-06162

9011906065

main90119-06065

9011906448

main90119-06448

9011908560

main90119-08560

9011908701

main90119-08701

9011910532

main90119-10532

9016450048

main90164-50048

9017008008

main90170-08008

9017910055

main90179-10055

9017910065

main90179-10065

9161160814

main91611-60814

9161160820

main91611-60820

9331514010

main93315-14010

9338515010

main93385-15010

9411040600

main94110-40600

9451200600

main94512-00600

9451200800

main94512-00800

9461110800

main94611-10800

9616000800

main96160-00800

59 parts on this diagram · 1 diagram in section
